Einleitung
This guide will show how to replace the screen on your HP Pavilion 17-e146us. A working laptop screen is necessary to use a HP Pavilion 17-e146u and replacing the screen will ensure its continued use.
Replacing the screen could cause damage to the motherboard, so remove with caution. For more information on the causes of a faulty screen, please see our troubleshooting page.
-
-
Open the laptop.
-

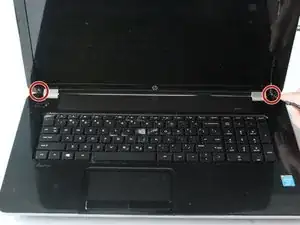

Remove the two stickers on the lower left and right-hand corner of the laptop screen.
-
-
-

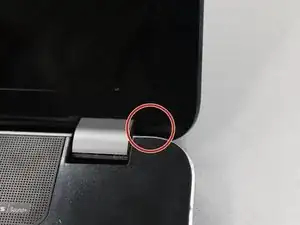

Using a Phillips #0 screwdriver, remove the two 5 mm screws in the lower left and right-hand corner of the laptop screen.
-
-
-

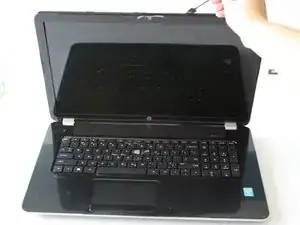

Place a spudger or opening tool between the laptop screen and the plastic laptop frame.
-
Apply light pressure to the spudger to separate the plastic laptop frame covering the edges of the laptop screen.
-

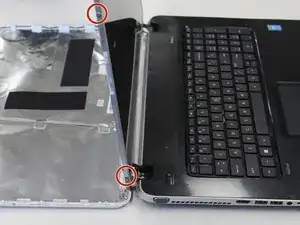

These silver pieces cover the laptop hinges and will need to be removed as well.
-
-
-

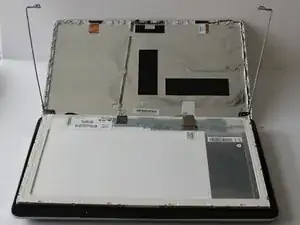

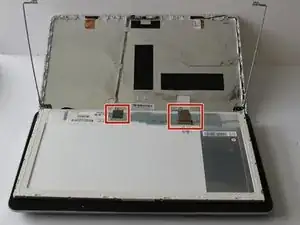

Using a Phillips #0 screwdriver, remove the four 4 mm screws in each corner of the laptop screen.
-
-
-

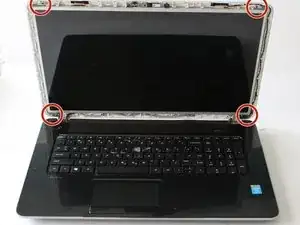

Using a Phillips #0 screwdriver, remove the four 3 mm screws on the side of the frame, one in each corner.
-

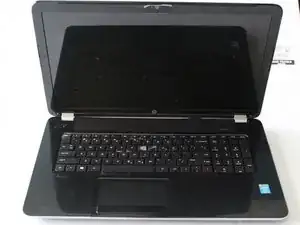

To reassemble your device, follow these instructions in reverse order.
