HP Pavilion 17-f127ds Keyboard Replacement

Geschrieben von: Alissa Tu
  • Kommentare: 1
HP Pavilion 17-f127ds Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

4 - 6 Minuten

Einleitung

The HP Pavilion 17-f127ds, is a standard “QWERTY” keyboard, if there is a malfunction or if you need to use a different language keyboard, you will need to remove the keyboard manually, this guide will assist you in the matter.

  1. OifQMKQFmZdKBqo4
    OifQMKQFmZdKBqo4
    cZKptNGv3cqv6UUM
    myywF3qfkujdGUrm

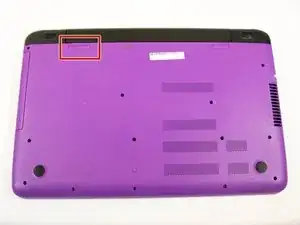

    • Before starting, please turn off your laptop.

    • Slide the battery lock latch, the latch on the left, inwards.

    • Slide the battery release latch on the right inwards to release the battery.

    • The latch may require significant force to slide.

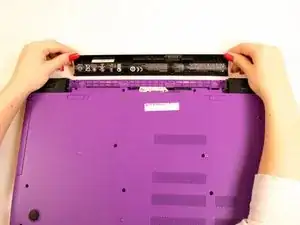

    • Lift the battery up and remove it from computer.

  2. 5kLHVlIXYXtmMFRn
    5kLHVlIXYXtmMFRn
    t2i2v2KBuTlcejdQ

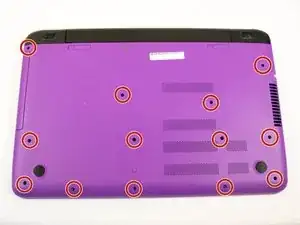

    • Flip your laptop over on a firm surface.

    • Using a Phillips #1 screwdriver, remove the thirteen screws on the back of your laptop.

    • Flip your laptop back over.

    These instructions miss \*8\* screws.

    The Optical Drive must be removed.
    Under the Optical drive are 2 silver screws which must be removed with a #0 Phillips
    Where the battery was removed, there is 1 black screw at each end holding down the black foot mounts beside the battery area.
    You must also, using a spudging tool, remove the rubber feet on each side of the battery area.
    Under each rubber foot is 1 phillips screw to be removed. (total 2)
    Then, using a spudging tool, the black foot mounts must be removed.
    Under each black foot mount, there is 1 #1 phillips screw to remove. (total 2)
    Now the keyboard can actually be removed in the next step without breaking it.

    Wayne Walker -

  3. ruhQQJaUDFYgSHc6
    ruhQQJaUDFYgSHc6
    QRu4dIuQA4jbMYeE
    YNnWRoNY5QtJ2GJO

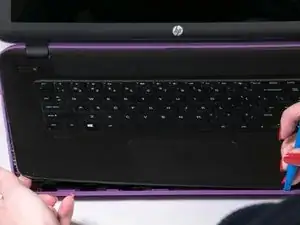

    • Using the opening tools, separate the keyboard from the laptop by prying it from the base along the sides of the laptop.

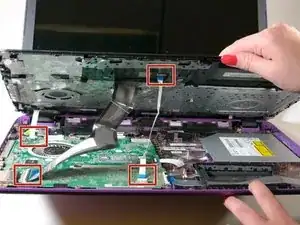

    • With your fingers, disconnect the keyboard connector and the connector cable from the motherboard.

    • Be careful not to lift the keyboard too high because it might rip off the connectors.

    • Carefully remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
