HP Pavilion 17-g119dx Fan Replacement

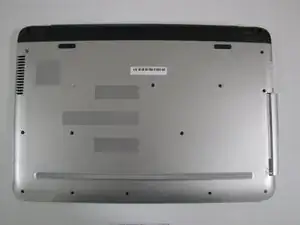

Close your laptop and turn it over so that the bottom is facing up.

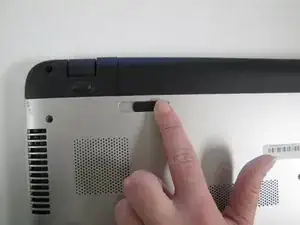

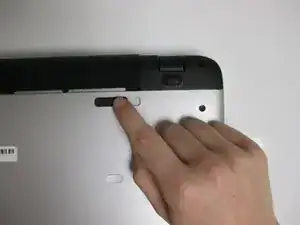

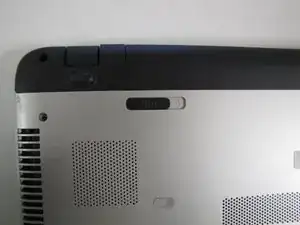

In the upper left hand corner, slide the bar with the lock icon to the right. This will unlock the battery.

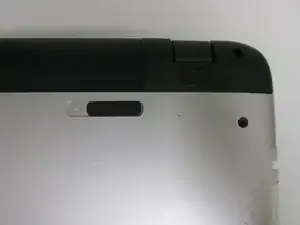

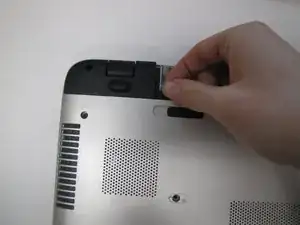

Slide the bar with the battery icon, on the right of your laptop, to the left to release the battery.

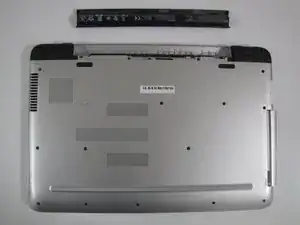

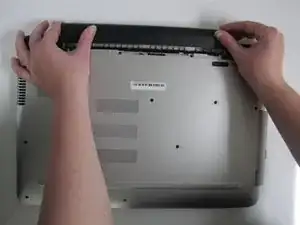

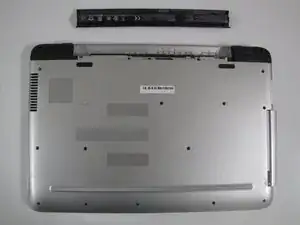

Grab the battery and remove it from the laptop.

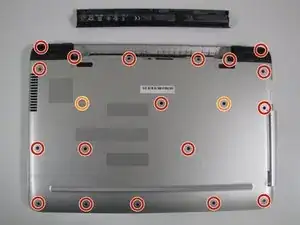

Remove the twenty 6.5mm screws using the Phillips #00 screwdriver.

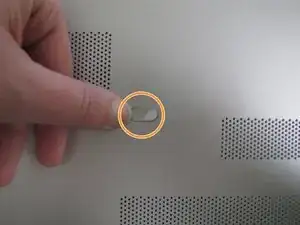

Two of these 6.5 mm screws are covered by a silver sticker. Remove the sticker by gently scraping your finger nail under the sticker and then remove the screws.

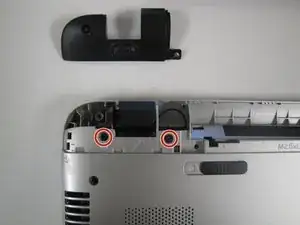

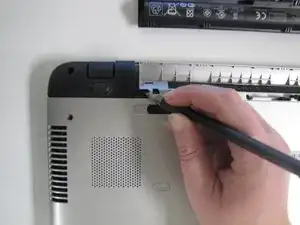

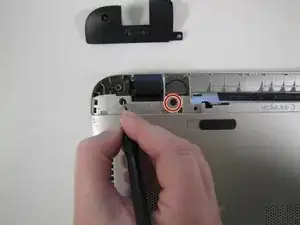

Remove the black corner covers on either side of the battery to reveal four additional 6.5 mm Phillips #00 screws.

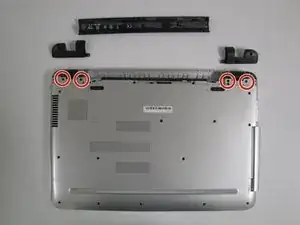

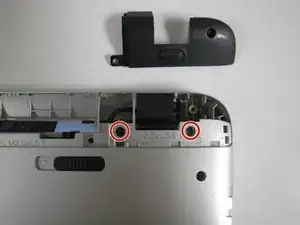

Remove the four 6.5 mm Phillips #00 screws that were underneath the black corner covers.

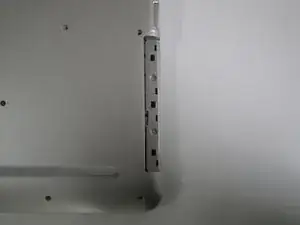

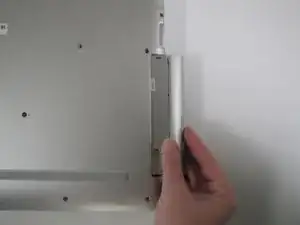

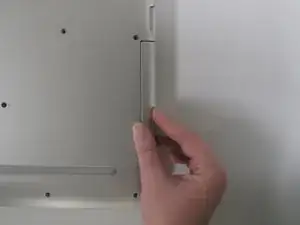

On the right-hand corner of the laptop, remove the CD-ROM by pressing the small button on the side. Pull it out of the laptop, and set it to the side.

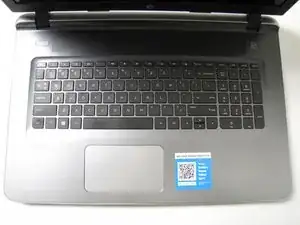

Flip the computer back over with the screen facing up and open the laptop.

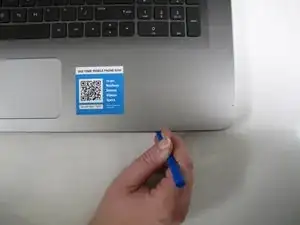

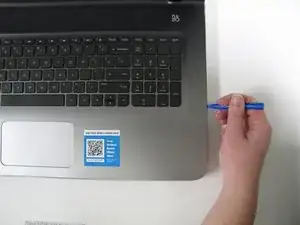

Use the Plastic Opening Tool to separate the face plate from the backing.

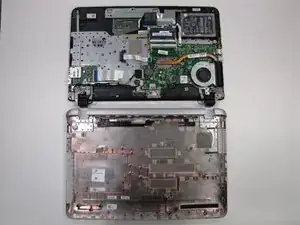

After running the opening tool along the sides, you can pop the keyboard open to access the fan.

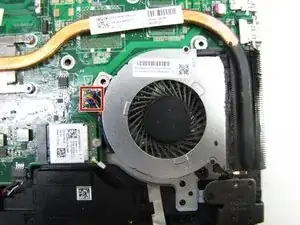

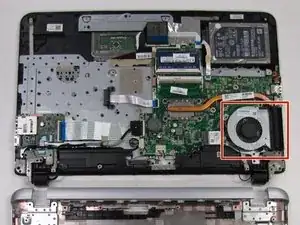

The fan is located in the lower right corner and is next to the motherboard.

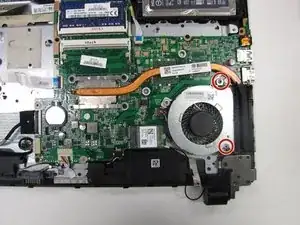

Unscrew the two 0.5 mm screws using a Phillips #00 screwdriver.

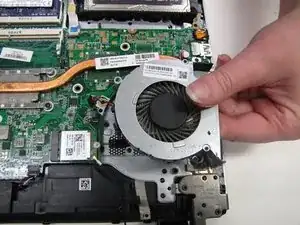

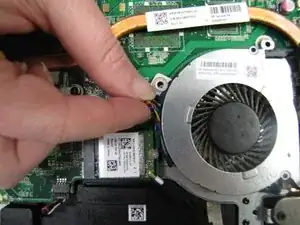

The fan is connected to the motherboard by a cable. To disconnect the fan, gently push in the sides of the connecter to lift the base of the cable out of the port.
