HP Pavilion 17-g119dx RAM Replacement

Geschrieben von: Morgan Best
  • Kommentare: 5
HP Pavilion 17-g119dx RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace the random access memory card or RAM in your laptop. To perform the replacement, you will need a Phillips head screwdriver and a plastic opening tool to pop open the keyboard.

  1. 5fFOqVXpLihmrALp

    • Close your laptop and turn it over so that the bottom is facing up.

    Stap 1 gedaan

    Willem Zweedyk -

  2. pwOC3HMHUxhcUmPk
    pwOC3HMHUxhcUmPk
    bMbUREW4PNQcHbIB

    • In the upper left hand corner, slide the bar with the lock icon to the right. This will unlock the battery.

    Stap twee gedaan

    Willem Zweedyk -

  3. tlKV4YQKVARNBV3D
    tlKV4YQKVARNBV3D
    IxlZdHdhOa5oXmGy

    • Slide the bar with the battery icon, on the right of your laptop, to the left to release the battery.

    Stap drie gedaan

    Willem Zweedyk -

  4. ZLqBxgNyaVbqIeRI
    ZLqBxgNyaVbqIeRI
    FPAMXxZkIyDDMZnW

    • Grab the battery and remove it from the laptop.

    Stap 4 gedaan batterij verwijderd

    Willem Zweedyk -

  5. GyZkCdpeLsc3tvWA
    GyZkCdpeLsc3tvWA
    ZDopIaW1a2T4d1sJ
    ZPiGeFD3VpAoVAw3

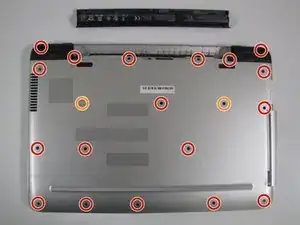

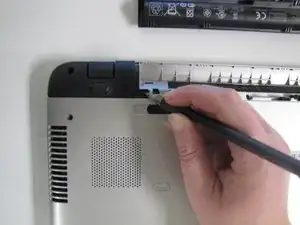

    • Remove the twenty 6.5mm screws using the Phillips #00 screwdriver.

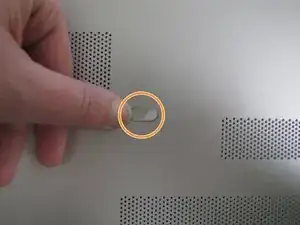

    • Two of these 6.5mm screws are covered by a silver sticker. Remove the sticker by gently scraping your finger nail under the sticker and then remove the screws.

  6. FkZX26ip2SoBUTdY
    FkZX26ip2SoBUTdY
    cHGUEBAgF5gDMUsS
    ZHaqCjQCVVIlyqqb

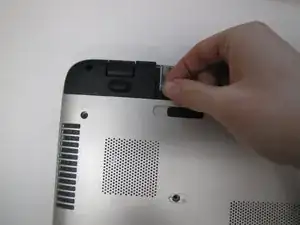

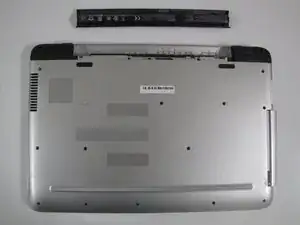

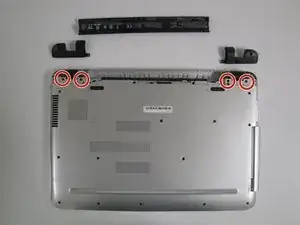

    • Remove the black corner covers on either side of the battery to reveal four additional 6.5mm Phillips #00 screws.

  7. J3trsvPTBQ45Sycs
    J3trsvPTBQ45Sycs
    C1ncnbdmS2LvsSNi
    jXSikrRliK4S1DPY

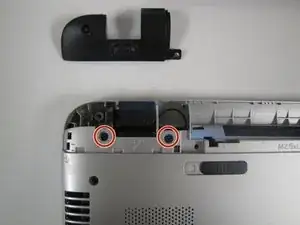

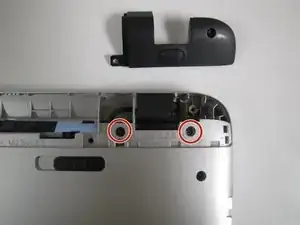

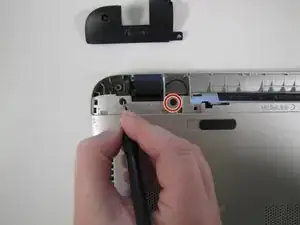

    • Remove the four 6.5mm Phillips #00 screws that were underneath the black corner covers.

  8. ZfVFJw2dbUQsXln2
    ZfVFJw2dbUQsXln2
    cuMRGiWURgwbgUcn
    JR1BPUPZfagyXTSn

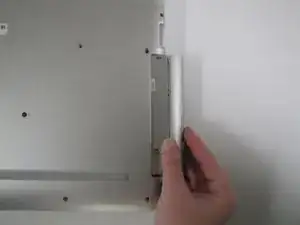

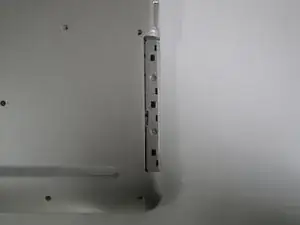

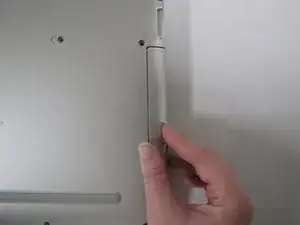

    • On the right-hand corner of the laptop, remove the CD-ROM by pressing the small button on the side. Pull it out of the laptop, and set it to the side.

  9. EpfCLd3E3IHArP2W
    EpfCLd3E3IHArP2W
    SdXrOmtudwmWYZ3p
    nWSSBtmIoAgFopfQ

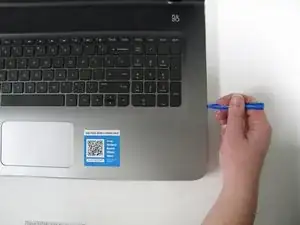

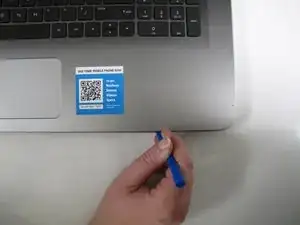

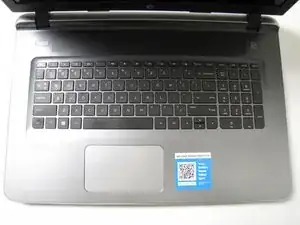

    • Make sure that all screws and the CD-ROM Drive are removed before trying to complete this step to prevent damaging your laptop. During this step, you will likely hear loud crackling noises. This is normal.

    • Flip the computer back over with the screen facing up and open the laptop.

    • Use the Plastic Opening Tool to separate the face plate from the backing.

  10. 1PiT6LJM2NZUwBWn
    1PiT6LJM2NZUwBWn
    gjWlq1KbP2cDuItk

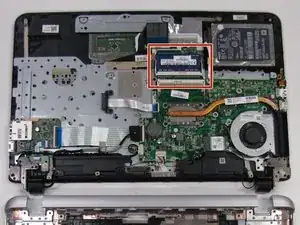

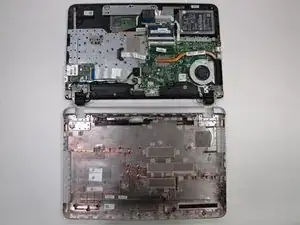

    • After running the Plastic Opening Tool along the sides, you can gently lift the keyboard up and on top of the screen to access the RAM.

    • The RAM will be located above the Motherboard and next to the Processor.

  11. NB6hYyDUuGZ1tvIs
    NB6hYyDUuGZ1tvIs
    owwIM1jrh2GwcxXP

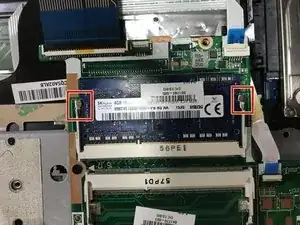

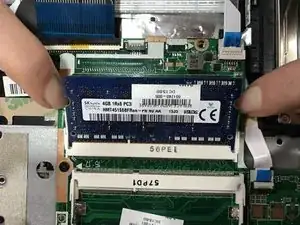

    • Release the RAM by pulling the two white levers away from the sides of the RAM.

  12. ZZA6l1lxgEpIIVTn

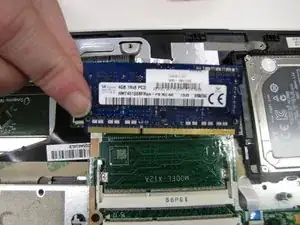

    • Pull the RAM up and out of the laptop to remove it.

    • When reassembling, be sure to insert the RAM at the same angle it came out. Then push it down into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
