HP Pavilion 17-g192dx Screen Replacement

Geschrieben von: Dominic Perito
  • Kommentare: 6
HP Pavilion 17-g192dx Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

25 - 30 Minuten

Einleitung

This Guide covers how to replace the 17.3 in display on the Hp Pavilion. Only replace if it is beyond repair and required.

  1. 2Wl2WeaUL2v2ebBQ
    2Wl2WeaUL2v2ebBQ
    jvv2S4ymsKTCUANk
    SJpg2aSwjZRFYFry

    • Turn off the laptop.

    • Slide the battery lock to the right until you see the open lock symbol.

  2. LDrohS2LUBDBpkr3

    • Slide the battery release to the left until the battery pops up.

    • This may require significant force.

  3. AIoKqAmoGuVGCjqK
    AIoKqAmoGuVGCjqK
    vPxYNoxbOxdUdYBX

    • Lift the battery up.

  4. WNkrBVWQbCIOMxXq
    WNkrBVWQbCIOMxXq
    ebno5XSbPktLwhDq

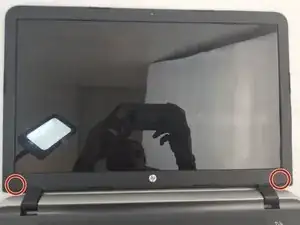

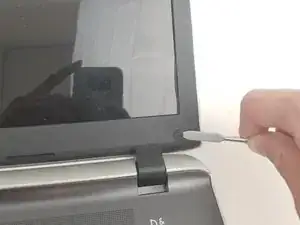

    • Using the metal spudger, remove the 2 plastic screw covers at the bottom corners of the screen.

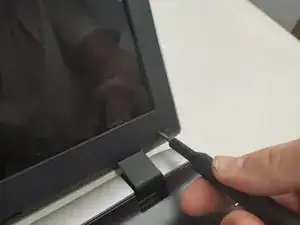

  5. pTOAuMUFMgdyaOn2

    • Remove the two 7mm screws with a Philips #00 screwdriver.

    Instead of making a note, just include the head in all steps with screws.

    Alex Watkins -

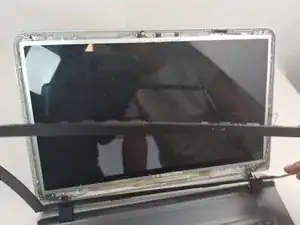

  6. tRXTVmlqXXid4C6f
    tRXTVmlqXXid4C6f
    kkBuF2mHPahEGrE4
    RDFaFINJtAaUmEc5

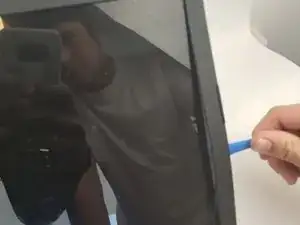

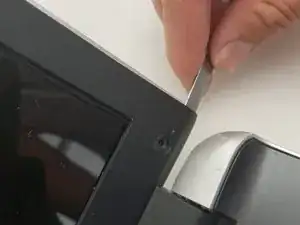

    • Use a plastic opening tool to remove the plastic cover surrounding the screen by running the tool around the edge.

    • It may be helpful to start with the metal spudger then transition to the plastic opening tool because you will need the metal tip get in initially.

    For the information bullet—why?

    Alex Watkins -

    Can you be more specific about how to use the pry tool? Should the user run the tool around the edge?

    Alex Watkins -

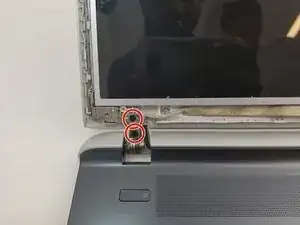

  7. rRGxVJQTQXL6lTTt
    rRGxVJQTQXL6lTTt
    PIXZ2OAaZ4KoDYwv
    rf1Fb6wlOFgV1Rwh

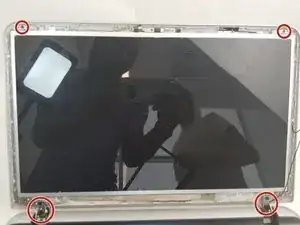

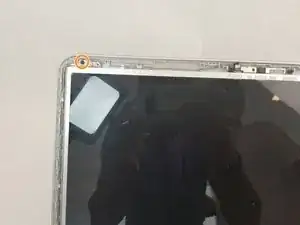

    • Remove the four 4 mm screws holding the back to the display assembly with a Philips #00 screwdriver.

    • Remove the two 3mm screws holding the back cover to the display assembly with a Philips #00 screwdriver.

    • Lay the cover on the workspace carefully as not to damage the wires still connected to it.

    In the first shot, I would markup where all the screws are, then replace the middle image with you unscrewing them. Proofread the caution.

    Alex Watkins -

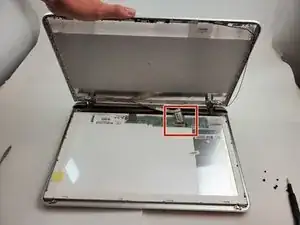

  8. oVFymcJckcXf6eaW

    • Unplug the wire connected to the display assembly by gently pulling on it.

    • Tape may be holding it in place.

    Is there a specific procedure for unplugging the wire?

    Alex Watkins -

  9. mhdgTT1ZHjXQSYDr
    mhdgTT1ZHjXQSYDr
    HFyAMBU4ieBQY4ht

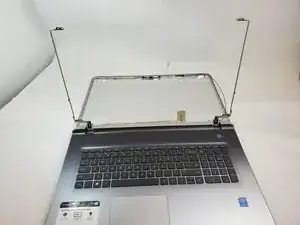

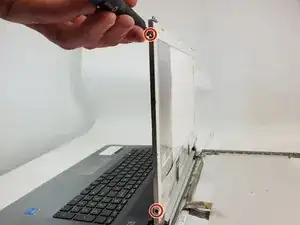

    • Remove the four 3mm screws connecting the display assembly to the metal framework with a Philips #00 screwdriver.

    • It may be helpful to have someone else support the screen while you remove it.

    Make sure to write the note in a complete sentence.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
