HP Pavilion 17-x047na RAM Replacement

Geschrieben von: Khaise Brice
  • Kommentare: 0
HP Pavilion 17-x047na RAM Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will help replace the HP Pavilion 17-x047na RAM.

  1. Qc6ilB6Y1OG3FI6r
    Qc6ilB6Y1OG3FI6r
    lvSVuLuAOJydhOmx

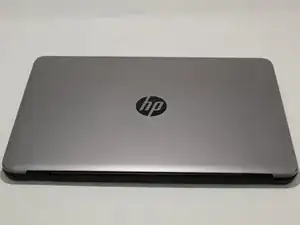

    • Turn off and unplug the laptop before replacing the battery.

    • The netbook needs to be top-side down with the lid closed.

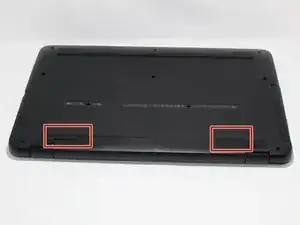

    • Slide the plastic battery release latches towards the lock symbols.

  2. DYU1pWFVDxxi5vnE

    • Slide the battery out from the laptop.

  3. YXJeKmy5etUIxnQ3
    YXJeKmy5etUIxnQ3
    PjG5yiaIHuAXHywL

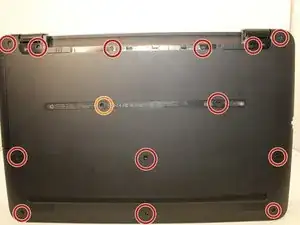

    • Using a Phillips #0 screwdriver, remove thirteen 7.0 mm screws from the back case.

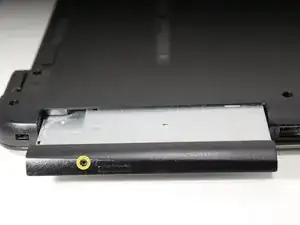

    • Using a Phillips #0 screwdriver, remove the CD/DVD drive screw.

    • Use an ejection pin to eject and remove the CD/DVD drive.

  4. xPfTCBqne2BEZ1sW
    xPfTCBqne2BEZ1sW
    QoRyXpygfG6E46YY

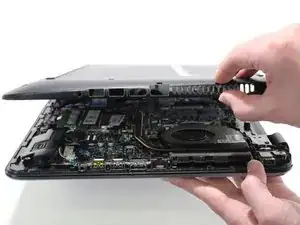

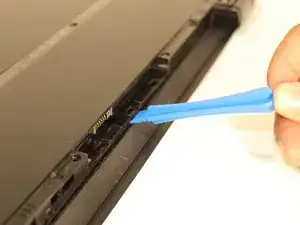

    • Use an iFixit opening tool to separate the back cover from the laptop.

    • Gently pry open the cover, trying not to break the plastic.

  5. acQXAKulvEPNWI5e

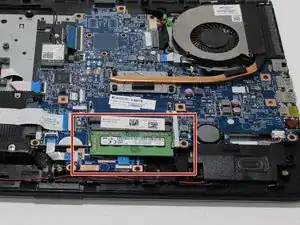

    • Locate the RAM.

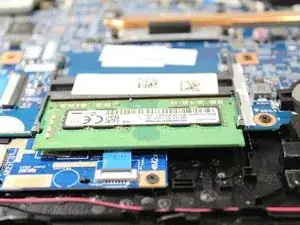

  6. 1MfbvIZ1JwNAALVc
    1MfbvIZ1JwNAALVc
    5aeeBJRBAl1FaLZo
    uiNpXxvDIwDAVtfZ

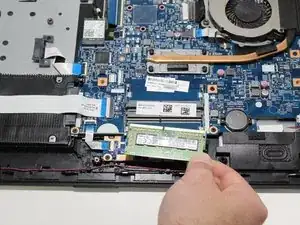

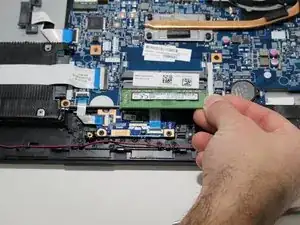

    • Pull the latches outward to the left and right, if done correctly the ram will pop upward.

    • Gently pull out the RAM from the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
