  1. RLDibL5idUiV1JLu
    • Prepare work surface by placing a clean and dry towel down on a desktop surface.

    • Place the computer face down on the towel so that the bottom of the unit is facing you.

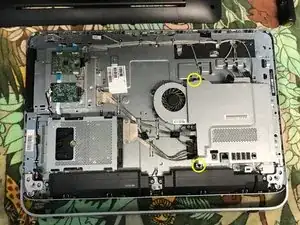

    • Loosen the two phillips head screws in the bottom left and right hand corners of the computer, as highlited by the yellow circles in the image.

    • Note that the screws will not come out, but as you loosen them, it will force the separation of the corners of the rear cover from the computer.

    • Once the screws are loosened completely, use plastic spudgers to completely separate the rear cover from the rest of the computer.

    • Use multiple spudgers to help with prying the pieces apart. Particular sticking points seem to be in the center at the top and bottom of the chassis.

  2. ryOSobeTCpT5UVOe

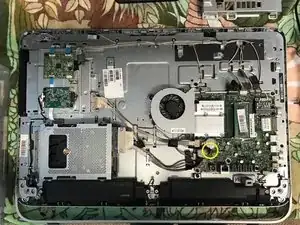

    • Remove two phillips head screws from the motherboard cover.

    • Lift up on the left side of the cover to reveal the motherboard.

    • Release the motherboard cover from the right hand side to completely remove the cover and set the cover and screws aside.

  3. cuqMZQKQTyFLmRvL
    cuqMZQKQTyFLmRvL
    fC1vrQ2NS3ACqKDt

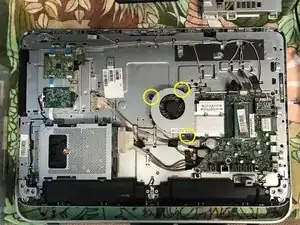

    • Using a T15 torx screwdriver, remove the three screws that hold the system fan in place.

    • Gently and carefully disconnect the three wire connector that goes from the system fan to the motherboard. The three wire colors are read, yellow, blue and they connect to a point on the motherboard labeled CN4300.

Abschluss

To reassemble your device, follow these instructions in reverse order.
