HP Pavilion DM3-3010US Hard Drive Replacement

Geschrieben von: Somesh Rai
  • Kommentare: 0
HP Pavilion DM3-3010US Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Hard drives are prone to failure, causing computer files to become inaccessible. This guide will explain how to replace a defective hard drive in the HP Pavilion DM3-3010US.

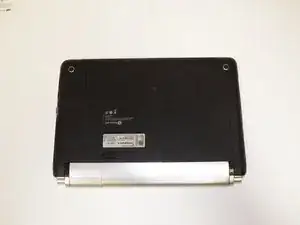

  1. nSW5olTNutDI2uyN

    • Flip laptop over to back with the battery facing downwards.

    • The battery is the silver cylinder located on the bottom of the laptop.

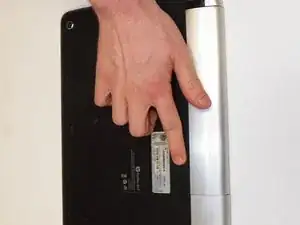

  2. RSU6yFskgUY4GvJB

    • Locate switch for battery ejection.

    • Battery ejection switch is located just above the left side of the battery.

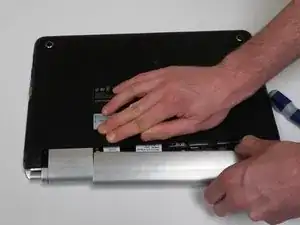

  3. Eq5D6ovdsanLo1RS

    • Remove battery by sliding the battery ejection switch to the right and pulling the battery away from the laptop.

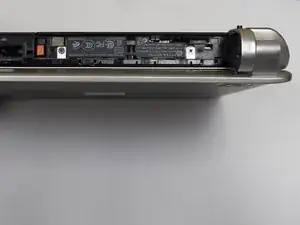

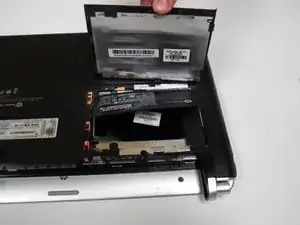

  4. sD3uWGMwJP6whV5p
    sD3uWGMwJP6whV5p
    dXLXGujCPpYFZEpq

    • Using a plastic opening tool, remove the large square casing located on the bottom right side of the laptop.

    • The hard drive will be visible once the casing has been removed.

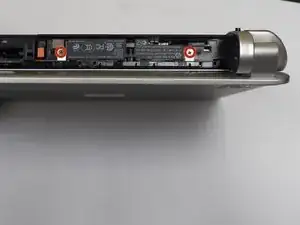

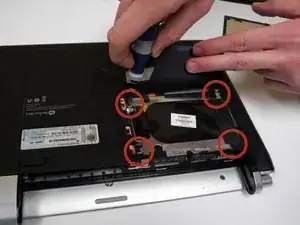

  5. MnevAXIxfyrujpo4
    MnevAXIxfyrujpo4
    XJsbDsaqaOnSE3jn

    • Using a Phillips #0 Screwdriver, remove each of the six Phillips #0 screws.

    • Four screws are located on each corner of the hard-drive.

    • Two screws are located on the right side of the battery slot.

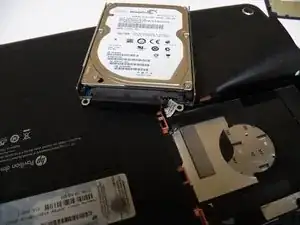

  6. 3mouUTfLqgMZDwx1

    • Remove old hard drive from its slot and replace with new hard drive, sticker side facing up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
