Einleitung

Werkzeuge

  1. JYoKDTSvtIFkiHNQ
    • Flip laptop to bottom side and locate the battery eject switch.

  2. 5Jt2AVsJ2fyfirC1

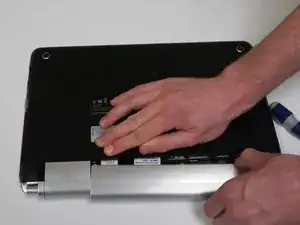

    • Slide switch inward, then pull the battery away from its slot.

    • Once free, place the battery to the side.

  3. ppHyugAOvRIjtdpu

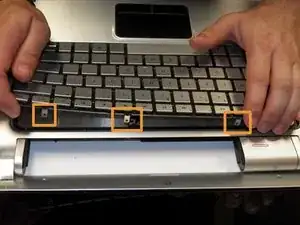

    • Flip the laptop over and open it so the keyboard is visible.

    • Using a spudger, gently pry the keyboard away from the laptop using the three indicated markers.

    • Continue gently pulling the keyboard away from the laptop until it completely detaches.

  4. wJTOYhtNr4TWqbR1
    wJTOYhtNr4TWqbR1
    PfttbFBIRfaDmWQG

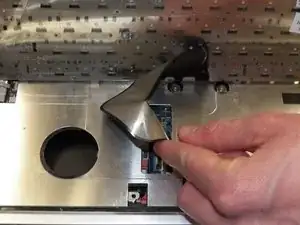

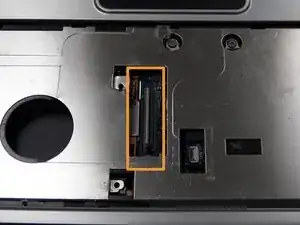

    • Once the keyboard is completely detached, locate the ribbon housing inside the laptop.

    • Gently pull the ribbon cable from the connector housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
