HP Pavilion DV2160BR DVD±RW Drive Replacement

Geschrieben von: Brandon MacDonald
  • Kommentare: 0
HP Pavilion DV2160BR DVD±RW Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

In this guide you will learn how to remove the DVD±RW Drive from an HP Pavilion DV2160BR.

  1. U3aBNhAO5HIi3cVm

    • Start with the bottom of the laptop facing up.

  2. XisaIxZ31LTxWmFb
    XisaIxZ31LTxWmFb
    LxGBwZ6RMrjvoxkV

    • Locate the battery compartment at the rear of the device.

    • There is a slider button located under the left side of the battery compartment. It is indicated by a battery symbol. Move the slider to the left and lift the battery out.

  3. g5rI6RqDNN6MnoZf

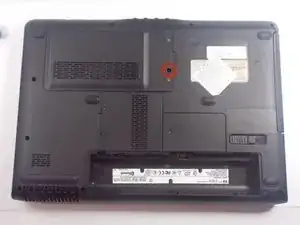

    • Locate the locking screw which is located in a recessed hole on the underside of the laptop.

    • Remove the M2.5X3-Lg #1 Phillips screw.

  4. TTN4gfTnhd6GVdXm
    TTN4gfTnhd6GVdXm
    YR3atllAxhWdi2IS

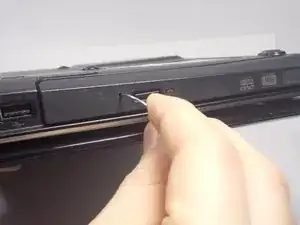

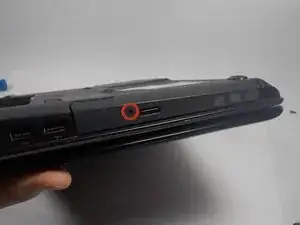

    • Locate the CD drive tray release hole on the front of the drive.

    • Straighten a paper clip and push it gently into the CD drive tray release hole.

    • The drive tray will pop open.

  5. CCEmJFMTsSoRVBkk

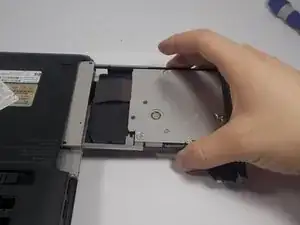

    • Grasp the side edges of the drive tray.

    • Gently pull the drive from the laptop.

  6. a5XrPFgcNANcGuxG

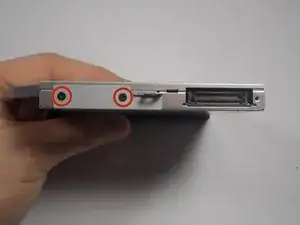

    • Locate the mounting bracket which is attached to the back of the drive.

    • Remove the two M2x3-Lg #0 Phillips screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
