Einleitung

Use this guide to replace a broken display assembly.

  1. U3aBNhAO5HIi3cVm
    • Start with the bottom of the laptop facing up.

  2. XisaIxZ31LTxWmFb
    XisaIxZ31LTxWmFb
    LxGBwZ6RMrjvoxkV
    • Locate the battery compartment at the rear of the device.

    • There is a slider button located under the left side of the battery compartment. It is indicated by a battery symbol. Move the slider to the left and lift the battery out.

  3. dKsHv1RNyUrgPNbW
    • Start with the laptop sitting up and in the open position.

  4. Yg6odAkpwnlanYFW
    Yg6odAkpwnlanYFW
    MfLpqnoXLxVyPyYJ
    CfgnPoeBaFnOWRSr

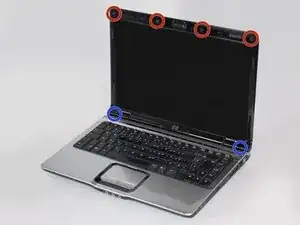

    • Remove the 6 rubber screw covers and screws, found around the edge of the laptop screen, surrounded in red and blue.

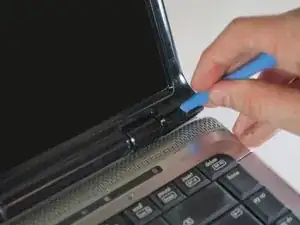

    • Use the plastic opener tools to remove the screw covers. Just apply firm pressure to the edges to pop the screw covers out, they are attached with a light adhesive.

    • There are four 2.5mm X 4mm-L Phillips #0 screws along the top.

    • There are two 2.5mm X 8mm-L Phillips #1 screws along the bottom.

  5. ShvubGoUfQNlwDOl
    ShvubGoUfQNlwDOl
    kj4u1k6gePSEaeRb

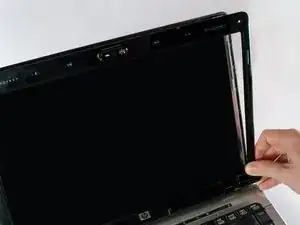

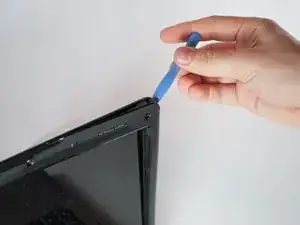

    • Now we must remove the plastic panel.

    • Slide a plastic opener tool along the outside edges of the front screen panel, separating it from the screen. You may need to apply some firm pressure.

    • Once the panel is separated from the screen, gently pull it off and set it aside.

  6. swaBVB6SqCVQ2hfu
    swaBVB6SqCVQ2hfu
    lakgmZuGOCYF3MZS

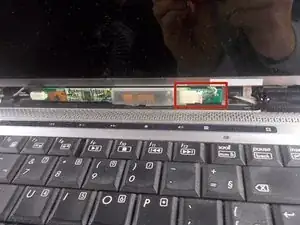

    • Locate the inverter at the bottom of the screen.

    • Disconnect the back light plug cable on the right side of the inverter by holding the inverter in place and pulling firmly on the connector.

  7. bLnNBYEXQH1BOPji
    bLnNBYEXQH1BOPji
    ZDyrfXlR1qJPXMkP

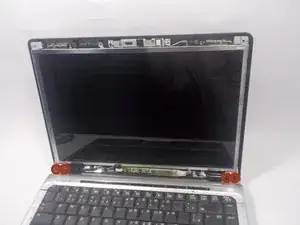

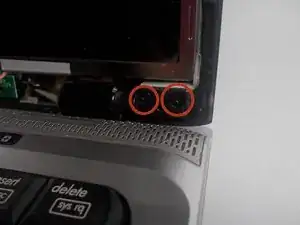

    • Now remove the final four screws holding the screen in place.

    • Remove the four 2.5mm X 6mm-L Phillips #0 screws from the lower left and right hand sides of the screen.

    • Be aware that the screen is now loose and can fall backwards.

  8. YQLfQkLgmKP5ZPaD
    YQLfQkLgmKP5ZPaD
    GJSPXYROWMPyvVOY
    vRDj6ANREhjUHgKd

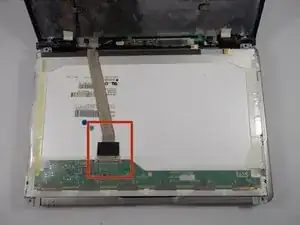

    • Remove the screen from the back screen panel.

    • Set the screen facing down gently onto the keyboard.

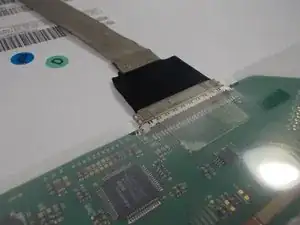

    • Now that the screen is placed face down onto the keyboard we are going to remove the wire connecting the screen to the device.

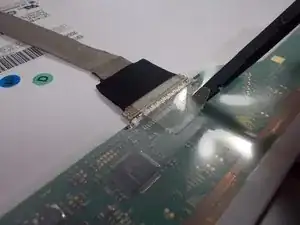

    • The wire is held on by an adhesive tape that must be lifted with the spudger tool.

    • Once the tape is lifted, slide your finger under and gently pull up the rest of the tape to free the wire.

    • Gently pull the wire towards the back of the device and the screen will now be free.

  9. CYaRmmeFWvYqWUTo
    CYaRmmeFWvYqWUTo
    dZmIfwufFdVMSMEJ

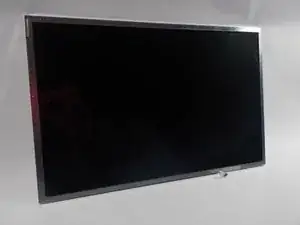

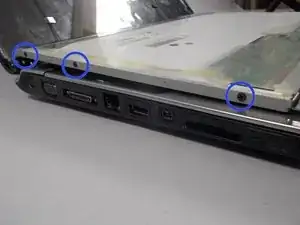

    • Finally we must remove the metal mounting hardware attached to the screen.

    • Remove the six 2mm X 3mm-L Phillips #0 screws.

    • There are three on each side of the display

    • Set aside the metal hardware and your display is now separated from the device!

Abschluss

To reassemble your device, follow these instructions in reverse order.
