HP Pavilion DV2913CL Disc Drive Replacement

Geschrieben von: Jeremy Jackson
  • Kommentare: 0
HP Pavilion DV2913CL Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 - 5 Minuten

Einleitung

This guide demonstrates how to safely remove and replace the disc drive of an HP Pavilion DV2913CL Laptop in order to preserve the function of the device.

  1. 2ImMH6e1omOgZi11

    • Remove the two Phillips screws located on the back of the laptop.

  2. gEhNUxNpJDpDcWAj

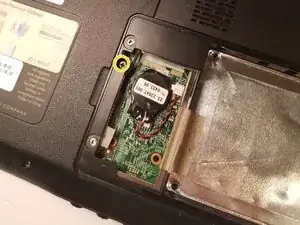

    • Remove the plastic panel to reveal a second Phillips head screw.

    • Remove the screw shown below: this holds the disc drive in place.

  3. 1JiFYrJURDVlyD2t

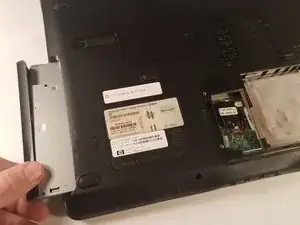

    • Slide the disc drive out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
