HP Pavilion DV5T-1000 Hard Drive Replacement

Geschrieben von: Josh Taimanglo
  • Kommentare: 1
HP Pavilion DV5T-1000 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

If your HP Pavilion DV5T-1000 laptop has a faulty hard drive, this guide will take you step-by-step in removing and replacing the original hard drive.

    • Make sure the laptop is turned off, and the power cable is removed.

    • Leaving the laptop turned on can cause damage to the hardware and any stored data.

  2. fNUCKnhoWXKpE6Gp

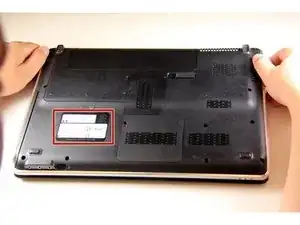

    • Turn the laptop over to access the backside of the computer.

    • Identify and confirm that the laptop is an HP Pavilion DV5T-1000.

  3. TjMWBoUG6bNoUuSk
    TjMWBoUG6bNoUuSk
    e4OhRVNB2EM6JSRn

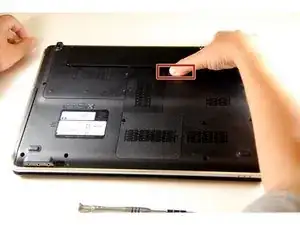

    • Slide the battery lock to the left, it's located just below the battery compartment.

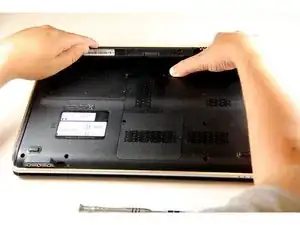

    • Pull the battery up and out, to remove it from the battery compartment.

    • To prevent hardware damage, remove the battery before working on the laptop.

  4. wCTU35ikuydLMRTH

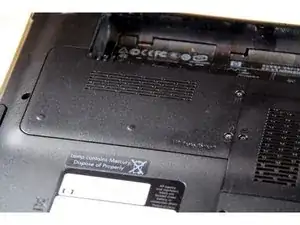

    • Identify the hard drive compartment, located at the top left-hand frame of the laptop.

  5. fbDiOTCqwkcFeqLt

    • In order to remove the hard drive compartment cover, first remove the two screws located on the panel, using a size 0 Phillips head screwdriver.

  6. EeWG6NKabPZJNccy

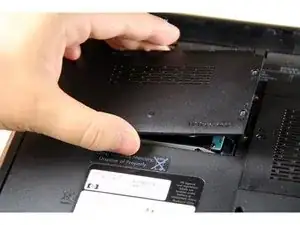

    • Expose the hard drive by lifting the drive cover.

  7. IEKdY23dGiNTBa1C

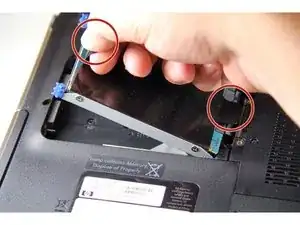

    • In order to loosen the hard drive from the motherboard, tug gently on the black tabs located at both ends of the hard drive.

    • Be cautious when handling the cable that connects the hard drive to the computer's motherboard.

  8. 4CHYV4ReWYIKKwHK
    4CHYV4ReWYIKKwHK
    nE1k1aAQ2m32ZJXP

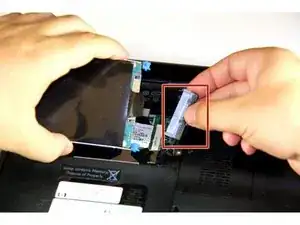

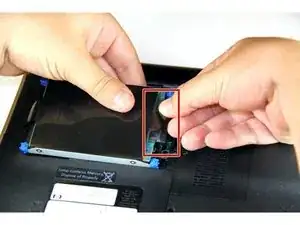

    • Firmly hold both the black plug, and the hard drive itself to separate the drive from the cable.

  9. 2CG3tl5rDZEeoVTp
    2CG3tl5rDZEeoVTp
    S2CUkV5VNx4cD6dB

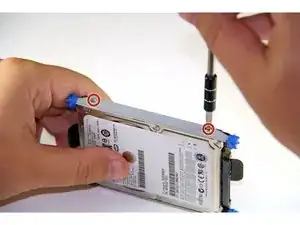

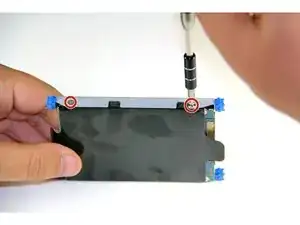

    • Remove the 4 screws using a size 0 Phillips head screwdriver.

    • Remove the metal from the perimeter of the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
