Einleitung

I'm going to replace the broken screen because my dad is not the best with technology and punched the screen.

  1. MScc64cprB3VJScN
    • Make sure the computer is shut off.

    • When you know that is shut off you may remove the battery

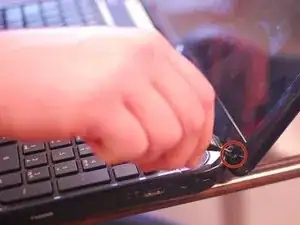

  2. TnPdAGyBagksbRZJ
    • Remove the little pieces of black sticky tape covering the screws that need to be removed in each lower corner

    needs*******

    wyatt -

  3. PBLhWrRYiAI1Ok2m

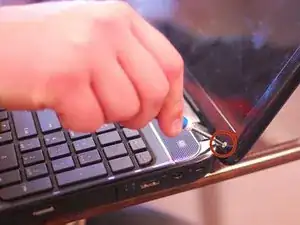

    • After the little black sticky tape is removed the two little screws at the lower corners of the screen need to be removed (place the screws on a little piece of tape).

    is gone******

    wyatt -

  4. t3sVQ6wAafxjAlsK
    t3sVQ6wAafxjAlsK
    EiSVWDgQwGdKmHUU

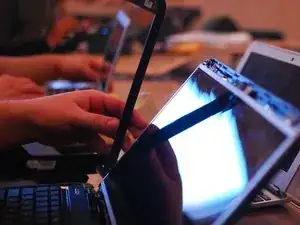

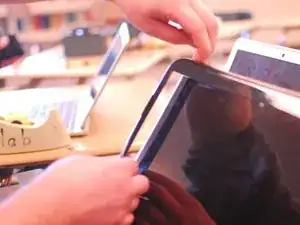

    • After removing the screws, pop out the plastic protector (can be done with your fingers).

    • Start at one corner and run your finger under the plastic and it will pop out.

  5. DLHBFS3veljG3TCB
    • On each side of the screen there are two little screws, one on top and one on bottom.

    • All four of the screws need to be removed (place the screws on a little piece of tape so they won't be lost).

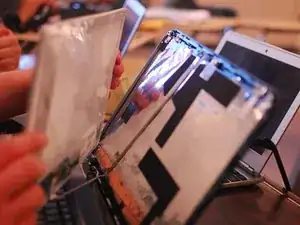

  6. CIhEJl2dPuAbUtCX
    • Once the screws are out, remove the screen and lay it on your keyboard.

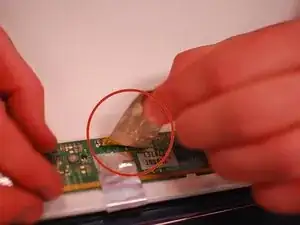

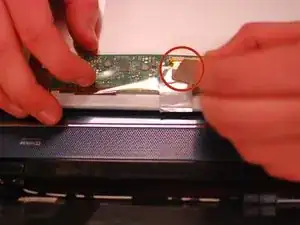

  7. iOYy6PMPP2FpgCJB
    iOYy6PMPP2FpgCJB
    sCTEM1CO6qTyVXNP
    EkGN1Ji1V1gAMruW

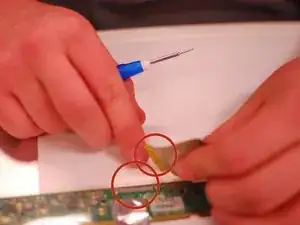

    • Once the screen is laying down you will see a connector on the back of it.

    • Pull the sticker off which pulls the connector with it.

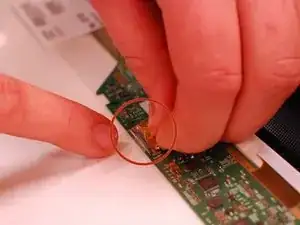

  8. JReEECotBY2RLY5S
    • After the new screen has arrived, reconnect the little connecter strip.

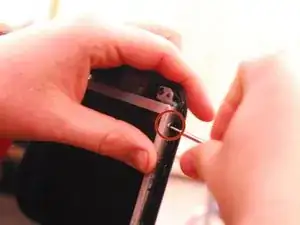

  9. 3lNsfQOPQqVBnJbT
    3lNsfQOPQqVBnJbT
    IAt3yNRDNFLJBt2u

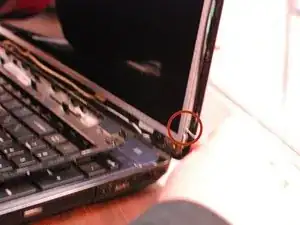

    • After the connecter has been connected place the screen back into its place.

    • Once the screen is in place put in the four little screws that go in each corner of the screen.

  10. ALcXDACJCHO1MvFM
    ALcXDACJCHO1MvFM
    yrOkCtXelfMXjFJP

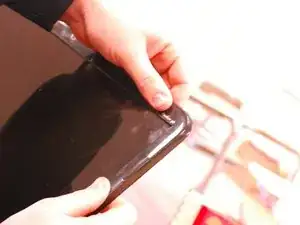

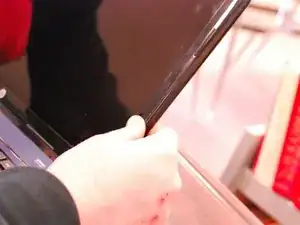

    • After the screen is screwed in place the black plastic cover back over the screen.

    • Once the black over is in place start clicking the clips back into place by just pressing with your fingers.

  11. tsjEaTZZBy4xLBxc

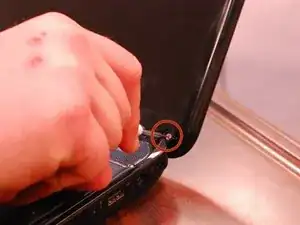

    • After the black cover is in place start to but the two little screws back in the two button corners

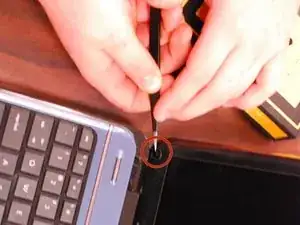

  12. eFgWRH4HIeu4p5nZ
    • After the screws are in place the little black sticker over the screws.

  13. BaWOCITKrrRuHHuA

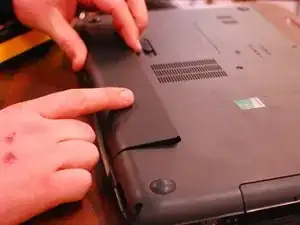

    • After the screen is in and everything is tight and in place you may but the battery back in.

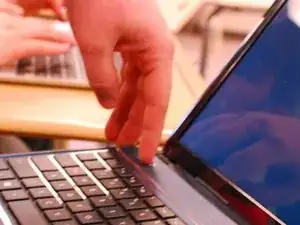

  14. ryuh6eedLIhKOkso
    • Once the battery is in place you may turn is it on and watch your screen come back to life.

Abschluss

To reassemble your device, follow these instructions in reverse order.
