Einleitung

This guide will show you how to replace the fan of the HP Pavilion G60-247CL.

  1. I5ls4yAsFHgYH2MH
    I5ls4yAsFHgYH2MH
    FRZOJ1IYCLjmOwSM
    WkNwTEpT1ZskISpW
    • Press down and to the right on the battery lock slide.

    • Once slid over to the right the battery will pop up and out.

  2. Wq2vqaYdjRKaiESr
    • Locate RAM access door on the bottom side of the laptop.

  3. 6fe3hXucpwZdLYmf
    6fe3hXucpwZdLYmf
    xvCYWqROfrYeZ63U
    urZcoJUP4B33PGxH
    • Locate the two screws holding down the RAM access door.

    • Unscrew the two screws with a size #1 Phillips screwdriver.

  4. TGb5qfDr1UotEuHJ
    TGb5qfDr1UotEuHJ
    CkLsNK14wgBPXsL6
    • Lift up on the RAM cover and remove it to reveal RAM sticks.

  5. 3VijKnYVEGCRTdEA
    3VijKnYVEGCRTdEA
    ZRpm6QMESFD622Q6
    • Gently pull apart the two metal tabs located on both sides of the stick of RAM.

  6. RPD1EJQuoZWiX2kJ
    • Gently lift the RAM stick up and out of its seat.

  7. BSROSIlZRo6PfloC
    • Repeat the previous two steps for the remaining stick of RAM.

  8. TZhvMOjLNkUgrvfi
    • Remove the seven Phillips #1 screws from the back side of the laptop.

  9. XJtiHOeBuodKirkc
    XJtiHOeBuodKirkc
    Iw6E2QBbEZF6XEnb
    • Remove the seven Phillips #0 screws from the battery compartment.

  10. Yaktk4b2vDYEJ1wJ
    Yaktk4b2vDYEJ1wJ
    O5weUsy64qyFpURO
    Elw1cJQSMOatsC1R
    • Turn the computer around to the front side.

    • Using an opening tool, prop open the keyboard casing.

  11. VQ65sqR2YjjeTUdT
    VQ65sqR2YjjeTUdT
    LHdobNVixWxwFoIB
    nJDhqHYBeINUJeLt
    • Carefully lift up the keyboard.

    • Gently pull up the connecting wire clip to completely detach the keyboard.

  12. 1swmS5o5wjxqMXFZ
    1swmS5o5wjxqMXFZ
    dIEZvwncXHSTkpqj
    LmQwoZJDGVAKRVjd
    • At the top right of the laptop there will be another wire clip holding the keyboard casing.

    • Carefully pull out the wire clip to fully detach the covering.

  13. rVWoIubJSHHA1bwI
    rVWoIubJSHHA1bwI
    qdvXXD2KsVMIRL3p
    • At the top right of the laptop remove the black wire from under the metal tabs using the tweezers.

  14. NdgvfJblbOVNI6pM
    NdgvfJblbOVNI6pM
    JkGuRdpbOyjvJaXE
    • Remove the black wire from the top right corner by gently pulling outward.

  15. LNayWSd2TIkP2Efx
    LNayWSd2TIkP2Efx
    bJYIYGPGZuIDCGQq
    • At the top left of the computer remove the black clip using the opening tool.

    • Push the opening tool to the right to pop out the clip.

  16. fg2NV2OimB5OKZIk
    fg2NV2OimB5OKZIk
    PjLQFonONMaj1XQG
    EUSIbCIWjlsdWnJd
    • Locate at the bottom left of the computer a white clip.

    • Using an opening tool, prop out the white clip.

  17. rgXTQAwRdkvKWAvK
    rgXTQAwRdkvKWAvK
    FvQXwOcnCGBSURBN
    • On the left side of the computer locate the black wire with the clear clip.

    • Gently pull the wire to the right to detach it.

  18. qwW2hcBeCBCvlS6U
    qwW2hcBeCBCvlS6U
    GJITOiktrXSKKQEw
    IqUcERHrEER62lpm
    • At the top corners of the computer, unscrew the three Phillips #0 screws.

    • Lift up the top half of the computer carefully.

  19. VZG1gKoEikcXHNSZ
    VZG1gKoEikcXHNSZ
    62Za1jwEcqpimGps
    gmbma2flrhMiIXHD
    • Locate the two screws at the bottom corners of the screen.

    • Using the tweezers remove the rubber black covering over the screw.

    • Remove the two Phillips #0 screws.

  20. iUokFZXsa2ittrGy
    iUokFZXsa2ittrGy
    4bSvGnjgMsTULeh2
    oiixflnkcWQusoYi
    • Using the opening tool, prop off the screen covering.

    • Remove the covering to expose the screen completely.

  21. CTKAevuI6rZnnSjV
    CTKAevuI6rZnnSjV
    2UaMUKvbiTa6ejMx
    JQKLpOcgVhHGby6h
    • Remove the bottom two screen bearings.

    • Using a Phillips 1 screwdriver, remove the two screws on each side.

  22. gPHEQejYIihZTXqA
    gPHEQejYIihZTXqA
    NDbGKPN1HEP1WVIO
    • Using the tweezers remove the red and white wire from the bottom of the screen.

  23. 1BF5V2gB1Z2QMuHN
    1BF5V2gB1Z2QMuHN
    AxFD1ONUv2NlcgBT
    • Prop the screen up slightly .

    • Using the tweezers unclip the white wire.

  24. yfOnIFNAt2rQwQDO
    yfOnIFNAt2rQwQDO
    kB5CSRB2OgOf4CPT
    • While the screen is still propped open remove the black wire from the bottom middle of the screen by pulling gently.

  25. nt6YsVM4ddcw1bZS
    • Remove the screen from the outer casing carefully.

  26. r3KI3V6YpiTgGaOB
    • With the battery and RAM removed, locate the hard drive access panel.

  27. MvxsHSs2iITeBUBP
    • Remove two 1.2 mm Philips#01 screws.

  28. bagTL2SjfodFZlQZ
    bagTL2SjfodFZlQZ
    hKUnDnKveLwftYrT
    • After the screws are removed, slide the hard drive panel to right to remove it.

  29. YqIsAgCrSWcfXSOE
    YqIsAgCrSWcfXSOE
    3AjXNsLngiLk4sSm
    • Identify the three screws holding the hard drives cover in place.

    • Remove each screw using a #0 Philips screwdriver to reveal the hard drive.

    • This particular laptop does not contain a hard drive-- yours will.

  30. xm1eHvpVmXlRRWP4
    xm1eHvpVmXlRRWP4
    DriqZWtJXU6mrVOt
    • Locate the storage battery, next to the hard drive.

    • Genlty pop out storage battery with fingers.

  31. Ch4pPWm3KOEcw6CI
    Ch4pPWm3KOEcw6CI
    OjIpaWEJD6NAq4eU
    • Locate the Wifi card cover panel, left of the RAM.

    • Using a Philips #1 screwdriver remove the screw holding the panel down.

  32. CFKMECYtJQpxeLyQ
    CFKMECYtJQpxeLyQ
    kM1tgVbphGCFkALa
    • Lift up on the screw side to remove the panel.

  33. YYWsTckxTjLl34GK
    YYWsTckxTjLl34GK
    hAWlF5Rb4BxUtY4g
    • Remove two 1.2 mm Philips#01 screws.

    • As the screws are removed the Wifi card will pop up.

  34. 3VFRZjDAjAaJGOg4
    3VFRZjDAjAaJGOg4
    bACZSXDGawC3UaaF
    • Remove Wifi card by pulling to the left of the laptop.

  35. SkhnMp4EsnkFspAR
    • Flip over to the top view

    • Remove five 1.2 mm Philips#00 swrews

  36. YTKWSBqrExO3yEEg
    YTKWSBqrExO3yEEg
    2ZyEXQeSpymIO1YP
    • Using a spudger unclip the casing around all corners and edges.

  37. XRoRExKsWcSHc2ag
    XRoRExKsWcSHc2ag
    wQdElVHNEvqsRQeQ
    • lift up the casing and remove to reveal the speakers.

  38. q6lSBaAdU2enQLtU
    • Remove highlighted 1.2 mm Philips #00 screw from right speaker.

  39. 4Iwdyg3XXQom3IOD
    4Iwdyg3XXQom3IOD
    f5JUHRkeIqNybffW
    • Using a spudger, remove the highlighted white wire.

  40. fTXUrpfKBoPsSFAA
    fTXUrpfKBoPsSFAA
    OtSxXBMFVpIF6xIP
    ZUAVuBrxSUT5BsgM
    • Using a spudger, remove both additional highlighted wires from the motherboad.

  41. lHseVo16EniTE2v6
    lHseVo16EniTE2v6
    RPilNoZlFxbexOee
    ZENYJF33SAWV5SA1
    • Lift up and out each speaker from the base.

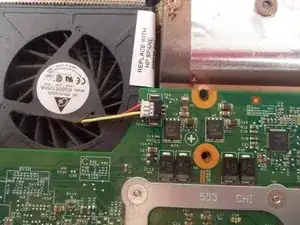

  42. RvDImi3UobWfW4E1
    RvDImi3UobWfW4E1
    SHL4bqYMtc3vAnqd

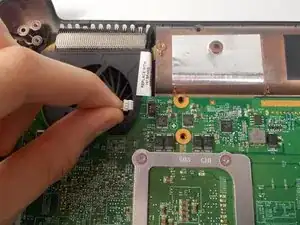

    • Locate the fan in the top left corner.

    • Carefully remove the wire attached to the mother board, using a spudger.

  43. BexoLfnBKajdnK1D

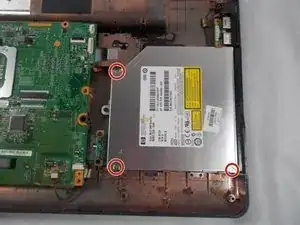

    • Locate the disk player in the bottom right corner.

    • Remove three Philips #00 screws.

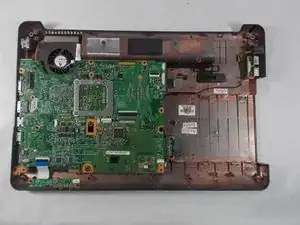

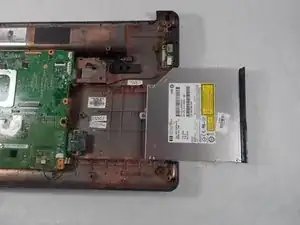

  44. 2ExgSrjkQVjsPsNc
    2ExgSrjkQVjsPsNc
    pqKhDqpaoyiAAXZ4
    kPNamYc1avZUZWcq

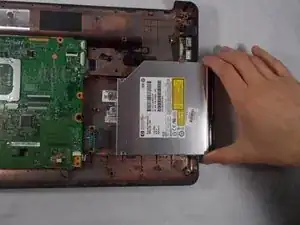

    • Slide out the disk player to the right.

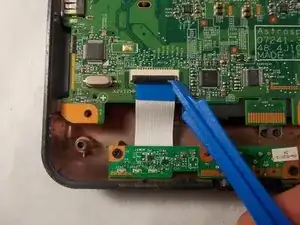

  45. pIULncdZLChnAXSo
    pIULncdZLChnAXSo
    XJSkkM3HLULSJKDd

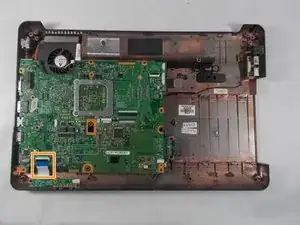

    • Gently remove highlighted wire using a spudger.

  46. K4Dve3Dyir1SXSG1
    K4Dve3Dyir1SXSG1
    J5efLQGKMfxKwoAI
    SrtFMdAIwwKXwWIR

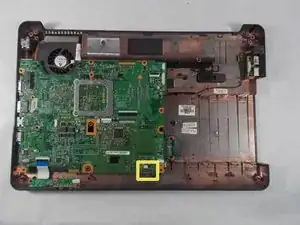

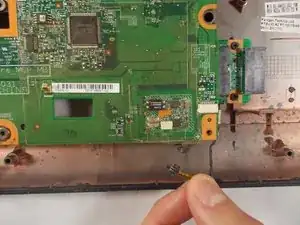

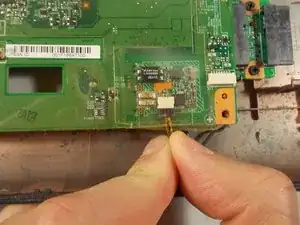

    • Remove highlighted wire connected to motherboard by gently yanking downwards.

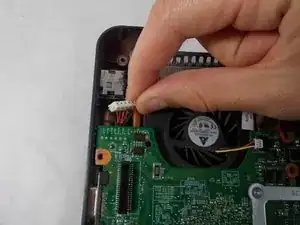

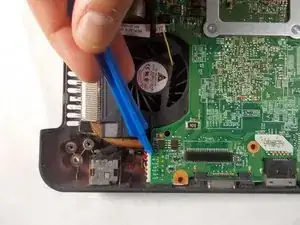

  47. NSnTespWqkI5lISa
    NSnTespWqkI5lISa
    oZLG1Fn36fr5QmCW
    PliCeIpFRV2dsJGm

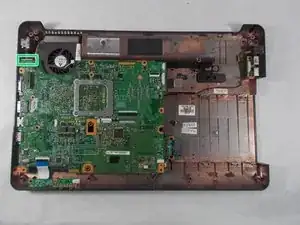

    • Remove last highlighted wire connected to the motherboard, using a spudger.

  48. mhHgK1SNejlhQxpN
    mhHgK1SNejlhQxpN
    JuC4x5RcEM4S2aIe

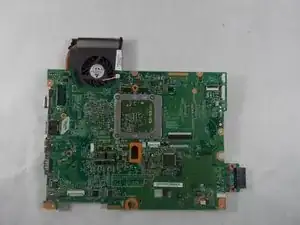

    • Gently remove motherboard with fan from the shell.

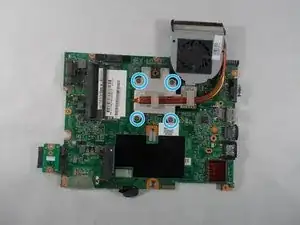

  49. Lk3kca4NPbtUixCl
    Lk3kca4NPbtUixCl
    HMFBwaT5RdipWCy4
    • Flip over the motherboard to view the back side.

    • Remove four 1.6 mm Philips #01 screws.

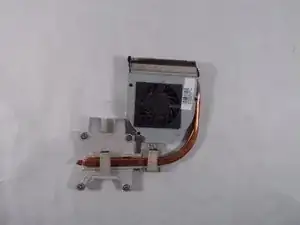

  50. a3FolKZmdTrbxW3m
    a3FolKZmdTrbxW3m
    gZrIXfauv44luebT

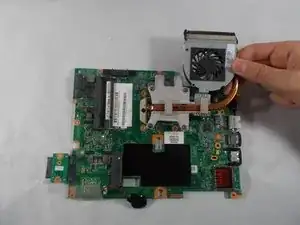

    • Gently lift out the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
