Einleitung

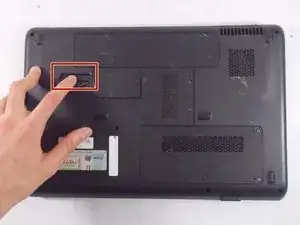

  1. I5ls4yAsFHgYH2MH
    I5ls4yAsFHgYH2MH
    FRZOJ1IYCLjmOwSM
    WkNwTEpT1ZskISpW

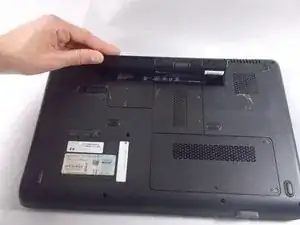

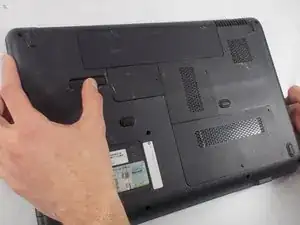

    • Press down and to the right on the battery lock slide.

    • Once slid over to the right the battery will pop up and out.

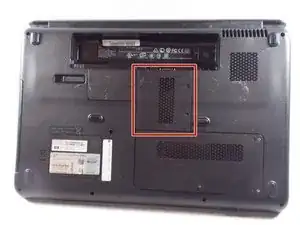

  2. Wq2vqaYdjRKaiESr
    • Locate RAM access door on the bottom side of the laptop.

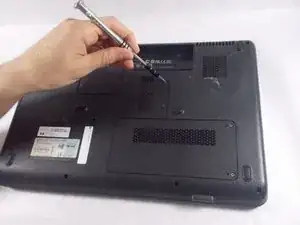

  3. 6fe3hXucpwZdLYmf
    6fe3hXucpwZdLYmf
    xvCYWqROfrYeZ63U
    urZcoJUP4B33PGxH

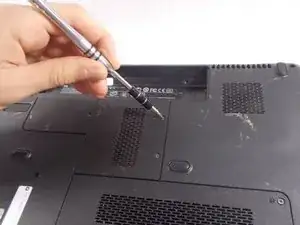

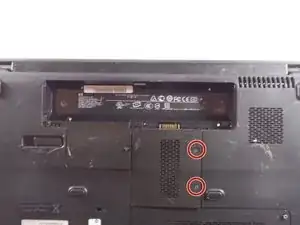

    • Locate the two screws holding down the RAM access door.

    • Unscrew the two screws with a size #1 Phillips screwdriver.

  4. TGb5qfDr1UotEuHJ
    TGb5qfDr1UotEuHJ
    CkLsNK14wgBPXsL6

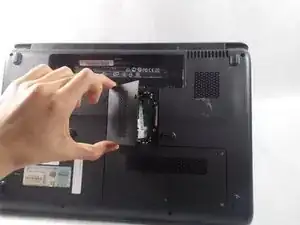

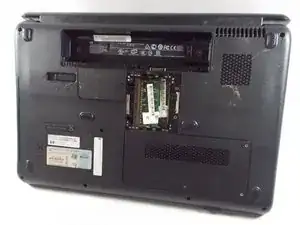

    • Lift up on the RAM cover and remove it to reveal RAM sticks.

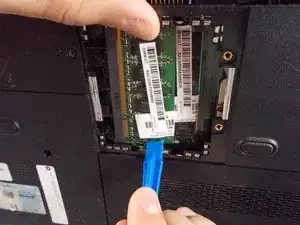

  5. 3VijKnYVEGCRTdEA
    3VijKnYVEGCRTdEA
    ZRpm6QMESFD622Q6

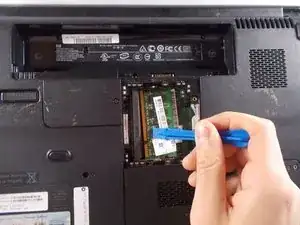

    • Gently pull apart the two metal tabs located on both sides of the stick of RAM.

  6. RPD1EJQuoZWiX2kJ
    • Gently lift the RAM stick up and out of its seat.

  7. BSROSIlZRo6PfloC

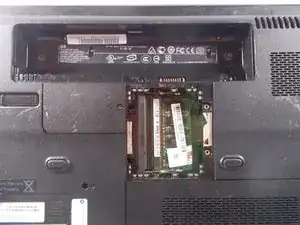

    • Repeat the previous two steps for the remaining stick of RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
