Einleitung

The screens on laptops can be broken or cracked if dropped. If the screen of your HP Pavilion G60-247CL is damaged or broken, this guide will show you step-by-step how to replace it.

  1. I5ls4yAsFHgYH2MH
    I5ls4yAsFHgYH2MH
    FRZOJ1IYCLjmOwSM
    WkNwTEpT1ZskISpW
    • Press down and to the right on the battery lock slide.

    • Once slid over to the right the battery will pop up and out.

  2. TZhvMOjLNkUgrvfi

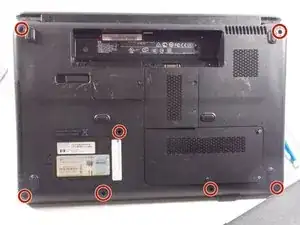

    • Remove the seven Phillips #1 screws from the back side of the laptop.

  3. XJtiHOeBuodKirkc
    XJtiHOeBuodKirkc
    Iw6E2QBbEZF6XEnb

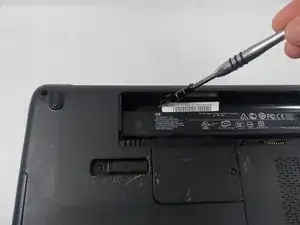

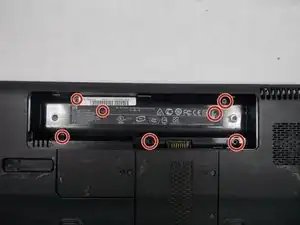

    • Remove the seven Phillips #0 screws from the battery compartment.

  4. Yaktk4b2vDYEJ1wJ
    Yaktk4b2vDYEJ1wJ
    O5weUsy64qyFpURO
    Elw1cJQSMOatsC1R

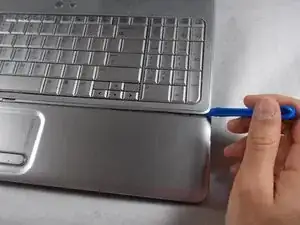

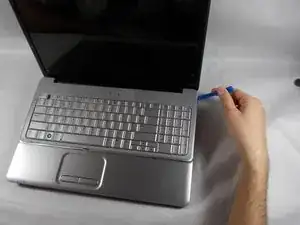

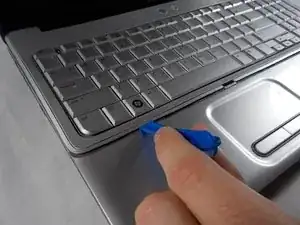

    • Turn the computer around to the front side.

    • Using an opening tool, prop open the keyboard casing.

  5. VQ65sqR2YjjeTUdT
    VQ65sqR2YjjeTUdT
    LHdobNVixWxwFoIB
    nJDhqHYBeINUJeLt

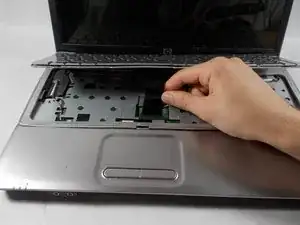

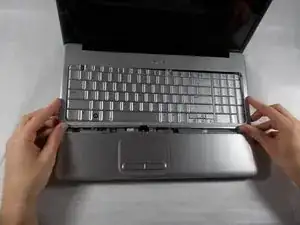

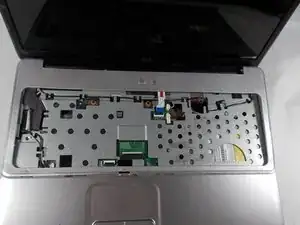

    • Carefully lift up the keyboard.

    • Gently pull up the connecting wire clip to completely detach the keyboard.

  6. 1swmS5o5wjxqMXFZ
    1swmS5o5wjxqMXFZ
    dIEZvwncXHSTkpqj
    LmQwoZJDGVAKRVjd

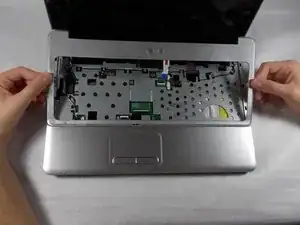

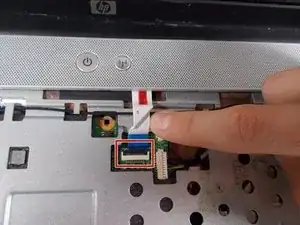

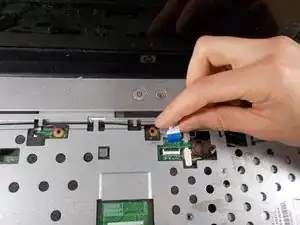

    • At the top right of the laptop there will be another wire clip holding the keyboard casing.

    • Carefully pull out the wire clip to fully detach the covering.

  7. rVWoIubJSHHA1bwI
    rVWoIubJSHHA1bwI
    qdvXXD2KsVMIRL3p

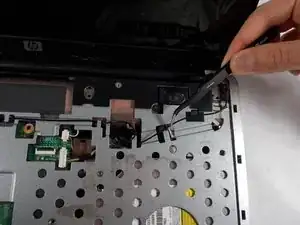

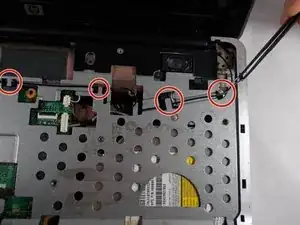

    • At the top right of the laptop remove the black wire from under the metal tabs using the tweezers.

  8. NdgvfJblbOVNI6pM
    NdgvfJblbOVNI6pM
    JkGuRdpbOyjvJaXE

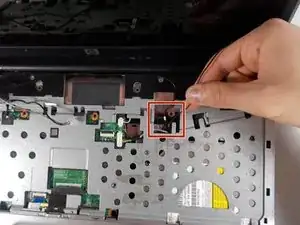

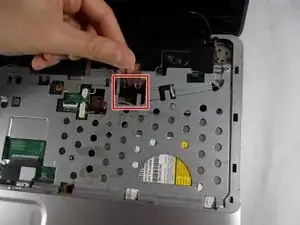

    • Remove the black wire from the top right corner by gently pulling outward.

  9. LNayWSd2TIkP2Efx
    LNayWSd2TIkP2Efx
    bJYIYGPGZuIDCGQq

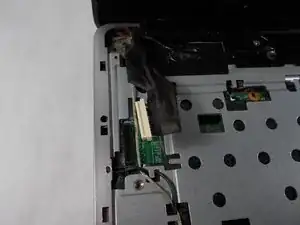

    • At the top left of the computer remove the black clip using the opening tool.

    • Push the opening tool to the right to pop out the clip.

  10. fg2NV2OimB5OKZIk
    fg2NV2OimB5OKZIk
    PjLQFonONMaj1XQG
    EUSIbCIWjlsdWnJd

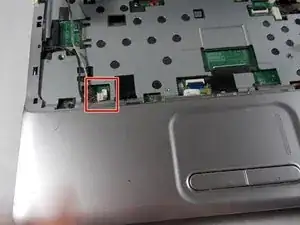

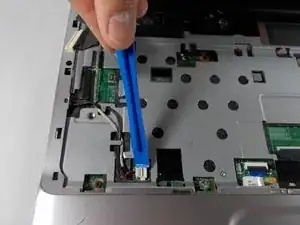

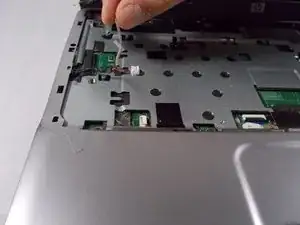

    • Locate at the bottom left of the computer a white clip.

    • Using an opening tool, prop out the white clip.

  11. rgXTQAwRdkvKWAvK
    rgXTQAwRdkvKWAvK
    FvQXwOcnCGBSURBN

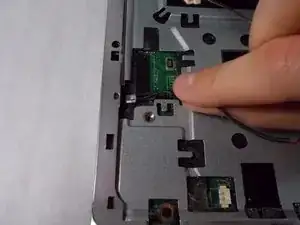

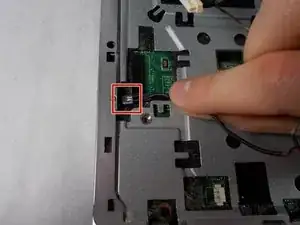

    • On the left side of the computer locate the black wire with the clear clip.

    • Gently pull the wire to the right to detach it.

  12. qwW2hcBeCBCvlS6U
    qwW2hcBeCBCvlS6U
    GJITOiktrXSKKQEw
    IqUcERHrEER62lpm

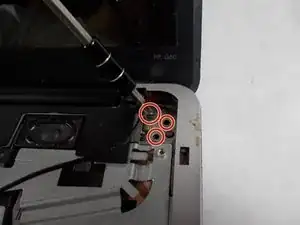

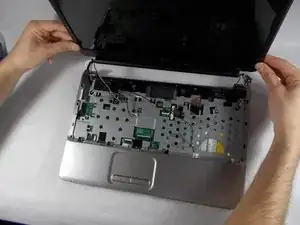

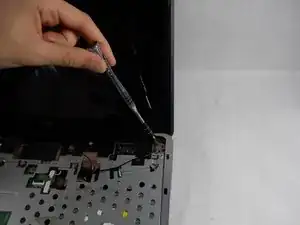

    • At the top corners of the computer, unscrew the three Phillips #0 screws.

    • Lift up the top half of the computer carefully.

  13. VZG1gKoEikcXHNSZ
    VZG1gKoEikcXHNSZ
    62Za1jwEcqpimGps
    gmbma2flrhMiIXHD

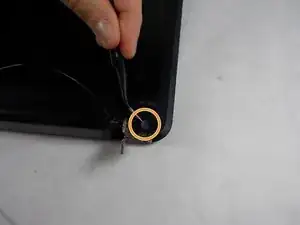

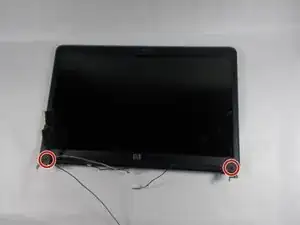

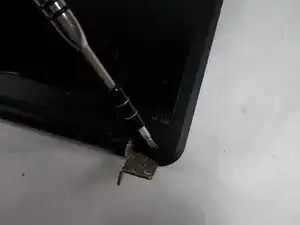

    • Locate the two screws at the bottom corners of the screen.

    • Using the tweezers remove the rubber black covering over the screw.

    • Remove the two Phillips #0 screws.

  14. iUokFZXsa2ittrGy
    iUokFZXsa2ittrGy
    4bSvGnjgMsTULeh2
    oiixflnkcWQusoYi

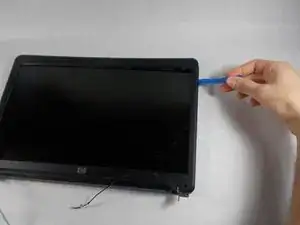

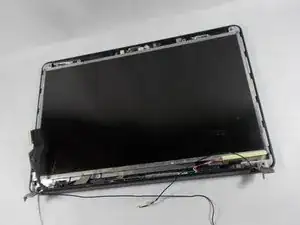

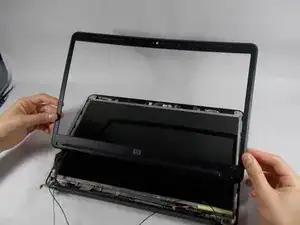

    • Using the opening tool, prop off the screen covering.

    • Remove the covering to expose the screen completely.

  15. CTKAevuI6rZnnSjV
    CTKAevuI6rZnnSjV
    2UaMUKvbiTa6ejMx
    JQKLpOcgVhHGby6h

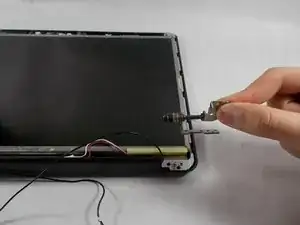

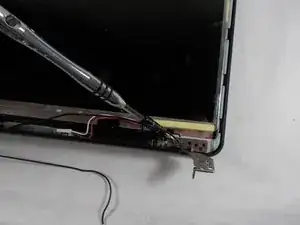

    • Remove the bottom two screen bearings.

    • Using a Phillips 1 screwdriver, remove the two screws on each side.

  16. gPHEQejYIihZTXqA
    gPHEQejYIihZTXqA
    NDbGKPN1HEP1WVIO

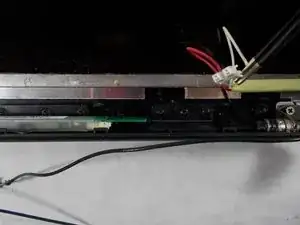

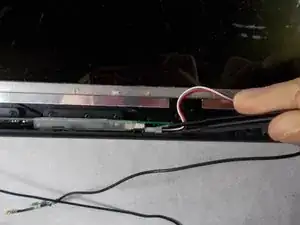

    • Using the tweezers remove the red and white wire from the bottom of the screen.

  17. 1BF5V2gB1Z2QMuHN
    1BF5V2gB1Z2QMuHN
    AxFD1ONUv2NlcgBT

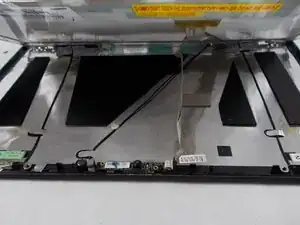

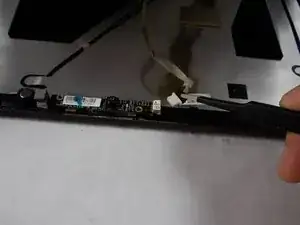

    • Prop the screen up slightly .

    • Using the tweezers unclip the white wire.

  18. yfOnIFNAt2rQwQDO
    yfOnIFNAt2rQwQDO
    kB5CSRB2OgOf4CPT

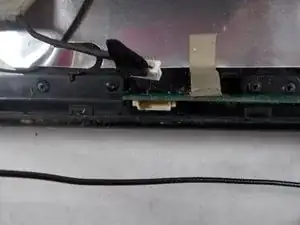

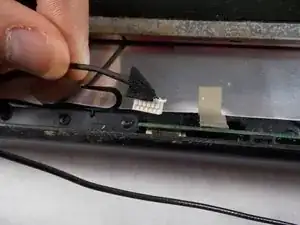

    • While the screen is still propped open remove the black wire from the bottom middle of the screen by pulling gently.

  19. nt6YsVM4ddcw1bZS

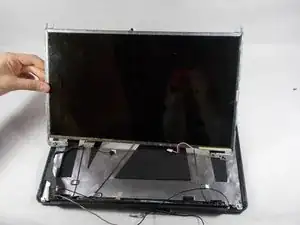

    • Remove the screen from the outer casing carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
