HP Pavilion G60-630US RAM Replacement

Geschrieben von: shawn schmick
  • Kommentare: 1
HP Pavilion G60-630US RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

The RAM card is a credit card sized chip that is inserted into a specified socket located within the laptop, that is connected to the motherboard. The RAM card is designed to store memory being used at a specific time while the laptop runs a variety of programs. Usually when the computer is slow it can be due to the RAM being, old, worn out or not having enough memory storage. This guide shows how to replace the RAM card.

  1. AurXAYpo5TflmLRf
    AurXAYpo5TflmLRf
    I42voKSqJdP5KtRF
    YjK4qXXxluh2TR2h

    • Make sure the laptop is powered off and unplugged first.

    • Turn your laptop over so the bottom is facing up.

    • Locate the battery latch and slide the latch switch all the way to the left.

    • The latch will lock and stay in place.

  2. GeeZr1bHTwPB1uIE
    GeeZr1bHTwPB1uIE
    1bjtEaAD14oLQ4Ih
    kQRZgYKlb1XUPCum

    • Carefully lift the battery out and away from the laptop.

    Missing instructions about removing keyboard screws in the battery bay as well as removing the corner screws on either side of the battery bay.

    Ruurd Offringa -

  3. bRDSperUIiHvOEG6
    bRDSperUIiHvOEG6
    nWjtBxkQFWKHsgSx

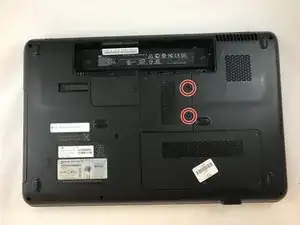

    • Remove the two 5.5 mm JIS#0 screws.

    • Lift the panel up and off the computer.

  4. uXAK2TRvwAkePofO
    uXAK2TRvwAkePofO
    TL2tIZ3FRjXrucUt
    Lvmsa41smwwoNPjb

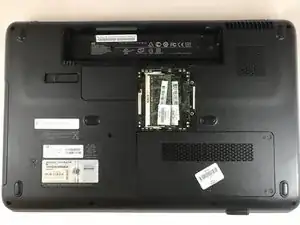

    • Once the panel is removed the RAM card will be visible.

    • The RAM is inserted into its socket with some metal triggers. To remove the RAM card, push the triggers away from the RAM card.

    • If done right, the card will be at an upward angle pointing out of the device.

    • Gently grasp the RAM card ,and pull it out.

Abschluss

To insert a new RAM card, put the card into the slot and press down till the metal triggers click over it, holding it in place. After that, follow steps 1 to 3 in reverse order.
