HP Pavilion G60-630US Hard Drive Replacement

Geschrieben von: Nicole Welter
  • Kommentare: 1
HP Pavilion G60-630US Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

The hard drive is a high-capacity storage device that is installed within the laptop. It permanently stores and recovers data from the laptop. Over time the hard drive can slow down the processing speed of the laptop. In order to fix this problem, the hard drive will need to be replaced. This guide will show how to properly replace the hard drive.

  1. AurXAYpo5TflmLRf
    AurXAYpo5TflmLRf
    I42voKSqJdP5KtRF
    YjK4qXXxluh2TR2h

    • Make sure the laptop is powered off and unplugged first.

    • Turn your laptop over so the bottom is facing up.

    • Locate the battery latch and slide the latch switch all the way to the left.

    • The latch will lock and stay in place.

  2. GeeZr1bHTwPB1uIE
    GeeZr1bHTwPB1uIE
    1bjtEaAD14oLQ4Ih
    kQRZgYKlb1XUPCum

    • Carefully lift the battery out and away from the laptop.

    Missing instructions about removing keyboard screws in the battery bay as well as removing the corner screws on either side of the battery bay.

    Ruurd Offringa -

  3. bMoFgJDvGSKOsc4k

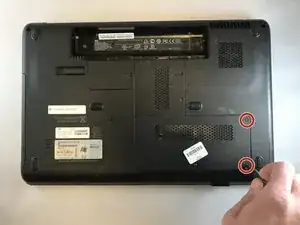

    • Remove the two 5.5 mm JIS#0 screws from the hard drive cover.

    • Remove cover from the back of the laptop.

  4. cjpXcSNXgBsIutlY

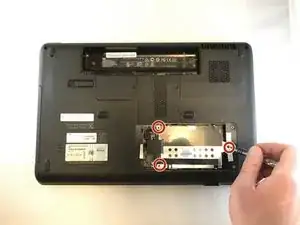

    • Remove three 5.5 mm JIS#0 screws.

  5. QJhKmO3Rwd4Z5gMK

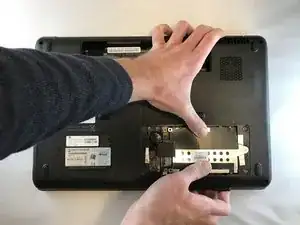

    • Gently, slide the whole hard drive to the right with your fingers.

  6. vYTftbbsjZNMEgnc
    vYTftbbsjZNMEgnc
    pL5CZvcQSb5gGakJ
    tKqHiUhCvNBORQ3D

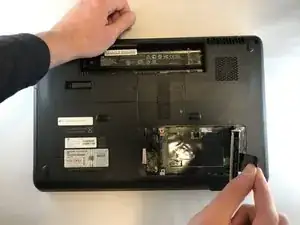

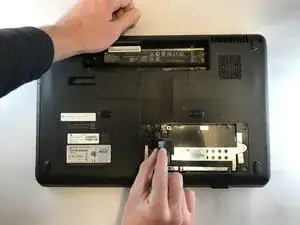

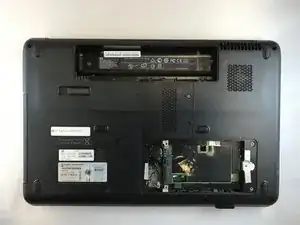

    • Lift up on black tap attached to the hard drive to remove the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
