HP Pavilion G60-630US Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

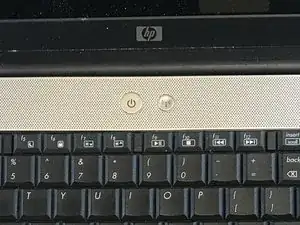

The power button may not be turning on the laptop. There may be a disconnect of wires or the power bar chip may be defective. If the power button is not working or broken and it needs to be replaced, the following steps show how to replace the components that make the power button work.

  1. AurXAYpo5TflmLRf
    AurXAYpo5TflmLRf
    I42voKSqJdP5KtRF
    YjK4qXXxluh2TR2h

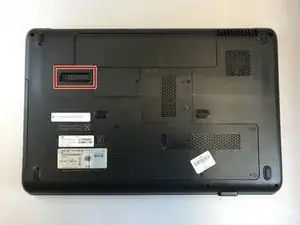

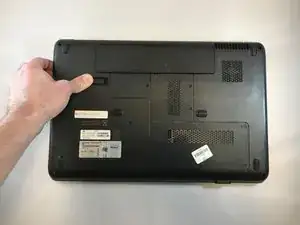

    • Make sure the laptop is powered off and unplugged first.

    • Turn your laptop over so the bottom is facing up.

    • Locate the battery latch and slide the latch switch all the way to the left.

    • The latch will lock and stay in place.

  2. GeeZr1bHTwPB1uIE
    GeeZr1bHTwPB1uIE
    1bjtEaAD14oLQ4Ih
    kQRZgYKlb1XUPCum

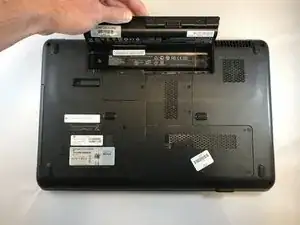

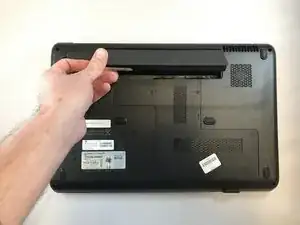

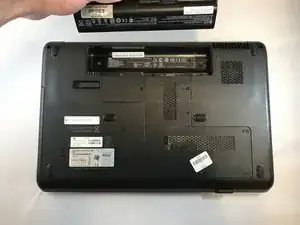

    • Carefully lift the battery out and away from the laptop.

    Missing instructions about removing keyboard screws in the battery bay as well as removing the corner screws on either side of the battery bay.

    Ruurd Offringa -

  3. fLAN2hoVCF2DeVAm
    fLAN2hoVCF2DeVAm
    l1pdBkgWeW55wHBw
    VLCYhKQbCSmEJWsI

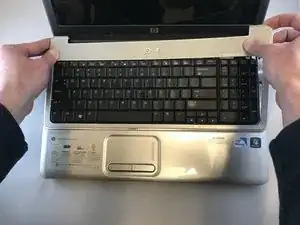

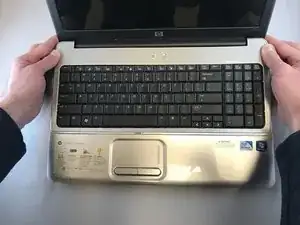

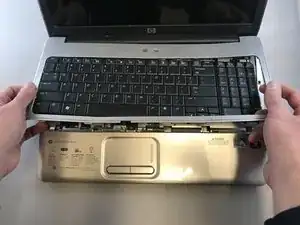

    • Open the laptop normally.

    • Using your fingers (or a spudger if needed), loosen the silver cover surrounding the keyboard.

    • You will not be able to fully remove the keyboard/silver border all the way until the next step.

  4. D5jKK2ETunpiLXMf
    D5jKK2ETunpiLXMf
    NxCcHqfUgAxLTtj4
    oAN4mBdMQSFIIcCV

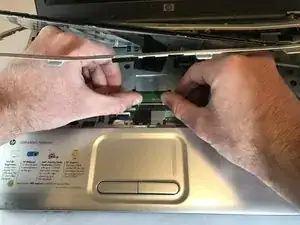

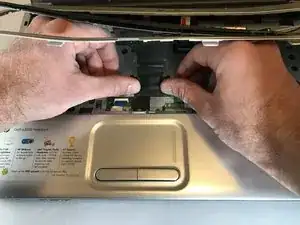

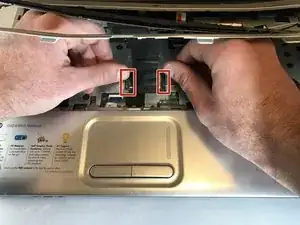

    • Carefully place your hands underneath the now loosened keyboard and locate the ribbon keeping the keyboard connected to the laptop.

    • Locate the tabs keeping the ribbon in place.

    • Gently push the tabs inward to release the ribbon and to detach the keyboard.

    • Carefully remove the keyboard and place it off to the side.

    • The silver border and the power button will still be connected by a different ribbon.

  5. BmcQsxoq1LAYKynr
    BmcQsxoq1LAYKynr
    KKoBdCqmWESWCT1a
    ZtRVogJdJgaDTDSl

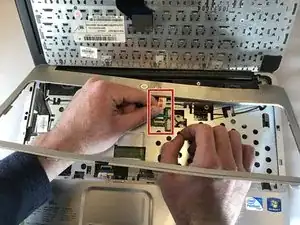

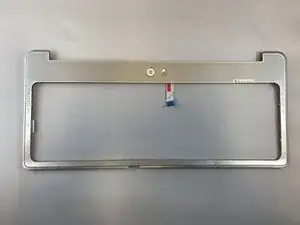

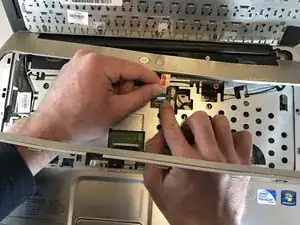

    • Locate the ribbon keeping the power button attached to the laptop.

    • Push the tab attaching the ribbon to the laptop to detach the silver border and the power button.

    My keyboard is held in place by three screws from the back through the battery compartment. The keyboard is then released by prying on the left and right sides near the top. The silver trim is held in place by four screws from the back and the whole piece must be slid toward the display to release plastic fingers underneath before lifting.

    Dave Hays -

  6. xNuHOtUvbbTWW6la
    xNuHOtUvbbTWW6la
    UNBRuAsJUnOpy1lv
    YRENoh6TmoshpNTo

    • If you are looking at this in the HP Pavilion G60-630US Screen Replacement Guide, ignore this step

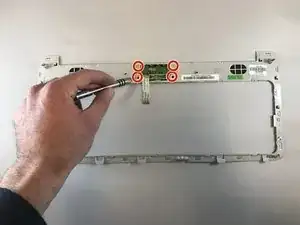

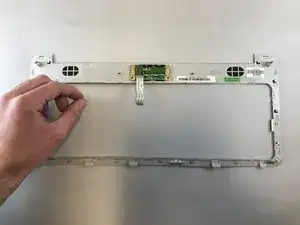

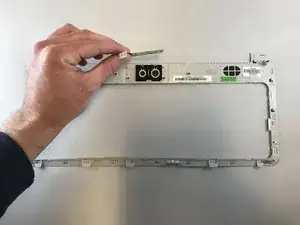

    • Flip the silver border over to expose the underside of the power bar.

    • Unscrew the 4 screws keeping the power bar in place. Place the screws off the the side.

    • Carefully remove the power bar.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

[deleted]

Mitglied seit: 02/10/17

213 Reputation

Ein Kommentar

You have neglected to speak about removal of 5 screws from the bottom of the laptop! 3 inside the battery compartment and 2 on the corners of the laptop. Removal of these allow removal of the bezel and keyboard. Failure to remove these screws will cause damage to the keyboard and bezel!

Dave -
