HP Pavilion G7-2235DX RAM Replacement

Geschrieben von: Dante Mugnaini
  • Kommentare: 0
HP Pavilion G7-2235DX RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

For the RAM replacement of your laptop, you will need a screwdriver and a couple other tools. This is a relatively easy replacement and should take no more than five minutes.

  1. rNoOQWNgtBJCaR1w

    • Before beginning, make sure the laptop is properly shut down and charger is detached.

    • Slide the battery release switch to the center of the computer to release the battery.

  2. imVA5ibLhhkYNofI

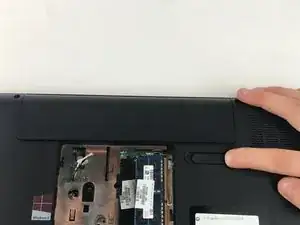

    • Remove the battery.

  3. gheBdPpW5SQMtlLd
    gheBdPpW5SQMtlLd
    RU5FsUp4kZstxtCU

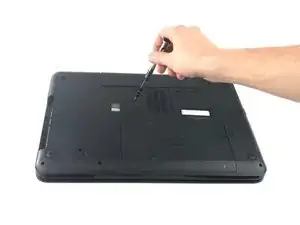

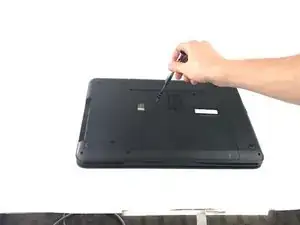

    • Loosen the 7.25mm screw on the bottom of the laptop holding the "L" shaped cover down.

  4. YTdJGrLdOI6ES1Ys
    YTdJGrLdOI6ES1Ys
    UVSPiwh2GCxVXQP6

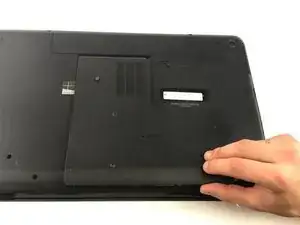

    • Slide the cover towards you, then pull up to remove it.

  5. 6inQi6bggJMEfDWE
    6inQi6bggJMEfDWE
    dxBtCCJgKhfwcKBV

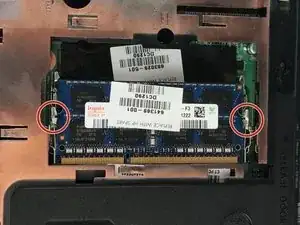

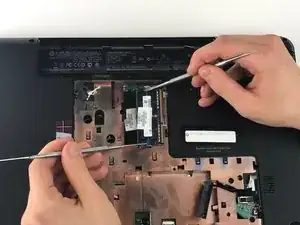

    • Locate the RAM card and the two prongs holding it in place.

  6. INBdEkG3u6kiMPUA

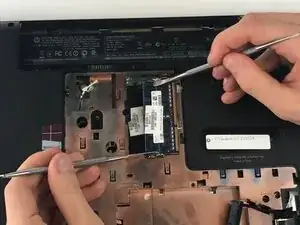

    • Using either your fingers or two metal tools, push outwards on the two prongs until the RAM card pops out.

  7. bTPlnuXWpGPyxsRV

    • The RAM card can now be pulled out at a slight angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
