HP Pavilion G7-2289wm RAM Replacement

Geschrieben von: Ryson Smith
  • Kommentare: 0
HP Pavilion G7-2289wm RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide provides instruction on how to replace the RAM module.

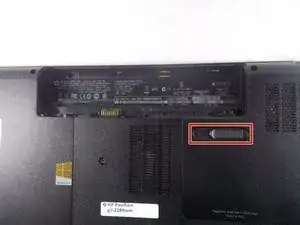

  1. 5A56JFH1HJsOt2V2

    • Slide the battery release latch to the left, towards the center of the laptop.

    • Lift the battery up, and pull towards the center of the laptop to remove it.

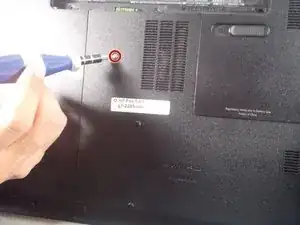

  2. WEi1TNKA62Zqnq2F

    • Loosen the screw that secures the service cover.

    • Pull the service cover towards you to remove it.

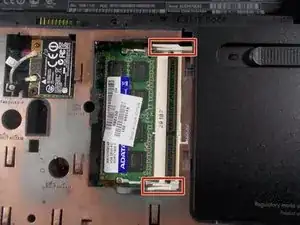

  3. SESfxQaali1w1DN3

    • Unlock the tabs on each side of the ram module. (this lifts the ram module up)

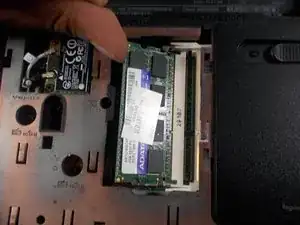

  4. s4MOlyYskcXEjGps

    • Remove the ram module by pulling it gently away from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
