HP Pavilion N3350 Fan Replacement

Geschrieben von: Emily Hatstat
  • Kommentare: 0
HP Pavilion N3350 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

If the laptop is overheating, it is possible that your fan is malfunctioning or needs to be cleaned. To replace, a replacement must be purchased and installed, while cleaning does not require a new fan. Follow this guide to clean or replace your computer fan.

  1. ZlgqF4Sr6CvTKmkr

    • Locate the fan on the underside of the laptop.

  2. dW5IWqGLmIOrSSCW

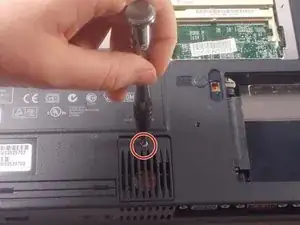

    • Using a Phillips #1 screwdriver, remove the 4.5 mm screw securing the fan cover to the device.

  3. tQMiBv1qVA5CFljZ

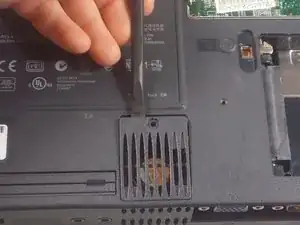

    • Use a plastic spudger tool to free the cover.

    • The fan cover is extremely fragile and easy to break. Use caution during this step.

  4. YEHOvkWuA6krQmKh
    YEHOvkWuA6krQmKh
    y6tOiNqX1AdbDdMW
    6OXcwbX6DFNCgdOR

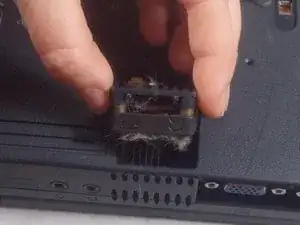

    • Lift the fan up from the device.

    • If you're cleaning the fan, stop at this step, and remove any build up. This can be done with tweezers and canned air.

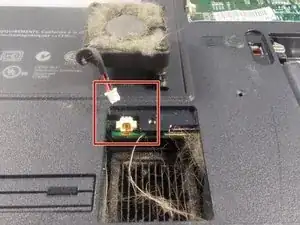

    • Disconnect the fan cable to fully remove the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
