HP Pavilion Sleekbook 14-b013cl Hard Drive Replacement

Flip the computer over and move the battery lock switch to the "unlocked" position (marked by an orange lock icon).

Press the switch on the right-hand side of the back of the device towards the center until the gray battery icon is no longer visible. This will eject the battery.

Carefully pull the battery away from the device.

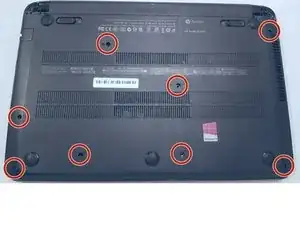

Using a Phillips #0 screwdriver, unscrew all eight of the screws.

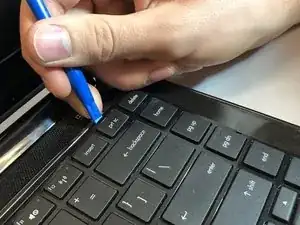

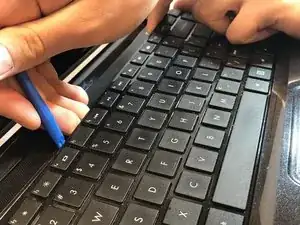

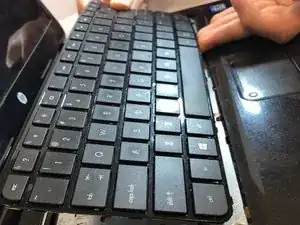

Using a plastic opening tool, pry up on the upper edge of the keyboard.

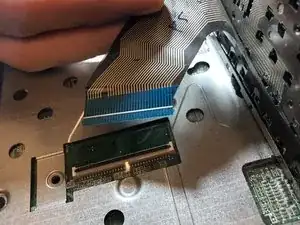

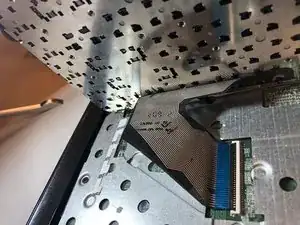

To disconnect the wire, pry up on the latch holding it in its socket.

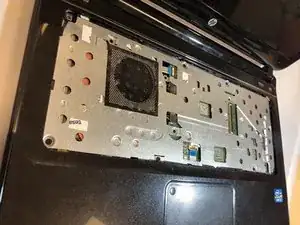

Flip the laptop back over.

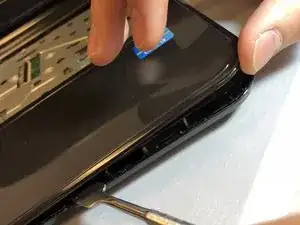

Using a plastic or metal spudger, carefully pry the top and bottom halves of the case appart.

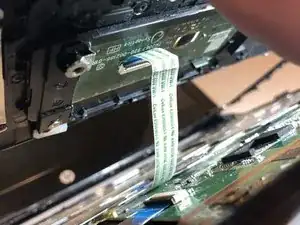

Disconnect the touch pad wire by flipping the small black lever using a plastic opening tool.

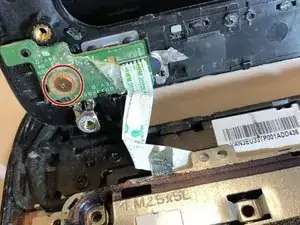

Unscrew the small circuit board underneath the power button.

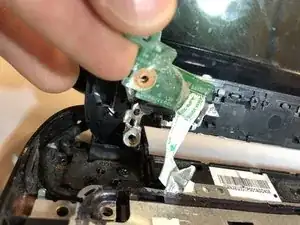

Remove the circuit board by pulling up and away on the plastic tab.

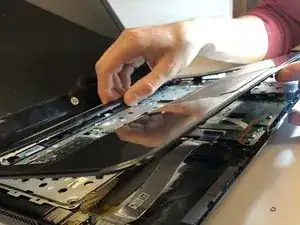

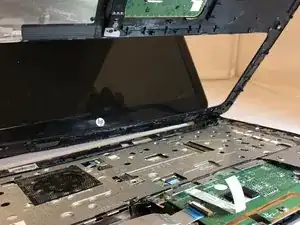

Pull the top half of the plastic case off of the laptop.

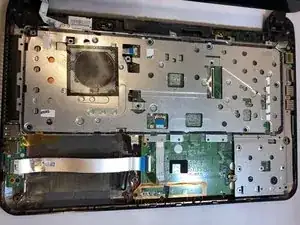

Remove all seven of the screws using a Phillips #0 screwdriver and pull the plate off the motherboard.

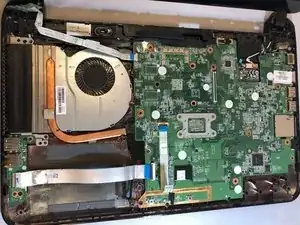

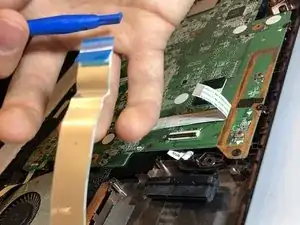

Remove the USB wire which runs over the top of the hard drive.

Remove the wire by carefully pulling towards the USB connector on the left hand side of the laptop.

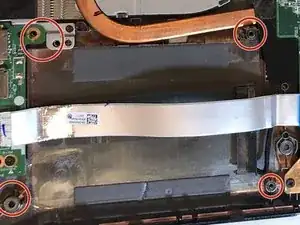

Remove the four screws securing the hard drive to the motherboard.

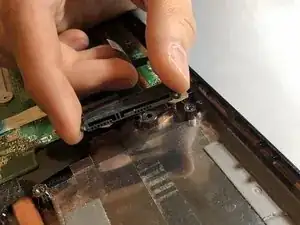

Disconnect the hard drive cable by gently pulling it away from the hard drive.
