HP Pavilion Sleekbook 14-b013cl Keyboard Replacement

Geschrieben von: Marcus
  • Kommentare: 0
HP Pavilion Sleekbook 14-b013cl Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide will walk you through the steps required to remove and replace the keyboard of the HP Pavilion Sleekbook 14-b013cl.

  1. 6dxudZaHIjoaYQ2l
    6dxudZaHIjoaYQ2l
    CqpJ3qROnNyFXxQW

    • Flip the computer over and move the battery lock switch to the "unlocked" position (marked by an orange lock icon).

  2. qor3KOHp5pgpHvBN
    qor3KOHp5pgpHvBN
    bZEgaDEuvmEiVvab

    • Press the switch on the right-hand side of the back of the device towards the center until the gray battery icon is no longer visible. This will eject the battery.

  3. 3touRGtSqQXCC5RN
    3touRGtSqQXCC5RN
    N1ALZLfAaEXa3FhY

    • Carefully pull the battery away from the device.

  4. Dk3E5Lcmv6ygJkfT

    • Using the Phillips #0 screwdriver, remove the two screws.

  5. sPxuFvbFQTJKTAhH
    sPxuFvbFQTJKTAhH
    QUOeYMILqkKtkBKj
    H6wyRoQMMjOnWbfS

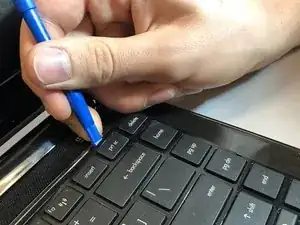

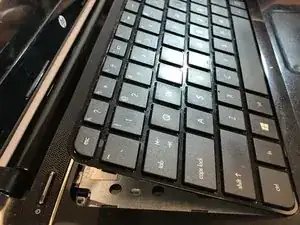

    • Use a plastic opening tool to pry up one of the upper counters on the keyboard

    • Run the tool along the upper edge of the keyboard and towards the opposite corner to release the latches.

  6. usYAlDGoDyTiGtWA
    usYAlDGoDyTiGtWA
    4Y55ZpKLiM6fFnDo
    rtOBNwFMbQIWDvTr

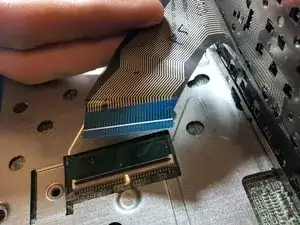

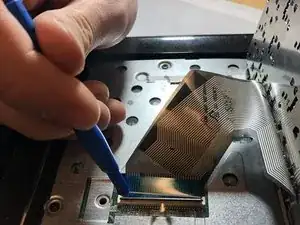

    • Push the button to release the connector and pull it out and remove the keyboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
