Einleitung

In this guide, you will learn how to replace your HP Pavilion Sleekbook's screen.

  1. 6dxudZaHIjoaYQ2l
    6dxudZaHIjoaYQ2l
    CqpJ3qROnNyFXxQW

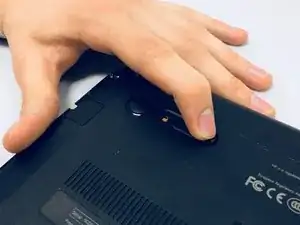

    • Flip the computer over and move the battery lock switch to the "unlocked" position (marked by an orange lock icon).

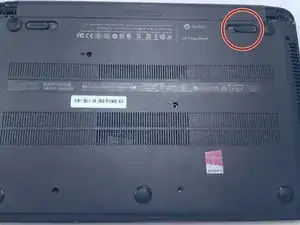

  2. qor3KOHp5pgpHvBN
    qor3KOHp5pgpHvBN
    bZEgaDEuvmEiVvab

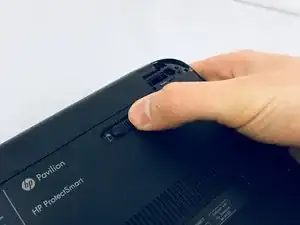

    • Press the switch on the right-hand side of the back of the device towards the center until the gray battery icon is no longer visible. This will eject the battery.

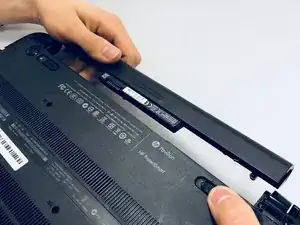

  3. 3touRGtSqQXCC5RN
    3touRGtSqQXCC5RN
    N1ALZLfAaEXa3FhY

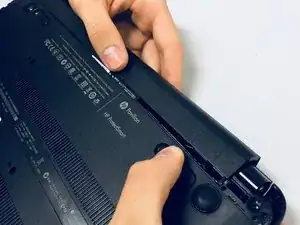

    • Carefully pull the battery away from the device.

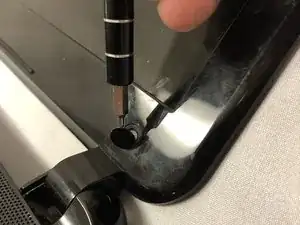

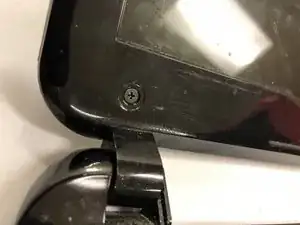

  4. vvhbDRAuCarQaOAT
    vvhbDRAuCarQaOAT
    jYfW1olAcfGBoPik
    PkupTCMBTLGQpFyK

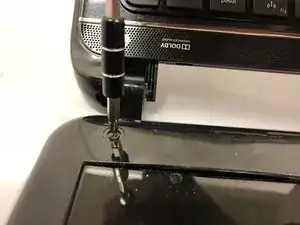

    • Using a 1.0 Flathead screwdriver, remove the two stickers covering the screws that hold the screen in place.

    • Use a Phillips #1 screwdriver to remove the two 3.2mm screws that are now visible.

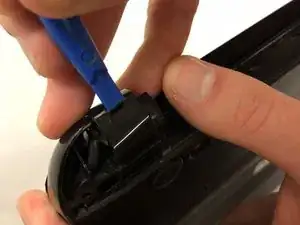

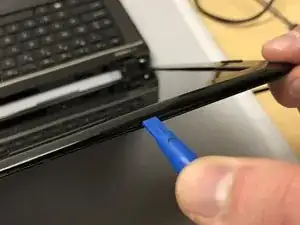

  5. wtDPxMrCKRXB6U31
    wtDPxMrCKRXB6U31
    nZXgPcTJxHPvfbPG
    yRfpjcRtr4BHL6Ta
    • Using a plastic opening tool, pry the plastic screen protector off, sliding the tool along the seam. Press the tool in until you hear the plastic tabs clicking as they come undone.

    • Separate the plastic that makes up the hinges for the screen, as they are part of the same screen protector.

    • Use your hands or plastic tool to peel the screen protector away from the adhesive holding it in place.

  6. KavfdxIjaQvChx1W
    KavfdxIjaQvChx1W
    me5EjNpXXF6INw1B

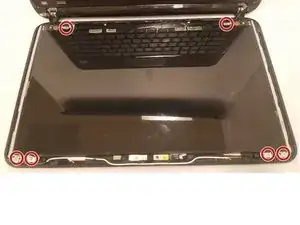

    • Using a Phillips #1 screwdriver, remove the six 2.8mm screws holding the screen in place.

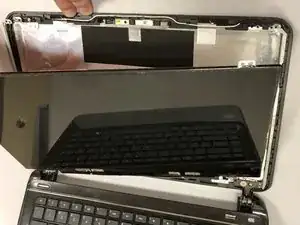

    • Lift the screen away from the cover until you have access to the connector cable near the bottom of the screen.

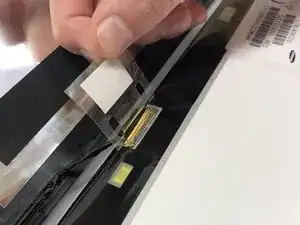

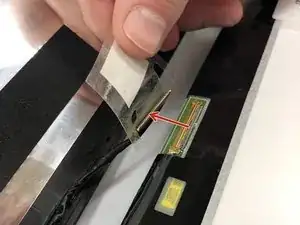

  7. HCjTBTkrSNfmKL1Q
    HCjTBTkrSNfmKL1Q
    YYlLKLXYrBsjMhlD
    • Peel away any sticker holding the connector in place and simply pull the tab out of the connector parallel with the screen.

    • Remove the screen from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
