HP Pavilion Sleekbook 15-b000 RAM replacement

Geschrieben von: Sam Barkley
  • Kommentare: 0
HP Pavilion Sleekbook 15-b000 RAM replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

45 Minuten

Einleitung

This guide will show you the procedure how to remove and reset your RAM on the motherboard if it has become damaged and no longer works and needs to be replaced or may have become disconnected or loose.

  1. mbhDrLVtCbedCPnV

    • Unplug laptop from adapter and all other devices.

  2. kcpdrp3rKTG6tnaD

    • Flip the laptop over with battery facing you.

  3. arIkTYIEBHtXwJb3
    arIkTYIEBHtXwJb3
    JGedfWUcLHuwocqB

    • Slide the battery lock on the right side open.

    • Slide the Battery release latch on the left side.

  4. 6idIVaZvH2CVR1wl

    • Pull battery out.

  5. JIqOkqJOKPOIVGBw

    • Remove the two 6.5mm Phillips #1 keyboard screws from bottom of laptop.

  6. kpVCNFwIdoyeiZd2

    • Push screwdriver through screw hole top pop the keyboard.

    • Make sure the screen is open.

  7. s2ko3ZpYrGiA4smt

    • Pry up the keyboard.

    • The keyboard is still attached by it's ribbon.

  8. u6LmVsjf1MX1GZoo

    • Remove keyboard wire by popping latch under blue plastic

  9. EYcvHFUbgNvKInAo

    • Using the spudger to lift up on the white tabs

    • Pull horizontally on the blue ribbon to disconnect the cables

  10. QQAqmbaLUBjPl2da

    • Remove the five 5.5mm Phillips #1 screws from the case

  11. OQxmP5JGOUhEYujm

    • Remove eight 6.5mm Phillips #1 screws from the back cover

  12. Y2qHNOXdiAu2LNTf
    Y2qHNOXdiAu2LNTf
    CKBBu21gEDyLZVVT
    p463i4eQMLHeVbdZ

    • Starting at a top corner, use the pry tool to split the case.

    • Slowly work around the case, pulling up gently to release the clips.

  13. VBaRgde6rL1UN1jp
    VBaRgde6rL1UN1jp
    gOHfBoySrQFfRBSS

    • Disconnect motherboard cable from left side USB and jacks

  14. tH2UbEIC5nnjCqQP

    • Remove the six 5.5mm Phillips #1 motherboard screws

    • Remove the one 3.5mm Phillips #1 screw from the WiFi chip

  15. n2lHwYBJUsm6tA1g

    • Remove motherboard.

  16. iQIH4fLbZCVbO4HA

    • With the mother board removed flip it upside down.

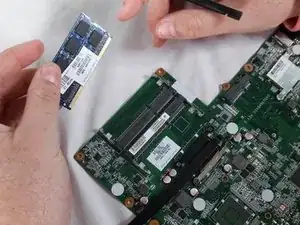

  17. 6vndfnqwGtt3FAIX

    • Pull the clips attaching the ram outwards.

    • Remove ram at a angle.

    • Do not force the RAM loose, this can break the RAM or motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
