HP Pavilion Sleekbook 15-b000 Speaker Replacement

Geschrieben von: Sam Barkley
  • Kommentare: 0
HP Pavilion Sleekbook 15-b000 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

40 - 45 Minuten

Einleitung

This guide will go through the steps to replace the speakers if the audio is distorted or the sounds is not working.

  1. mbhDrLVtCbedCPnV

    • Unplug laptop from adapter and all other devices.

  2. kcpdrp3rKTG6tnaD

    • Flip the laptop over with battery facing you.

  3. arIkTYIEBHtXwJb3
    arIkTYIEBHtXwJb3
    JGedfWUcLHuwocqB

    • Slide the battery lock on the right side open.

    • Slide the Battery release latch on the left side.

  4. 6idIVaZvH2CVR1wl

    • Pull battery out.

  5. JIqOkqJOKPOIVGBw

    • Remove the two 6.5mm Phillips #1 keyboard screws from bottom of laptop.

  6. kpVCNFwIdoyeiZd2

    • Push screwdriver through screw hole top pop the keyboard.

    • Make sure the screen is open.

  7. s2ko3ZpYrGiA4smt

    • Pry up the keyboard.

    • The keyboard is still attached by it's ribbon.

  8. u6LmVsjf1MX1GZoo

    • Remove keyboard wire by popping latch under blue plastic

  9. EYcvHFUbgNvKInAo

    • Using the spudger to lift up on the white tabs

    • Pull horizontally on the blue ribbon to disconnect the cables

  10. QQAqmbaLUBjPl2da

    • Remove the five 5.5mm Phillips #1 screws from the case

  11. OQxmP5JGOUhEYujm

    • Remove eight 6.5mm Phillips #1 screws from the back cover

  12. Y2qHNOXdiAu2LNTf
    Y2qHNOXdiAu2LNTf
    CKBBu21gEDyLZVVT
    p463i4eQMLHeVbdZ

    • Starting at a top corner, use the pry tool to split the case.

    • Slowly work around the case, pulling up gently to release the clips.

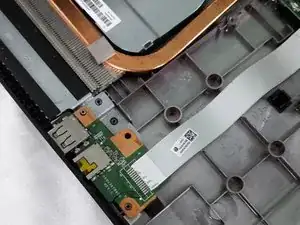

  13. VBaRgde6rL1UN1jp
    VBaRgde6rL1UN1jp
    gOHfBoySrQFfRBSS

    • Disconnect motherboard cable from left side USB and jacks

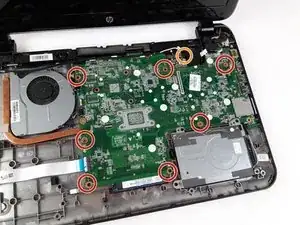

  14. tH2UbEIC5nnjCqQP

    • Remove the six 5.5mm Phillips #1 motherboard screws

    • Remove the one 3.5mm Phillips #1 screw from the WiFi chip

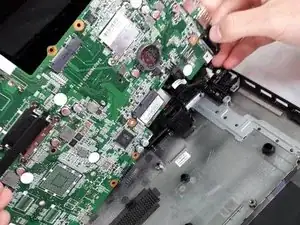

  15. n2lHwYBJUsm6tA1g

    • Remove motherboard.

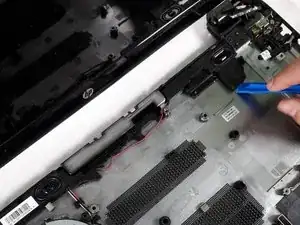

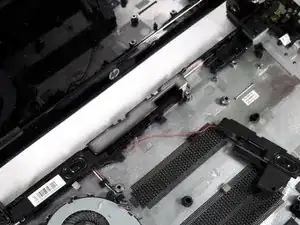

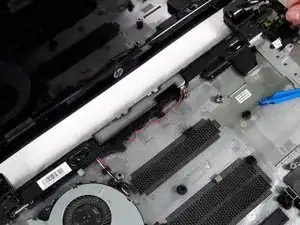

  16. G5j2GE31CTCy4kT5
    G5j2GE31CTCy4kT5
    FbJCklfkXL2LV2on
    KJ3SMhKBuZBcfXFE

    • Use a plastic opening tool to carefully remove the right speaker.

    • Repeat this step for the left speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
