Einleitung

This guide will go through the process of replacing the RAM card from a HP Pavilion Sleekbook 15-b142dx. The replacement of a RAM card for another of a higher capacity will increase the performance of you system and its capabilities.

  1. QI1J3FQIFT6WAhOV
    QI1J3FQIFT6WAhOV
    t6xQpVNYKMvkJnw1
    • Refer to the hard drive guide to find out how to remove the hardrive.

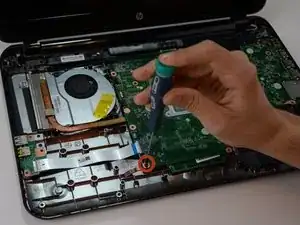

    • Use the right size Philips screwdriver to unscrew the four 5.7 mm screws (red circles) that are holding the motherboard to the laptop casing.

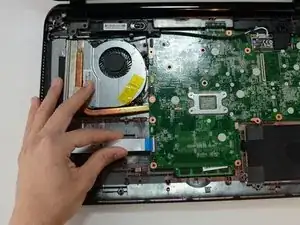

  2. TIbhUBDydxsPiuhZ
    TIbhUBDydxsPiuhZ
    p6pvluJuIOXeUulf
    • Next, while facing the screen, find the silver lining cable connected to the bottom left corner of the motherboard.

    • Gently, using your fingers, flip up the small retaining flap that is keeping the blue end of the cable in place. Then, pull from the blue ribbon horizontally outward to completely disconnect the silver cable.

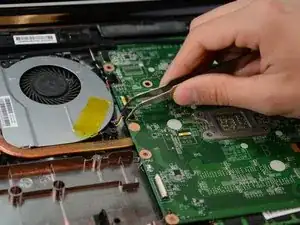

  3. u2Eb2VuxmesiIEFh
    u2Eb2VuxmesiIEFh
    v63oqoQyPWbkaLVI
    • To remove the fan locate the two ports that connect the fan to the motherboard at the top left side of the motherboard.

    • Use a tweezer or your hand to disconnect the ports by applying horizontal force to the left of the port.

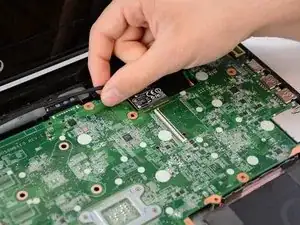

  4. L2EoQ4vBPMdYENLY
    L2EoQ4vBPMdYENLY
    xAZCjtfV6LNDrG1U
    • Locate the thin, plastic, black wire on the top part of the motherboard.

    • Use a tweezer or your hand to pull it gently and release it from its place.

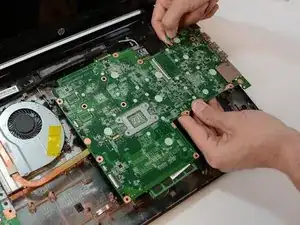

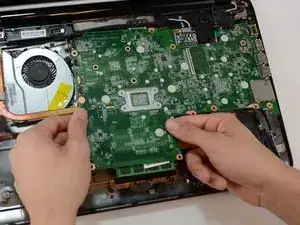

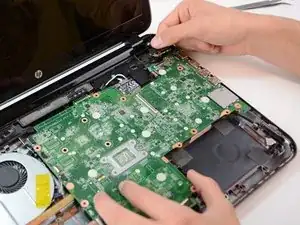

  5. 2ZVYTZuVTZjGDXY2
    2ZVYTZuVTZjGDXY2
    UrORUgnYfaQqaJAR
    YFBvRx1UeT3sxdpY
    • Once all the external connections have been disconnected, hold onto the motherboard from the right-hand side and pull to the left to free the USB and HDMI ports from their sockets.

    • Before freeing the motherboard from the casing make sure the USB and HDMI ports on the right-hand side are completely out their sockets.

    • Once that is complete, grab the motherboard from the left hand-side and pull gently until it is completely free. Do not pull it out too far.

    • To completely remove the motherboard from the laptop casing locate underneath the top right-hand corner an external cable and use your hand to unplug it as indicated in the picture.

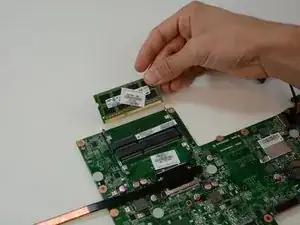

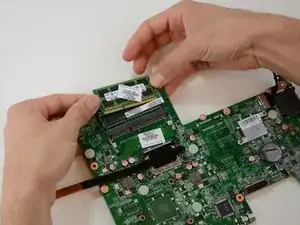

  6. QUWMJvroZJkBKyKv
    QUWMJvroZJkBKyKv
    TCqHaWiyfsjK1AcJ
    XoDLkVkAjvZTf1YA
    • To gain access to the RAM flip the motherboard so that the bottom side is facing up. Then, locate the RAM card holder above the thick copper wire, right on the top edge.

    • To remove the RAM card use your fingers to pull the metal prongs on each side of the RAM card holder.

    • Then, grab the RAM card from the side edges and slide it outward.

Abschluss

To reassemble your device, follow these instructions in reverse order.
