HP Pavilion Wave 600-a010 Fan Replacement

Geschrieben von: clayton stokes

Kommentare: 3

HP Pavilion Wave 600-a010 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

This guide will help give direction to properly remove the fan from your HP Pavilion Wave Desktop PC. Tools required for this removal might be a Phillips and Torx head screwdriver, metal and plastic prying tool, and a magnetic arrangement pad.

Werkzeuge

Schritt 1

Remove the three rubber footings by prying from the bottom cover using the plastic opening tool.

Schritt 2

Remove the three 24 mm screws from the bottom cover using a Phillips #2 screwdriver.

Schritt 3

Remove the bottom cover by lifting it up from chassis.

Schritt 4

Remove the three wires connecting the outer cover and front I/O port to the internal components (front usb and auxiliary assembly).

Schritt 5

Remove the outer cover by gently pulling apart and pulling away from the chassis.

Schritt 6

Remove rear I/O bezel using plastic opening tool to pry apart the four clips holding the I/O bezel to the chassis.

Schritt 7

Remove all other remaining cables from unit using the plastic opening tool to carefully pry apart the connections.

Schritt 8

Remove the HDD by first using the Phillips #2 screwdriver to remove the four 23 mm screws holding together the assembly and then pulling the HDD out of the chassis.

Schritt 9

Remove the three 24 mm screws that connect the top cover to the chasis inside the HDD compartment using theTorx #15 screwdriver (an extension and torque lever might be useful).

The image is misleading - the screws are inside the chassis.

Jay Marble -

Schritt 10

Disconnect the microphone computer chip from the internal components by first peeling away the black adhesive holding the wires to the chassis and gently pulling the chip and wires from its connection.

This is the wifi module, not a "microphone computer chip." The wifi module does not need to be removed, the antenna leads can be disconnected, leaving the module attached to the motherboard.

Jay Marble -

Schritt 11

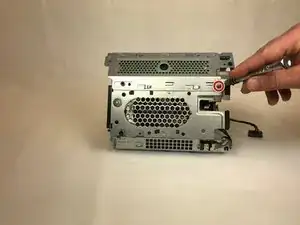

Remove the top bezel from the unit using a Torx Head #15 screwdriver to remove three 24 mm screws and a Phillips Head #00 screwdriver to remove the single 24 mm screw around the outside edge of the chassis.

Schritt 12

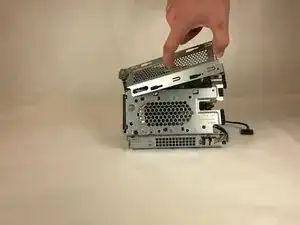

Remove the top chassis cover from the main chassis using the Torx Head #15 screwdriver to remove the nine 24 mm screws and then use the metal prying tool to pry the top chassis cover from the clips holding it to the main chassis and lift carefully away from internal components.

Schritt 13

Remove the speaker by removing three 24 mm screws using the Torx Head #15 screwdriver and carefully lifting up and out from internal components.

Schritt 14

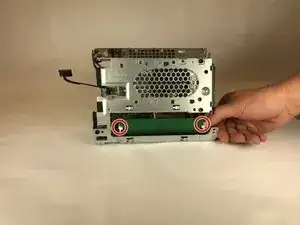

Remove the memory cover by removing the single 24 mm screw holding it to the main chassis using the Torx Head #15 screwdriver and sliding it up and out of its locking clips.

Schritt 15

Remove the memory circuit board by pushing down on the white tabs on either side of the memory circuit board until it slightly pops up.

Schritt 16

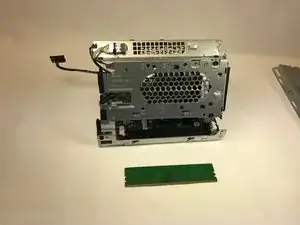

Lift the memory circuit board up and out of its connection, and out of the main chassis.

Schritt 17

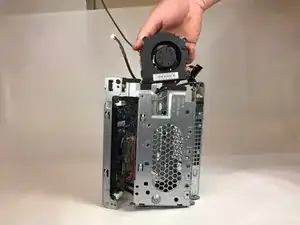

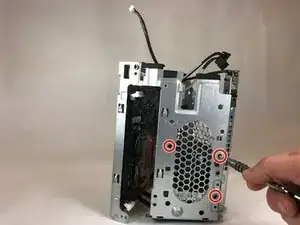

Remove the fan by removing the three 23 mm silver screws that hold the fan to the chassis using a Phillips Head #0 screwdriver.

Removal of the fan is only required if the fan needs to be replaced. Note there are two positions for fan mounting, depending on the heatsink size. The fan must always press against the heatsink.

Jay Marble -
