HP Pavilion Wave 600-a014 Mouse and Keyboard Replacement

Geschrieben von: Kyaw Soe
  • Kommentare: 3
HP Pavilion Wave 600-a014 Mouse and Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 - 5 Minuten

Einleitung

HP Pavilion Wave comes with a pair of built-in mouse and keyboard. This guide shows you how to replace them without using any additional USB-port for your mouse and keyboard.

  1. i5xKqOyBGsox1EjG
    i5xKqOyBGsox1EjG
    INEY3kyHRWYAn2kA

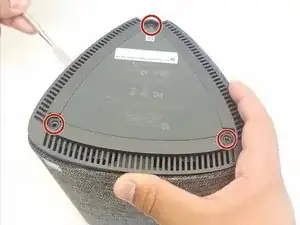

    • Turn over the computer and remove the rubber feet.

    • Remove the 8mm Philips screws indicated in red circles with a Philips #0 screwdriver.

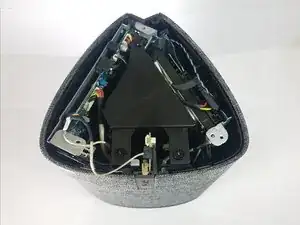

    • Use a pry tool and lift the lid.

  2. KhQ2M1AJXrFms3lO
    KhQ2M1AJXrFms3lO
    T6yupLkFw1yk241k

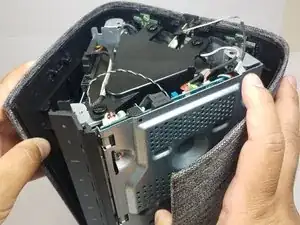

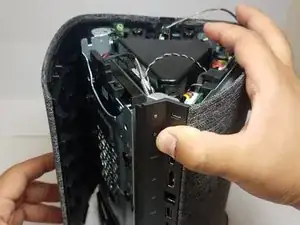

    • Pry open the casing from the back of the IO panel, as shown in the pictures.

  3. rSgT1DoLy5DhRIje
    rSgT1DoLy5DhRIje
    KNgkvR6vjcDoJAyg

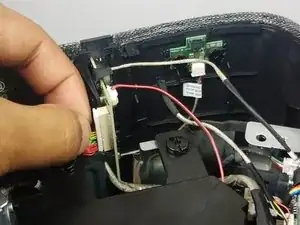

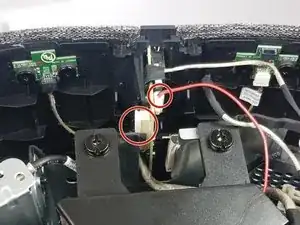

    • Finally, remove the two cables circled in red from the front IO panel.

  4. Ds43JKqQVUXDbBll

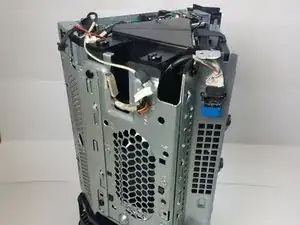

    • Locate a blue USB adapter on the left side of the hard disk compartment.

  5. ZealvlxBJtIZqYDA
    ZealvlxBJtIZqYDA
    JuIn2NYWjJ262cMT

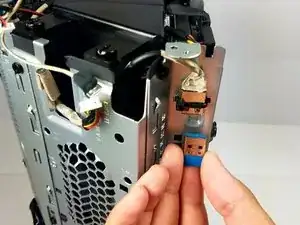

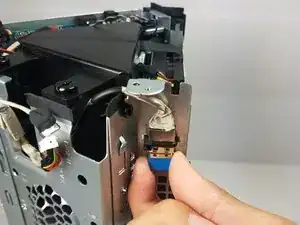

    • Take off the USB with gentle but firm pressure.

    • This is a single USB adapter for both mouse and keyboard, so you must get a wireless mouse and keyboard pair, or you will have to use the extra USB for the other one.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kyaw Soe

Mitglied seit: 28/09/17

321 Reputation

3 Kommentare

Seems like there might be enough room for a usb 2 port hub/splitter (such as Onvian USB Splitter Cable Male to 2 Female Adapter USB) to add an additional usb dongle (such an RF or Insteon USB)? Can you confirm how much room there are?

thomastranrx -

Since it's a year old project, I forgot most of the dimensions, but from my memory, it would be possible since it's located in a little groove that can probably fit a wire or two. (You can see it in step one picture)

Kyaw Soe -

Can i purchase this dongle anywhere? Is there any documentation on how to pair?

will -
