HP Pavilion dm4-1265dx RAM Replacement

Geschrieben von: Ethan Redfern
  • Kommentare: 0
HP Pavilion dm4-1265dx RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

If your HP Pavilion dm4-1265dx laptop has a portion of its original RAM capacity or no longer boots citing a POST failure, use this guide to replace the RAM.

Computer RAM is used to store information that your computer needs quick access to. Faulty RAM will prevent your device from booting.

Keep in mind that this device has two RAM sticks and if only one fails, the device will still turn on. Both sticks failing at the same time is unlikely and is probably the result of a different issue.

Before beginning, make sure to power off your laptop completely and disconnect from any external power source.

  1. nmgPMkbs4g1EFB3n

    • Flip the laptop over so the bottom is facing up.

  2. tJVQrZENQAggMqFT
    tJVQrZENQAggMqFT
    3KCKLVPNEsXn3Rtm
    yZSDqVZQVqBIFb4k

    • Push the sliding lock to release the battery.

    • Remove the battery by lifting it away from the device.

  3. afxRaZSKTFpOpRsB
    afxRaZSKTFpOpRsB
    YFNdv6tin1lc2tSC

    • Orient the device so that the empty battery port is closest to you.

    • Loosen the two captive screws holding the back panel in place using a Phillips #0 screwdriver.

  4. 4Qpd3pgCQxTNixXO
    4Qpd3pgCQxTNixXO
    aiMhXV1epjpytdZq
    LIh4CTewJmJEVXTV

    • Pull back and lift the back panel to remove it from the device.

  5. 6UCC52sag4Sd3sxX
    6UCC52sag4Sd3sxX
    LIO13REdTpx4cSkG
    idDJcTIxyWmvfCRB

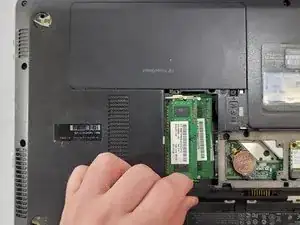

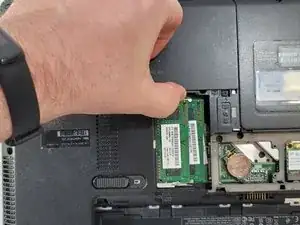

    • Push the two clips on either side of the top RAM stick away from each other.

  6. mykhlHxRQJ1Y6OoD
    mykhlHxRQJ1Y6OoD
    FyIBUTqJ2Gw6vWGZ
    kKY2nKpIVCRNNilQ

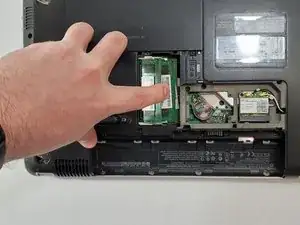

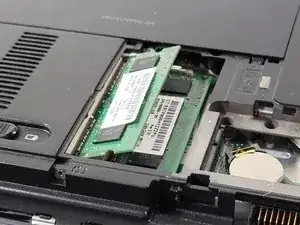

    • Pull the top RAM stick upwards.

    • The RAM stick should be at an angle to the device.

    • Gently pull the RAM stick away from the socket.

  7. d3ZX5yyFNimfJYbM
    d3ZX5yyFNimfJYbM
    ttDqFCxIUGYI5puH
    5YkqUdMUY33g1OUB

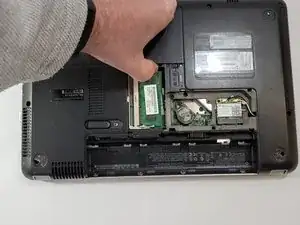

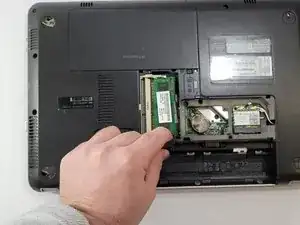

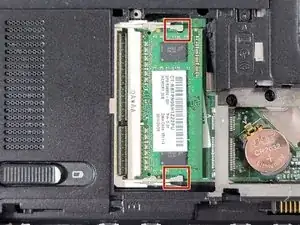

    • Push the two clips on either side of the lower RAM stick away from each other.

  8. fLmuUB2YLKKPNOYl
    fLmuUB2YLKKPNOYl
    IPdZN1KGOfQbO1wV
    TawmeVYJ3HfZKPIL

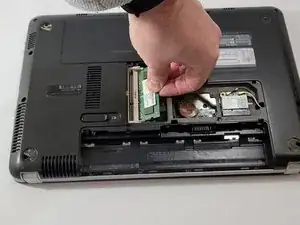

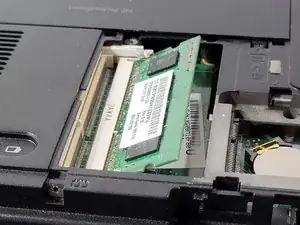

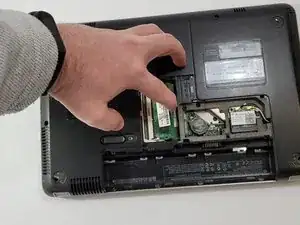

    • Pull the lower RAM stick upwards.

    • The RAM stick should be at an angle to the device.

    • Gently pull the RAM stick away from the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
