HP Pavilion dm4-2015dx CD Drive Replacement

Geschrieben von: Jacob Meloche
  • Kommentare: 0
HP Pavilion dm4-2015dx CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. FeQ2XNlNs3UJWAIo

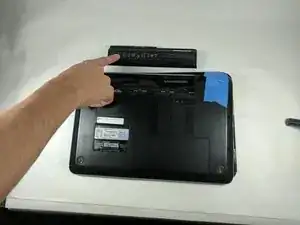

    • Locate and remove the battery from device

  2. RIkCyRVMuj4JRQUF

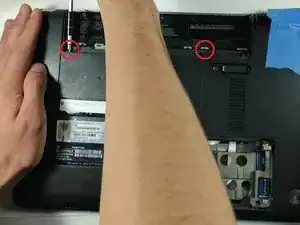

    • Use a Phillips screw driver to remove the the two screws that hold the service cover in place.

    • Remove the service cover.

  3. JRF2BUxNnRNKHHWc

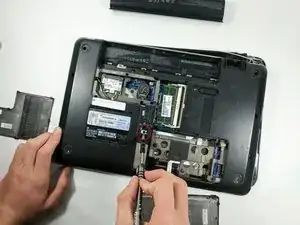

    • Remove the screw that locks the CD drive in place

  4. XTvwpEZofWKmYNDP

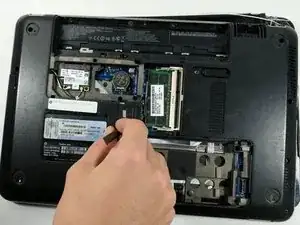

    • Push on the rear end of the CD drive with a small non-metallic item to free it from the case

  5. ttElWSv1N6kbehBq

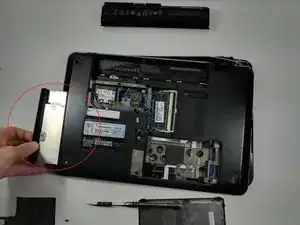

    • Pull the CD drive out

Abschluss

To reassemble your device, follow these instructions in reverse order.
