HP Pavilion dv1000 Back Cover Replacement

Geschrieben von: Ross Johnson
  • Kommentare: 0
HP Pavilion dv1000 Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

10 Minuten

Einleitung

This guide will show how to remove the back cover from the laptop in order to access the parts inside the computer.

The back cover must first be removed before the CD drive, fan, and heat sink can be removed.

  1. OpWClk3cCGAuGytM

    • Shut down the computer.

    • Disconnect all external devices and cables from the computer.

  2. xU4QwJXFC6ouAuOd

    • Flip the laptop over.

  3. fPkoOQHwcdlD3TsT
    fPkoOQHwcdlD3TsT
    uRRGtBAikVu4uigw

    • Locate the gray sliding tab next to the black bar where the battery is located.

    • Slide the gray sliding tab to the left until you hear a distinct click.

    • The inside edge of the battery should pop up.

  4. xIXu2QMKHbBtDKcl
    xIXu2QMKHbBtDKcl
    HKWvTxIAliDlS3Ej
    wJCAsiN4QOdHTZJg

    • Grasp the inside edge of the battery.

    • Lift the inside edge of the battery up to detach the battery from the laptop.

  5. FqheCJjk2ZF4IU2O

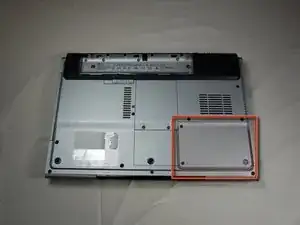

    • With the battery removed, locate the hard drive access panel.

  6. RQxgI4sPHTHhvZkt
    RQxgI4sPHTHhvZkt
    1x5CfZOAK3s5niLQ
    kmmnDRCKEu5pHcIa

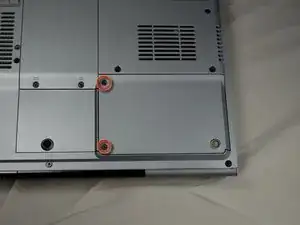

    • Identify the two screws that attach the hard drive access panel.

    • Remove the identified screws with your #00 Philips screwdriver.

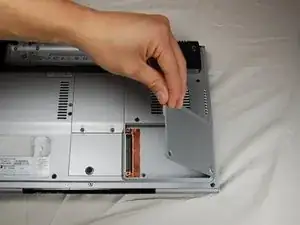

    • Lift the left edge of the access panel up and to the right to detach the hard drive access panel from the laptop.

  7. FMMs4A4oFNjsVcbU

    • This particular laptop does not contain a hard drive-- yours will.

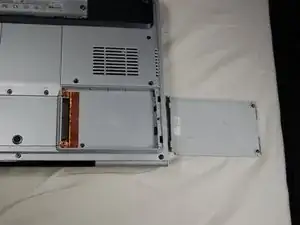

    • Identify the plastic tab located on the left side of the hard drive.

    • Grasp the tab, gently lift up, and slide the tab to the left to remove the hard drive from the laptop.

    • If you wish to replace your hard drive with another, the hard drive has a metal bracket screwed onto the sides of the casing. Unscrew the bracket from the old hard drive and screw it onto the new hard drive before inserting into the laptop.

  8. nDjwR5YeYMdpyefc

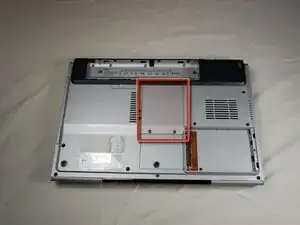

    • Locate RAM access door on the bottom side of the laptop.

  9. HQAZNUc6JkLHcQiI
    HQAZNUc6JkLHcQiI
    fpPPF1Agqiwr4EvJ
    QyJMeNbfIrAXlwEb

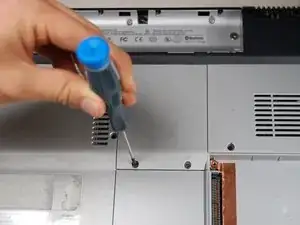

    • Locate the two screws holding down the RAM access cover

    • Unscrew the two screws with a size 00 Philips screwdriver.

    • Note: The screws do not detach from the cover.

  10. VtS1JaepsqoIlhCj
    VtS1JaepsqoIlhCj
    nrQGmAAvFodNNcTK

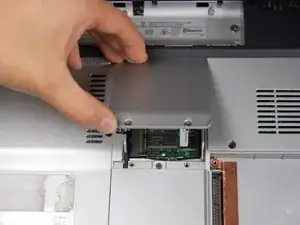

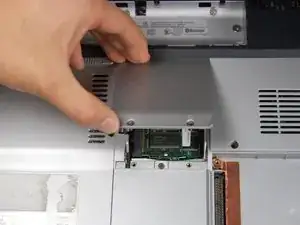

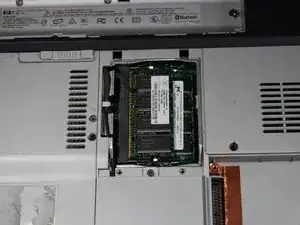

    • Lift up on the screw side of the RAM access cover to remove it.

  11. BYJNdHtELovUjKJh
    BYJNdHtELovUjKJh
    oLpbZ2CS2UYFaHhF

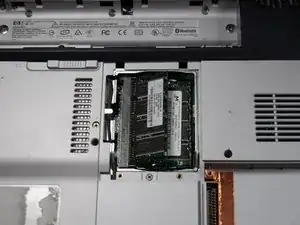

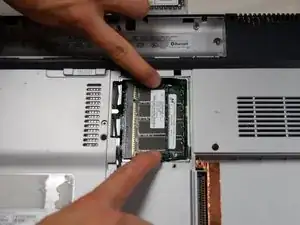

    • Gently pull apart the metal tabs located on both sides of the stick of RAM.

    • The RAM stick should tilt upwards.

  12. CjSDFCWK6u1Dpyrf

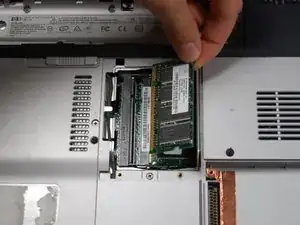

    • Gently lift the the RAM up and out of its seat.

  13. WlMLvDlJGlT4cP1Z

    • Repeat the previous two steps for the remaining stick of RAM.

  14. XDg15LwaBbQqguiK
    XDg15LwaBbQqguiK
    qIKOr3DEEHCo4ktl
    wOXHLnlOPUux1AkI

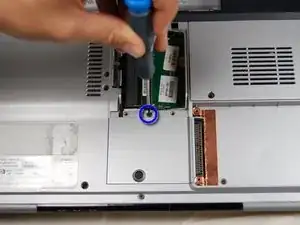

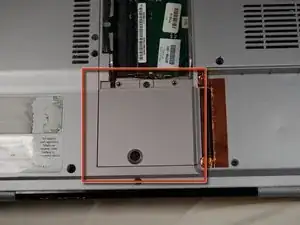

    • Locate the small panel below the panel you just removed.

    • Loosen the one screw in the middle with a #00 Phillips screwdriver. Again, the screw will not fall out of the panel when loosened.

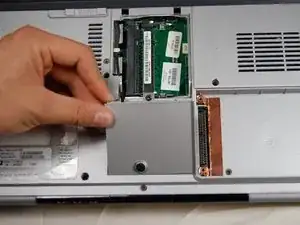

    • Lift the panel up and out of its slot to remove.

  15. UGLkiUBHej1ZproZ
    UGLkiUBHej1ZproZ
    vZqMlFDUiFBA1NGd
    6UHhV4sCKIwNfFLd

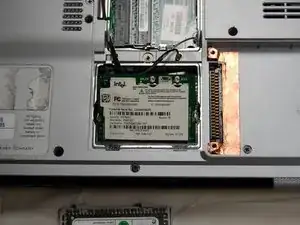

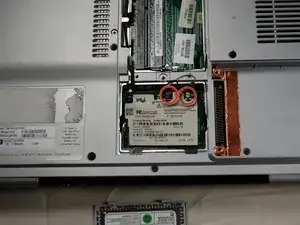

    • Identify the two connections at the top of the bluetooth card.

    • Using your fingers, gently pull up on the white clip until it releases.

    • Remove the black clip in the same manner as the white clip

  16. 1PepKpm5lyAtGJ1u
    1PepKpm5lyAtGJ1u
    I4XThKJVRc26Ooml
    WIIdUEZOfXs2eZOo

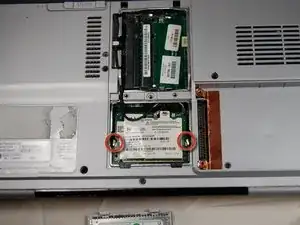

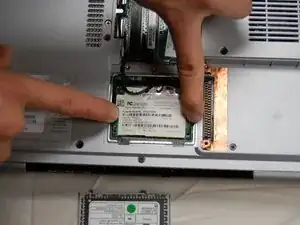

    • Locate the two clips on either side of the Bluetooth card.

    • Using your fingers, press the clips outwards, away from the card until the card pops up.

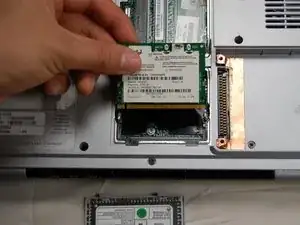

    • Grab the card gently from the top and pull the card up and out of the slot.

  17. SiMxwa4PcCLW5vFE
    SiMxwa4PcCLW5vFE
    yvaMnTGd1hBQvCdh

    • Remove and set aside all of the highlighted screws in the first picture with a #00 Phillips screwdriver.

    • Remove and separately set aside all of the highlighted screws in the second picture with a #00 Phillips screwdriver.

    • Caution: There are two more screws to remove, so do not try and remove the back cover yet.

  18. TIvqwAR5T41H2vcV
    TIvqwAR5T41H2vcV
    T22IQtxGfRGTDYZT
    mDRcEPT2ZREpLRVu

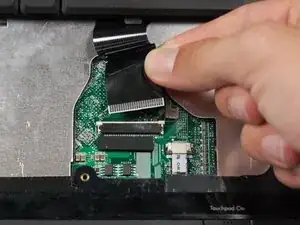

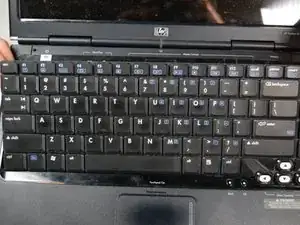

    • Turn the laptop right side up, and open it to reveal the keyboard.

    • The keyboard should lift up and out easily, but be careful because it is attached to the computer by a ribbon cable.

    • Press the two white clips forward and lift the tape out of the clip.

  19. 2m2Tld1flg5unDoB
    2m2Tld1flg5unDoB
    hFGMLKsIqFMPbI1H

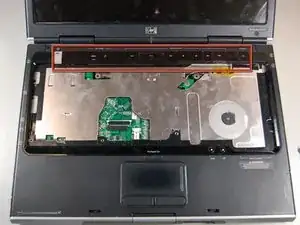

    • Locate the MediaKeys. They are the black strip right above where the keyboard was.

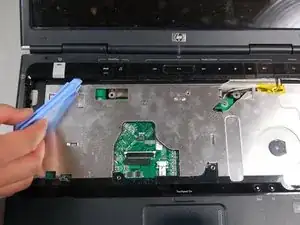

    • Using the spudger, gently pry up the MediaKeys.

    • If you feel any resistance, stop and check you have removed all of the screws from the battery compartment.

  20. SQmtxuOKaY5xsdxE
    SQmtxuOKaY5xsdxE
    jAWa65MWrn5U6sV3

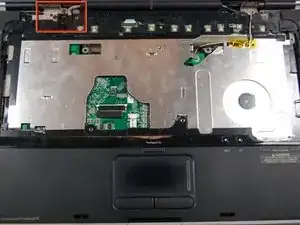

    • Remove the two screws next to the left hinge of the monitor with a #00 Phillips screwdriver.

    • Keep these screws separate from the other screws you have removed.

  21. VWMVqNFijx4oehvO
    VWMVqNFijx4oehvO
    YeHoSQ2H6swTI3qR

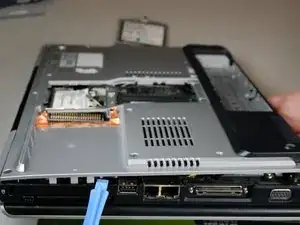

    • Using the spudger, loosen the casing behind the battery and the two sides.

    • The case should lift easily upwards and outwards towards you if you are facing the battery compartment.

    • Make sure the cord that was attached to the Bluetooth cable is not still threaded through the case when trying to remove it.

    • If you feel any resistance, stop. Do not force anything. Go back through the steps and make sure you loosened everything.

Abschluss

To reassemble your device, follow these instructions in reverse order.
