HP Pavilion dv2000 Keyboard Replacement

Geschrieben von: Erik Muniz
  • Kommentare: 1
HP Pavilion dv2000 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 - 30 Minuten

Einleitung

If your keyboard isn't responding and you want to replace it or if you want to remove your keyboard to clean it, then consider the steps in this guide

  1. GpLqAGtLBFxIpod5
    GpLqAGtLBFxIpod5
    UEIHYMEPlMtjXTQP

    • Make sure your computer is powered down and unplugged from the charger before removing any components.

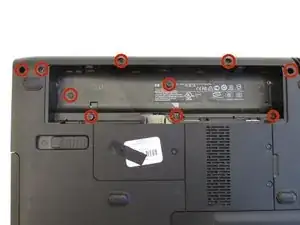

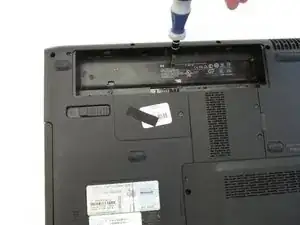

    • Remove the ten 8.9mm screws (underneath where the battery would be) holding the keyboard and bezel in place.

  2. UFSCrldAZZLeHKfF
    UFSCrldAZZLeHKfF
    LhNgBUWODo62sRaq

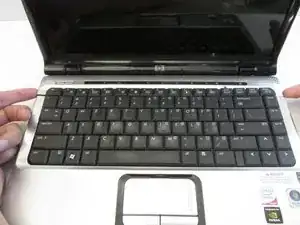

    • Flip the computer over to the front (keyboard-side up).

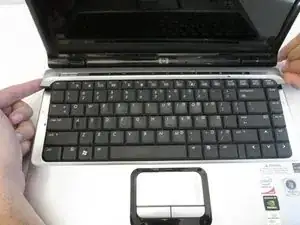

    • Gently pop the bezel off by reaching underneath it and pulling up.

    • If you are doing this for the first time, the bezel may require you to exert a little bit more force to remove it.

  3. dIb6PNALAyTh12Eu
    dIb6PNALAyTh12Eu
    yDBKDAy4fBVZFdoq

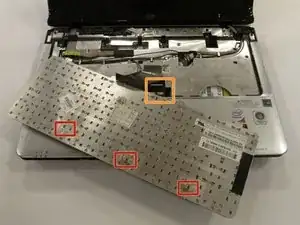

    • The keyboard is held in by three small tabs near the bezel of the computer. Lifting the bezel frees the three tabs.

    • If you are removing the keyboard, the tabs will require a bit more upward force to pull away from the keyboard.

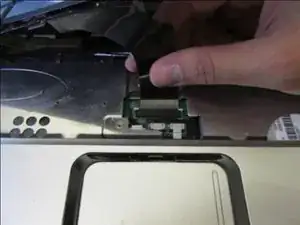

    • Remove the ribbon connecting the keyboard to the computer by pulling back on the ribbon (away from the track pad).

Abschluss

To reassemble your device, follow these instructions in reverse order.
