HP Pavilion dv2913cl RAM Replacement

Geschrieben von: Jeremy Jackson
  • Kommentare: 0
HP Pavilion dv2913cl RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

We will be opening the center panel and removing the two RAM cards.

  1. D65NBxXjiEZDNf2k
    D65NBxXjiEZDNf2k
    YeJKmAGvaGlQqKQ1

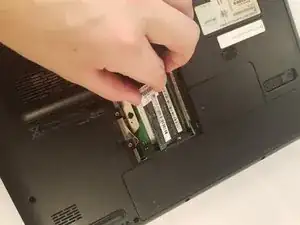

    • Unscrew the two screws on the center panel of the device .

    • Then gently remove the center panel.

  2. M425hCasirLKmsNN
    M425hCasirLKmsNN
    imIYLpoRuSNWr6ip
    uoDRFfZJLXw3YJK3

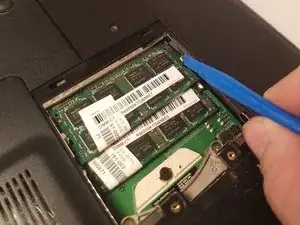

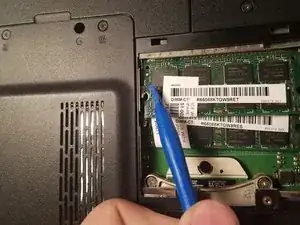

    • Gently push the silver clamps on both sides of the RAM stick on top.

    • Pushing the clamps back could damage the device. push far enough to remove the RAM card.

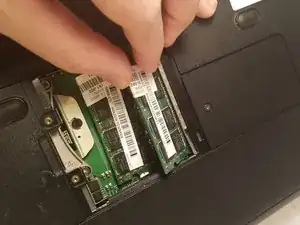

    • Now remove the RAM stick on top from the device.

  3. UxrXJT6VtspUbcNa
    UxrXJT6VtspUbcNa
    VZEMPVO5gCFMdDDS
    1SPgcxPQ2hcTQmTN

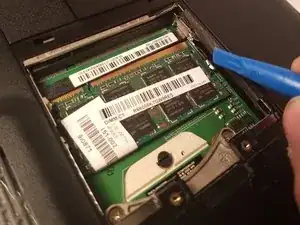

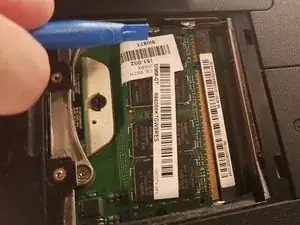

    • Gently push the silver clamps on both sides of the bottom RAM stick.

    • Pushing the clamps back could damage the device. Push gently just far enough to remove the RAM stick.

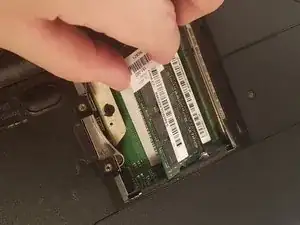

    • Now remove the bottom RAM stick from the device.

  4. Lb2hSNMCxk6GtZHs

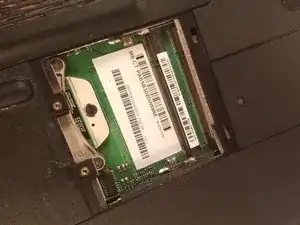

    • this is the device with both RAM sticks removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
