HP Pavilion dv2913cl WiFi receiver Replacement

Geschrieben von: Adam Braga
  • Kommentare: 0
HP Pavilion dv2913cl WiFi receiver Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

This guide will accomplish replacing the WiFi receiver in incidents of failure.

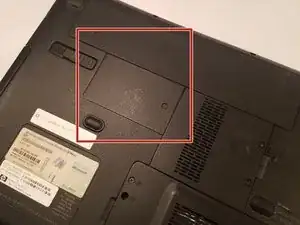

  1. MPlwCglFAP3DBSOV

    • Begin by locating the smallest panel with one screw attaching it to the laptop computer.

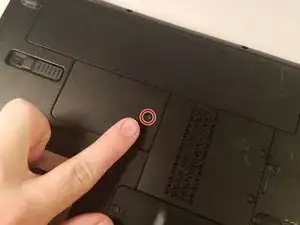

  2. qQ4NhXmoHlKPCtXB

    • Remove the one screw holding the panel down, and the WiFi receiver will be revealed.

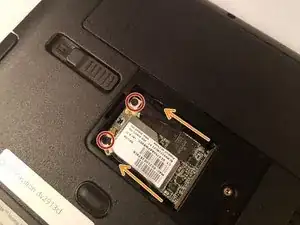

  3. RgxHkCVPTLhBgfjy

    • Remove the two screws that hold down the receiver.

    • Gently slide the chip out of the socket.

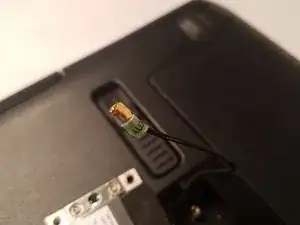

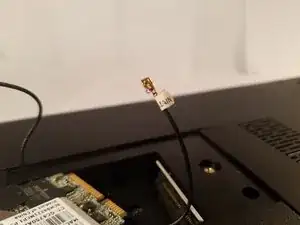

  4. 4Xh62eJxvBOFCWfv
    4Xh62eJxvBOFCWfv
    P65ORjy5v1cjcwNR

    • Remove the two wires labelled AUX and MAIN from the chip.

    • Remember where these were attached previously as it is important for proper functionality after the replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
