HP Pavilion dv4-4141us Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

Is your device constantly overheating or having trouble with cooling down? If so, the fan in your device may be faulty and needs to be replaced. Follow the instructions in this guide to remove and replace the fan in the HP Pavilion dv4-4141us laptop.

  1. J3qldQxcpHZ5QXcy

    • Lift up the back panel using a spudger, and remove it from the device.

  2. NdtVoRpG4tfCmGIx
    NdtVoRpG4tfCmGIx
    cY1uC4pvlZdGpmEF
    gud5ACXushsuSFTR

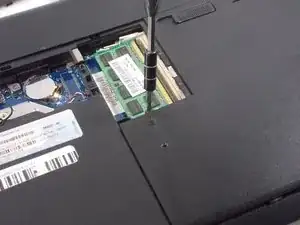

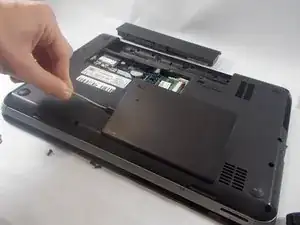

    • Using the Phillips #1 screwdriver unscrew the panel from the computer.

    • Lift the panel up and remove it from the laptop.

  3. uxHBTJ1dwuaVHnyT
    uxHBTJ1dwuaVHnyT
    xeSKA4w2OJRfN41K
    JQph4iPHh3PQOhip

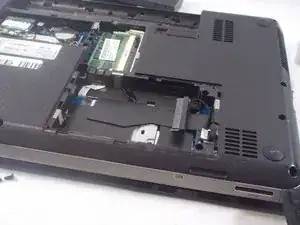

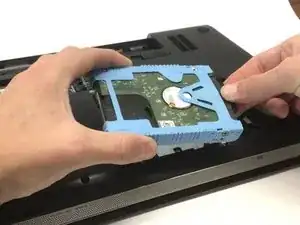

    • Use the spudger to lift the left side of the hard drive.

    • Unplug the hard drive and remove it from the device.

  4. DBHwQHIB51FfNfDp
    DBHwQHIB51FfNfDp
    x4DxoMFlWXYPHILP

    • Use a Phillips #1 Screwdriver to remove all the screws indicated in the pictures.

  5. MVGSAyMMl3q2Vbkc

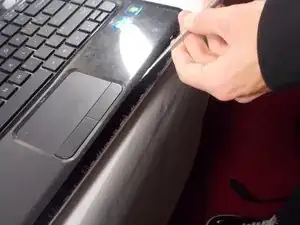

    • Use opening tool to separate the Key board and mouse pad.

    • It would be best to find a tool that is small enough to fit and start on the bottom at either corner and slide across lifting the panel up.

    • Be careful not to push too far underneath to not damage the interior and also it is advised to not bend or crack the plastic back cover.

  6. GYb42pJBPGhesfqk

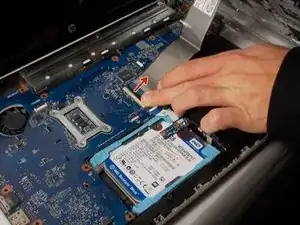

    • Use a spudger to gently lift the white plastic flap and release the ribbon cable holding the keyboard in place.

  7. 3xYGOLXdsJWgFVuV
    3xYGOLXdsJWgFVuV

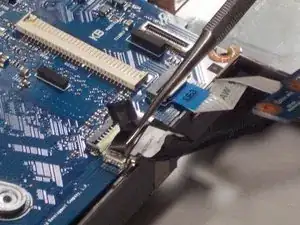

    eJZC3bU6W5Pktrgr

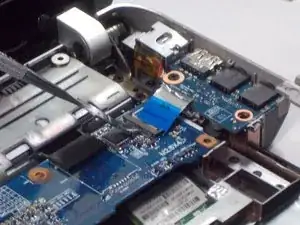

    • Use the spudger to lift up the flap and release the cable for both of these two separate components.

    • Be extra careful not to break these clips as they are fragile and are a part of the motherboard.

  8. Nd3ip5yP5kCOwDFn

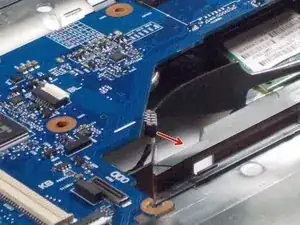

    • Unclip the last wire holding the motherboard in place. To do this pull down on the wire in the direction of the arrow.

  9. Ku4UdTTILcnZAgES

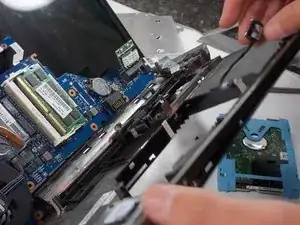

    Ku4UdTTILcnZAgES

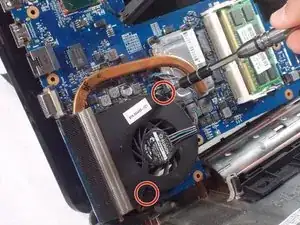

    huf6LSbsAwInSNxG

    • Take out the mother board and flip it over so that you can access the fan.

    • Unscrew the two screws holding the fan in place.

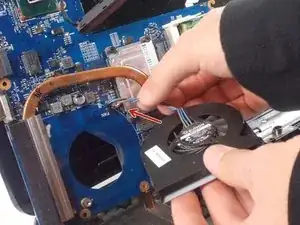

  10. Ht4vKCM6NePH64X5

    • Release the fan from the motherboard by disconnecting the wire from the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
