HP Pavilion dv4000 CD/DVD drive Replacement

Geschrieben von: Nick LaMarche
  • Kommentare: 1
HP Pavilion dv4000 CD/DVD drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

Replacing the DVD drive involves removing the hard drive, but you do not need to open up the whole computer.

  1. aTXeJNlKuR4jFAlj

    • Turn the laptop upside down with the battery compartment facing you.

  2. tlWv1RkHSvND3qRB

    • Slide the battery release latch to the right and hold in place.

  3. LgOaNBemmKMtydZd

    • Lift the front edge of the battery up and remove it from the compartment.

  4. VYemiQuKS6ALRQmU

    • Orient the laptop with the hard drive panel towards you.

  5. gHFw5Dc5OLHQ5BoX

    • Unscrew the two 2x5mm screws with a #00 Phillips screwdriver.

  6. 5EDgxsI6JCudqpGG
    5EDgxsI6JCudqpGG
    SUdWODiwJNcejfRf

    • Lift the cover up by the tab near the screws.

    • The cover can be removed from the laptop.

  7. gdsT4mbJZyfNVPBv

    • Grab the hard drive from the sides and slide it away from the connectors.

    • The hard drive should disconnect with light force. If it doesn't easily slide out, ensure there are no cables or obstacles preventing it from moving.

    • Lift and remove the hard drive from the laptop.

    • We did not have a hard drive in our laptop to demonstrate how to remove it.

  8. ahxWs2WB1LR4dGo6
    ahxWs2WB1LR4dGo6
    Txu2dTI2SRgaPVCP

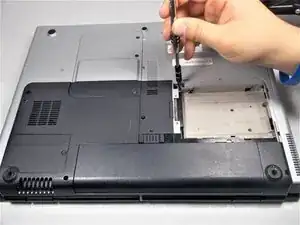

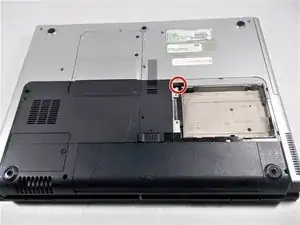

    • Locate the one 2x5 mm screw in the hard drive bay.

    • Unscrew the screw with a #00 Phillips screwdriver.

  9. cJMg1CpdBN4xSlqV
    cJMg1CpdBN4xSlqV
    TbMVZuCtAekHDDL2
    6sYBBMuSDCrugseH

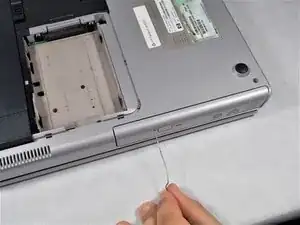

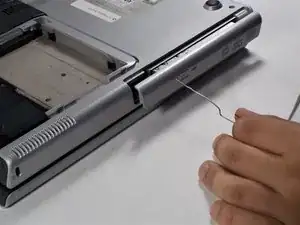

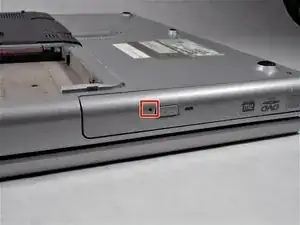

    • Locate the hole next to the DVD drive release button.

    • Insert a paperclip into the hole to release the DVD drive.

  10. LAMj6gJ4hbhNbRMt
    LAMj6gJ4hbhNbRMt
    sYi1YeGCNmj6MWRJ

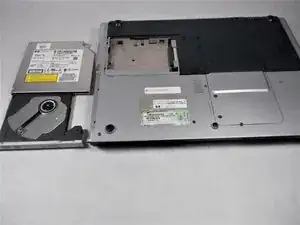

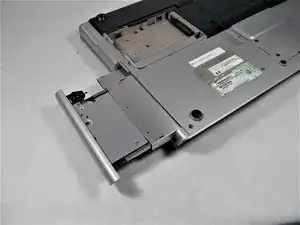

    • Carefully grasp the DVD drive and slide it out.

    Hai Thank you very much. This is a useful and helpful article created by you.

    With Regards

    Radhakrishnan

    Radhakrishnan -

Abschluss

To reassemble your device, follow these instructions in reverse order.
