  1. cZnhkfKw6cIqULBQ
    • Turn off the computer, and unplug it from all external power sources.

    • Lay the computer face-down on a flat surface. Orient the computer to match the image.

    • Locate the battery release switch, as indicated in the image by the red rectangle. Slide the switch from right to left, and remove the battery.

  2. bXkYDbjdvA6VDoWb
    • Remove the two 11.0mm screws at the corners on either side of the battery compartment. (shown by the red circles)

    • Remove the three 6.0mm screws. (shown by the blue circles)

    • Remove the two silver 5.0mm screws. (shown by the yellow circles)

    • Remove the 6.0mm screw in the middle of the battery compartment. (shown by the teal circle)

  3. UhVA1ROjb5MuvDNb
    UhVA1ROjb5MuvDNb
    i2hFMYUZsnESe2Pf
    YZt3OlbQZmyHRnqI

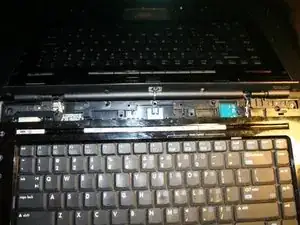

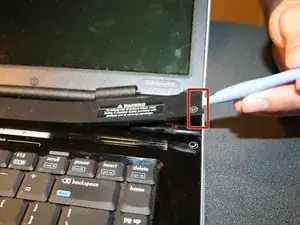

    • Lift plastic covering strip gently at the corner to separate the plastic it from the keyboard area.

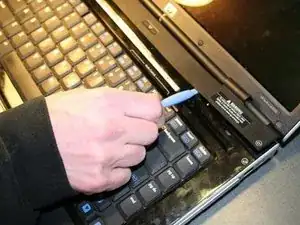

    • Slide a plastic separator tool along the strip and lift off to remove it.

  4. jC1qPoujYLeEJrqJ
    jC1qPoujYLeEJrqJ
    WEeFOHcO3M2eCH15
    ClkJU1H4BSCkNJ3i

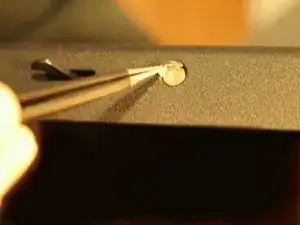

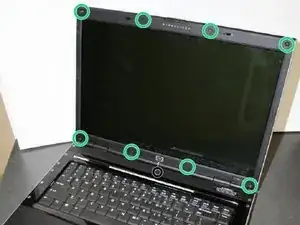

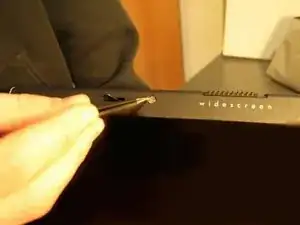

    • Using tweezers, remove the (8) silicone covers over the screws of the screen's frame.

    • The image still shows the plastic strip that was removed in the last step

    • Remove the (8) now-exposed screws.

  5. bL4DWRcv3VZ2pNXW
    bL4DWRcv3VZ2pNXW
    t1YjP1ckyBkCR5AA
    FUZO6XLVUPCe6WNX

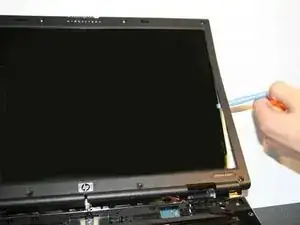

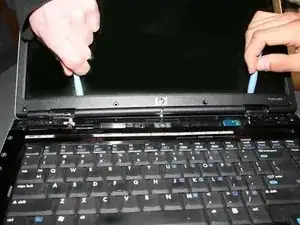

    • Using the plastic separator, make your way up from the bottom, separating the screen's frame off.

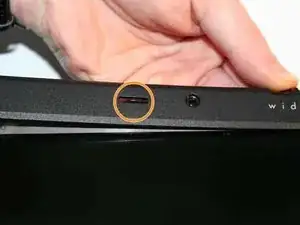

    • You may need to finagle the locking tab slightly in order to pull the frame away from it

  6. UIxVdFBobjyPRZCU
    UIxVdFBobjyPRZCU
    Q3eZmrdppyI5IcF6
    AAUmaLsbOTTuChFE

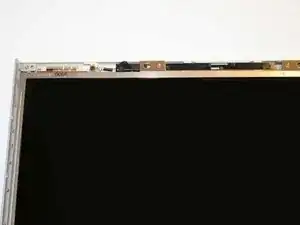

    • With frame removed, the locking assembly is visible

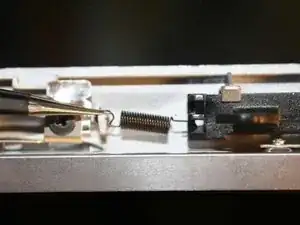

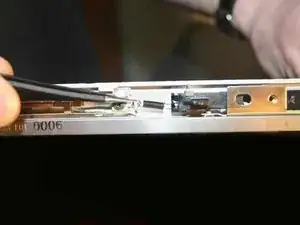

    • Using tweezers, pull the spring off the hook, and the locking assembly will pull down and off with little effort

    • Be sure not to drop the spring behind the screen while removing it!

  7. LBB3JcU2EGuseFNQ
    • Congratulations! You're ready to install the new assembly and reassemble your laptop!
