  1. cZnhkfKw6cIqULBQ
    • Turn off the computer, and unplug it from all external power sources.

    • Lay the computer face-down on a flat surface. Orient the computer to match the image.

    • Locate the battery release switch, as indicated in the image by the red rectangle. Slide the switch from right to left, and remove the battery.

  2. yBC1GU3lnlQbGbWj
    yBC1GU3lnlQbGbWj
    gweWfQchouBbCTIR
    bPTrZCevyKgBgECn

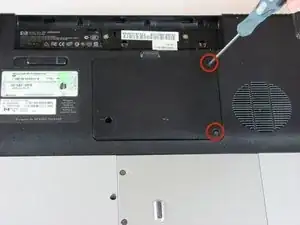

    • Remove the two 5mm Phillips screws on the right side of the RAM cover.

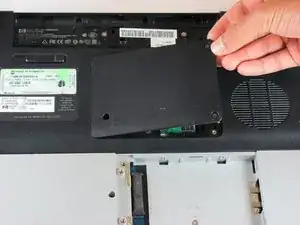

    • Lift the right side of the RAM cover, and remove it.

  3. D2uk3VsYgUkPjvZR

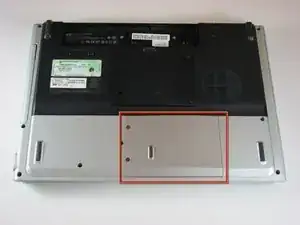

    • Locate the hard drive cover. Note that in this image, the RAM cover is still in place.

  4. jYdEFL2WLRjrgvta

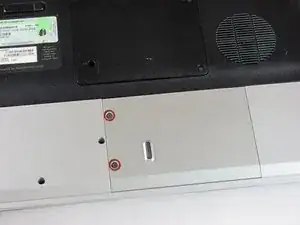

    • Remove the two screws securing the hard drive cover.

  5. 5G3LENYrwW2g4HMN
    5G3LENYrwW2g4HMN
    ZWSw4lMUgdYQTcIA

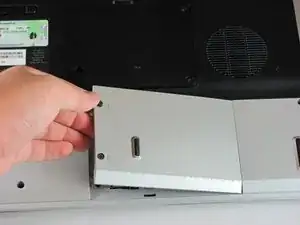

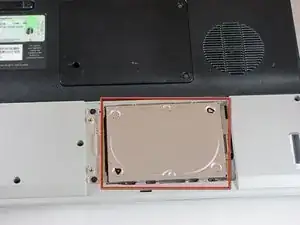

    • Remove the hard drive cover.

    • The hard drive is now accessible.

  6. QFRSsr2ATofUxHaE

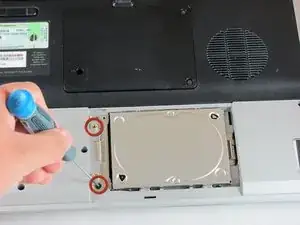

    • Remove the two 5.0mm screws securing the hard drive bracket.

  7. ZHvKSLTITx1NfWa5
    ZHvKSLTITx1NfWa5
    TrX4D3Z1yGRu4Qga
    3J1iNOas5u3EfFLw

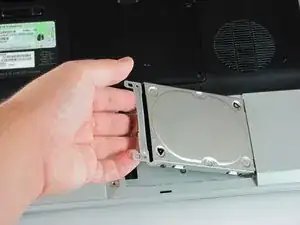

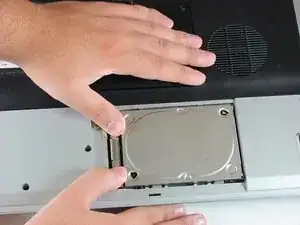

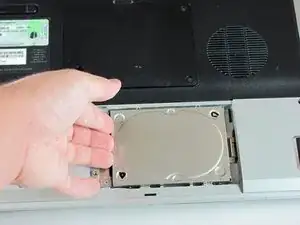

    • Slide the hard drive to the right until the edge of the hard drive is flush with the computer frame.

    • Lift the hard drive out of the hard drive bay, left side first.

  8. HCXBjXBHtCFJaYU2

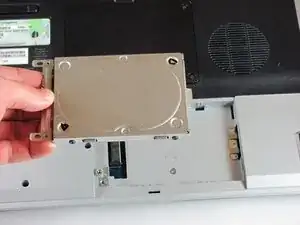

    • Remove the hard drive.

    • If you are replacing the hard drive, remove the four additional screws (two on each side) securing the metal shield to the hard drive. Then, remove the shield from the drive.

  9. Bp5cOJaNomrnGROw

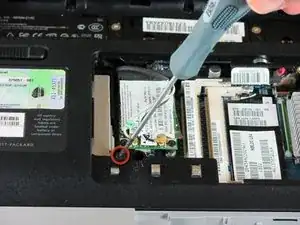

    • Remove the 11.0mm screw securing the optical drive to the computer.

  10. Gp5SnaCY26v4DgZK
    Gp5SnaCY26v4DgZK
    sWlplmUfOnWFvIZE
    aDcqhVJ2STgNLdAg
    • Locate the optical drive. The optical drive is located on the left side of the RAM bay.

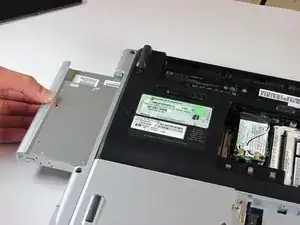

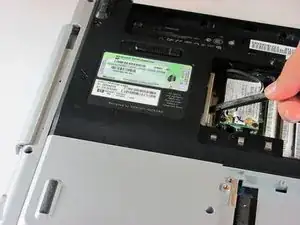

    • Press the exposed edge of the optical drive gently with the spudger until the drive releases from the computer frame.

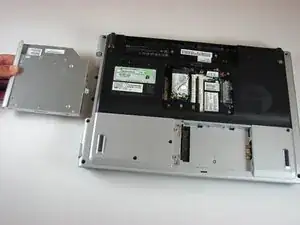

    • Pull the optical drive completely out of the computer frame.

  11. fPAbZDxTYcQUjpnW

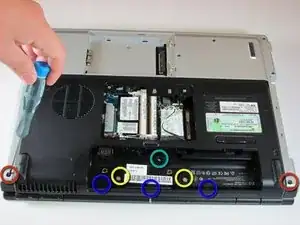

    • Remove the two 11.0mm screws at the corners on either side of the battery compartment.

    • Remove the three 6.0mm screws.

    • Remove the two 5.0mm screws.

    • Remove the 6.0mm screw in the middle of the battery compartment.

  12. DTHDPIAJxAM1Wlyi

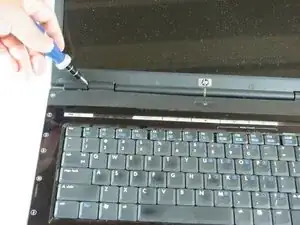

    • Turn the computer over and open the screen. This provides access to the screen hinges.

    • The keyboard switch cover is attached to the computer with a series of snaps. With a flathead screwdriver, pry up the switch cover until it pops free.

  13. 3G6LfhGVkYhyBC2W

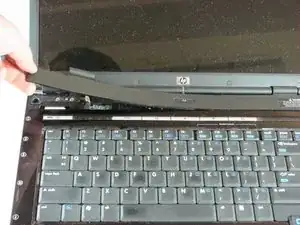

    • Be careful not to bend the keyboard switch cover too far when removing it.

  14. xBqHjmnZAGWjNMHT

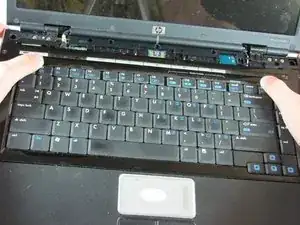

    • Next, remove the keyboard. Push on the keyboard frame above the function keys and slide the keyboard toward the screen.

  15. 2nuLyR3PUh6BjGob
    2nuLyR3PUh6BjGob
    rwJ1usc1yaiUb2VE

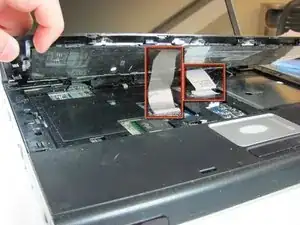

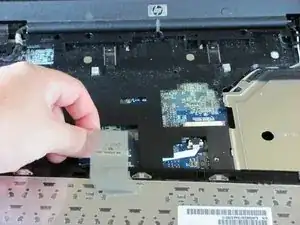

    • Carefully lift the trackpad-side edge of the keyboard to reveal the LED and keyboard cable connectors.

    • Detach the cable connectors from the computer by gripping each cable connector close to the computer contact point and pulling up gently.

    When reassembling, you need to push the little tabs next to the connector up before connecting the cable.

    Dimitri Cooper -

  16. SwrMOCZahJ1lfP2o
    • This step is for replacing the keyboard only. If you are not replacing the keyboard, skip this step.

    • Lay the keyboard face down.

    • Remove the four 3.00mm screws that attach the keyboard to the keyboard frame.

  17. wM34UlSYCVOMgug1
    • This step is for replacing the keyboard only. If you are not replacing the keyboard, skip this step.

    • Lift the keyboard off the keyboard frame.

  18. bRkFxrs1WdGVmEsY
    • Remove the two 3.0mm screws on the side of the laptop shown.

    • Remove the one 5.0mm screw in the hard drive compartment.

  19. YEFutAhMZDRGPODm

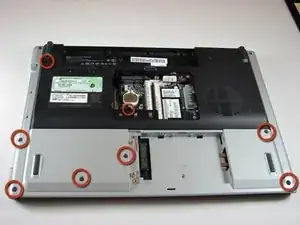

    • Remove the eight 10mm screws securing the top cover to the laptop.

  20. EHCSWwDyWwFvdCSY
    EHCSWwDyWwFvdCSY
    DYxlJiys3SQZdeqV

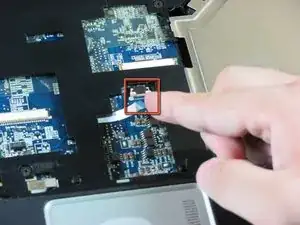

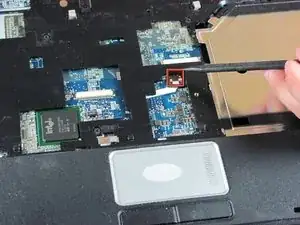

    • Flip the computer over and disconnect the Touchpad Cable.

  21. SRCPmsu1QMJJEpCh
    SRCPmsu1QMJJEpCh
    ns2PfwytKRZGtavF

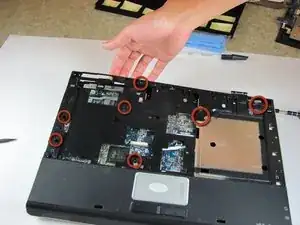

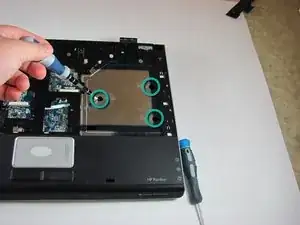

    • Remove the silver 5.0mm screws Located in the silver area of the top cover

    • Remove the seven 10.0mm screws located on the top cover.

  22. EiaCqmigCUiGDf23

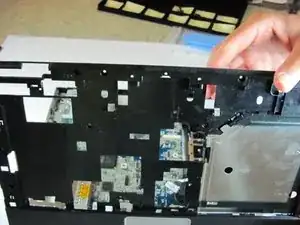

    • Lift off the top cover and remove it. Lift off from the back.

  23. oxDuP3oHD1QDR6kr
    oxDuP3oHD1QDR6kr
    eub3kuEeLrsgfmuQ

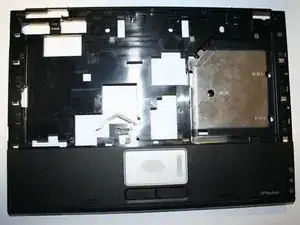

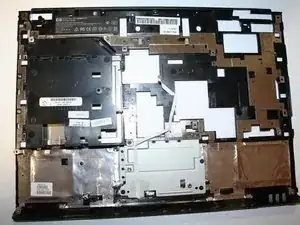

    • Congratulations! You're ready to install the new assembly and reassemble your laptop!

Abschluss

To reassemble your device, follow these instructions in reverse order.
