Einleitung

This guide will go through the steps required to disassemble the computer in order to reach the fan to clean or replace it.

You will need:

  • Phillips #00 screwdriver
  • Plastic Prying Tool
  • Spudger
  • If you are cleaning the fan, cotton swabs and rubbing alcohol.
  1. bE4v4osmAjXcCIsy
    • Shut down the computer and unplug it from the outlet.

    • Disconnect the power supply cord from the side of the laptop.

  2. NJZZruvHdEkReI6l
    • Remove the battery by sliding and holding the battery release latch to the left.

    • While holding the release, lift the battery away from the battery bay and set aside.

  3. 6BPHknW55cpNCfCq

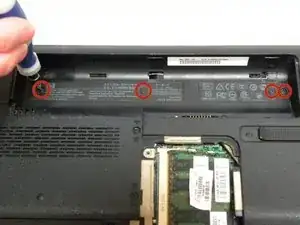

    • Remove four screws from the battery bay, using the Phillips #00 screwdriver.

    • The screws are 4 mm long and the heads are 4 mm wide.

    • All screw removal/loosening in this guide will require a Phillips #00 screwdriver.

  4. Zw5Mt2l2EXLW2sLc

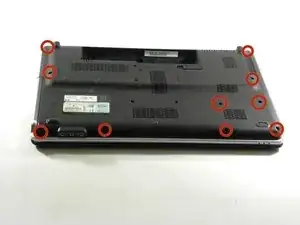

    • Starting with the four corners of the laptop, remove all remaining screws from the computer. There will be ten total screws to remove.

    • All ten screws are 7 mm long and the heads are 4 mm wide.

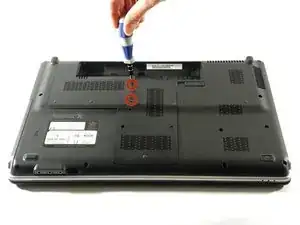

  5. wyvuhLbn6AaeyDxJ
    • Loosen the screws from the hard drive bay cover.

    • The screws will not come out all the way.

    • Remove the hard drive bay cover and set aside.

  6. fAAYVp3hCgrE14Ei

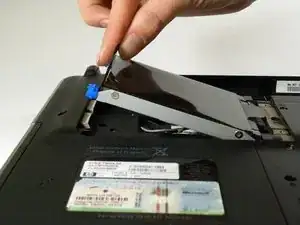

    • Remove the hard drive by using the Mylar tab and lifting gently, as it is still connected to the system board by the hard drive cable.

    • Be sure that the computer is turned off and unplugged before removing the hard drive.

    • Discharge yourself of static electricity before handling the hard drive.

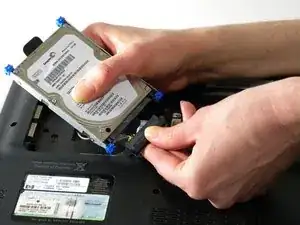

  7. M2q6Dc4UYYE33U2A
    • Disconnect the hard drive from the hard drive cable by pulling them apart at the connector. The cable can be difficult to loosen, so while being gentle, you will have to pull hard to disconnect the hard drive.

    • After removing the hard drive, do not touch the connector.

  8. 1nhHSaOOCTdOqiax

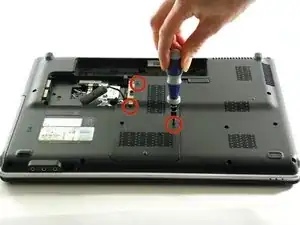

    • Loosen the screws from the memory module compartment cover.

    • The screws will not come out all the way.

    • Remove the memory module compartment cover and set aside.

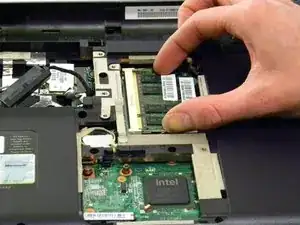

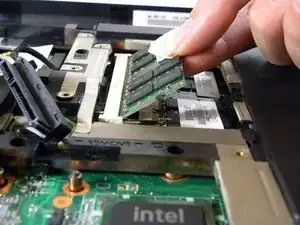

  9. E1tLNTnLVEfFhdT4
    E1tLNTnLVEfFhdT4
    jJNQ2MdNVC4a5SXV
    • Remove the two memory modules by spreading apart the two silver retaining tabs, using your thumb and index finger. Pull and lift the green memory module upward at a 45-degree angle, then pull the memory module out of the computer.

    • Repeat for the second memory module located directly underneath the first.

  10. HEOInJrdG56orvEn
    HEOInJrdG56orvEn
    CTREEX5Pb2iRPmAB

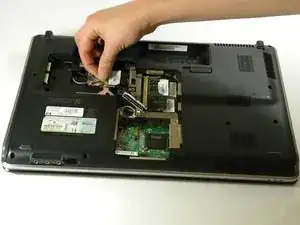

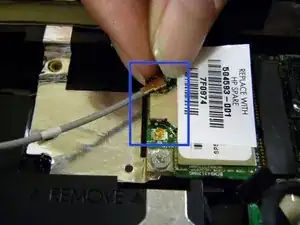

    • Disconnect both the black and white (or grey) WLAN antenna cables attached to the WLAN module by lifting gently at the gold base.

    • The cables have stickers labeled "1" and "2". These cables attach to the "J1" and "J2" on the WLAN module.

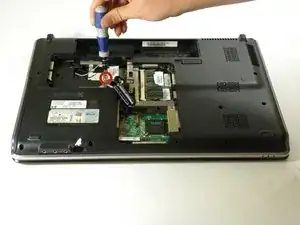

  11. QweXLEcmlfk6KH4x
    QweXLEcmlfk6KH4x
    ZAbxJ2JecOatOsNh
    • Remove the single silver screw from the WLAN module, and pull the module away from the slot at a 45-degree angle.

    • The screw is 4 mm long and the head is 4 mm wide.

  12. FoQXGTsWOVpN1S2F

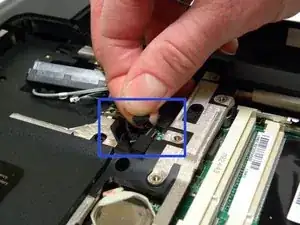

    • Remove the hard drive connector from the system board by lifting the Mylar tab.

  13. gpTAK3snucvRqESl
    gpTAK3snucvRqESl
    QQYZeafXogIfgfhI

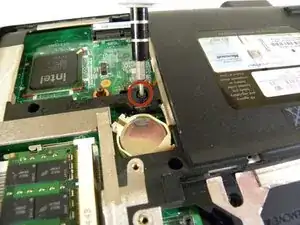

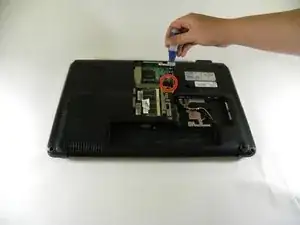

    • Remove the screw that secures the optical drive to the computer.

    • The screw must be fully removed for the optical drive to be properly removed.

    • The screw is 7 mm long and the head is 4 mm wide.

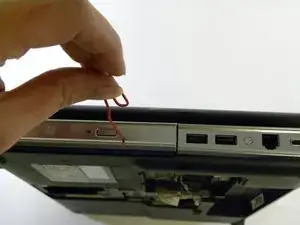

  14. dAqEtY6WUPrOkcjR
    • Insert a paperclip into the disk tray release access hole of the optical drive. The disk tray will eject automatically when the paperclip reaches the release.

    • Before removing the optical drive, be sure that a disc is not in the drive. Like all drives, optical drives are fragile, so handle with care.

    • Several attempts may be necessary to reach the disk tray release access hole, as it is located pretty far back within the optical drive.

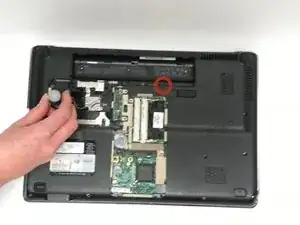

  15. T34jfTiXqXSm35wX
    T34jfTiXqXSm35wX
    iFTyLLEV35yhGah5

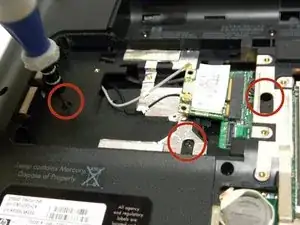

    • Remove the 4 screws marked with keyboard symbols. One is located to the left of the memory module, two are in the hard drive bay, and one is in the battery bay.

    • The screws are 7 mm long and the heads are 4 mm wide.

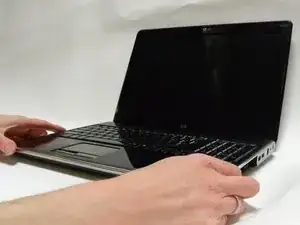

  16. 6APCCANU3Bo22FVr
    • Flip over the computer so that the keyboard is facing you.

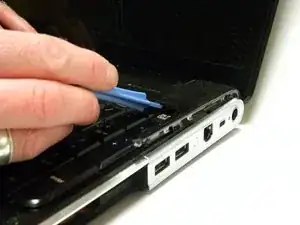

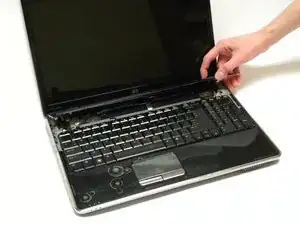

  17. hERlMiEWDbgOinnA
    hERlMiEWDbgOinnA
    HmoRFo3dmjRWXYZd
    • Using the plastic opening tool, loosen the switch cover by inserting the tool under the cover and gently pulling up until the switch cover releases. Begin at the top right-hand corner of the keyboard.

    • The switch cover will remain connected to the system board.

  18. v6ujNdUybCRqcira
    • While holding the switch cover up, remove the 3 silver screws underneath that connect the keyboard to the computer.

    • The screws are 4 mm long and the heads are 4 mm wide.

  19. Heg3IeAtVqxMxFy1
    Heg3IeAtVqxMxFy1
    dOXQKt3vN5JakscR

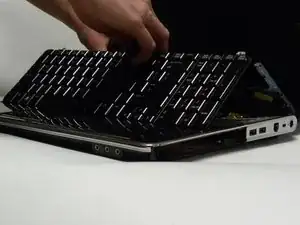

    • Set the switch cover down, resting on the computer.

    • Lift the keyboard from the base. It will still be attached to the system board.

  20. OdYsfCJP6nVZe62h
    OdYsfCJP6nVZe62h
    WgOKSi4mOmHaQTem
    wPGQoFlGwYW4EHSj

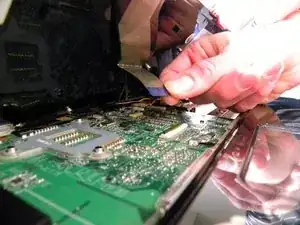

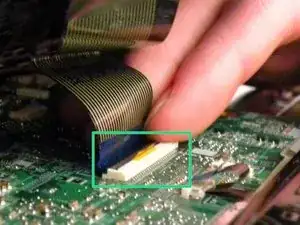

    • Tilt the bottom edge of keyboard up toward the display. Pull up the black tab to allow removal of the keyboard cable connector. Then pull the cable gently by holding the blue area to remove the cable entirely.

    • Place the keyboard and connector aside.

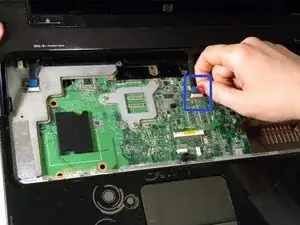

  21. cvjBtUtbJwrmwF4v
    • Disconnect the LED board cable from the connector on the system board by pulling the blue Mylar tab in the direction of the display (away from you).

    I want to know more for this step. Is this cable to supply touch butons of volume and wifi or which cable (which step) suplies volume and wifi?

    Thank you so much!

    Vershim -

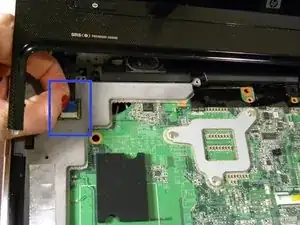

  22. tJyMf1cY3nUgRUeY
    • Disconnect the power button board cable from the connector on the system board by pulling the blue Mylar tab toward the display (away from you).

    • Place the switch cover aside.

  23. PXGLWLv2D3u2bAAO
    PXGLWLv2D3u2bAAO
    KBdZpURAqkPCDMcM

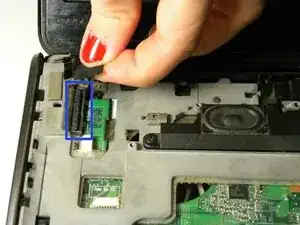

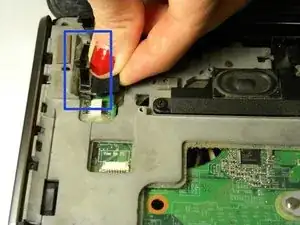

    • In the upper left-hand corner of the laptop, disconnect the display panel cable by lifting the Mylar tab upwards toward the screen to release from the connector.

    • The display panel cable can remain connected to the system board.

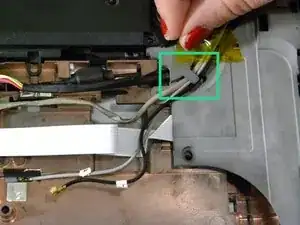

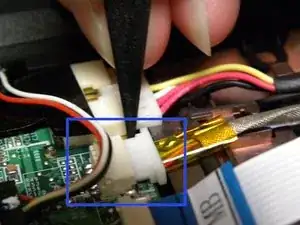

  24. 1QEnuYmPnepglPBB
    1QEnuYmPnepglPBB
    mWu4lbyJmCcHRJvp
    ooKGO5ofPQpFBxLv

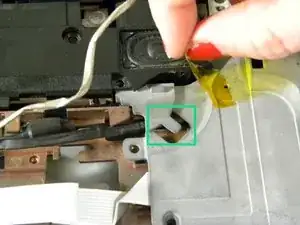

    • Lift up the yellow tape attached to reveal the webcam/microphone cable. Release the cables from under the grey clip built in to the top cover by gently pushing them away with the spudger.

    • Use the flat end of the spudger to detach the silver webcam/microphone cable from the system board by pulling the white connector away from the system board.

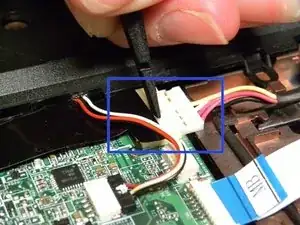

  25. dDn1tYftVQunWoS6
    dDn1tYftVQunWoS6
    t4pqTAUrY2RON1Ju

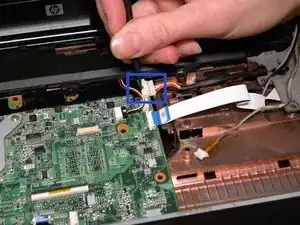

    • Disconnect the power connector cable by using the flat end of the spudger tool. Gently pry the cable until it completely disconnects, or you are able to grab the plastic piece, NOT the wires, to remove the cable.

    • This may be difficult. The pryer tool should touch only the plastic pieces.

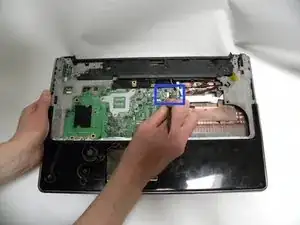

  26. yRsn6TY6AIlHLFvn
    yRsn6TY6AIlHLFvn
    Y3Fv6RYhmFtNm1k4

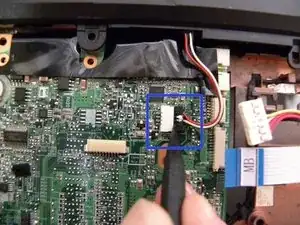

    • Disconnect the audio cable from the system board using the spudger tool.

  27. 6SWmDhPP4KPuJBnH

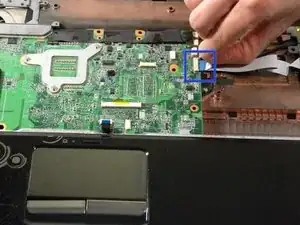

    • Disconnect the TouchPad cable from the system board by pulling the blue Mylar tab toward you.

  28. cBm6U1lbYbySHSvL
    cBm6U1lbYbySHSvL
    EnLAmoaJB2xodUvU

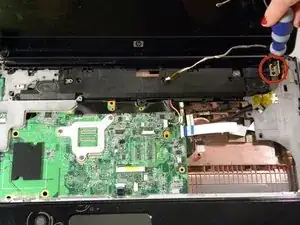

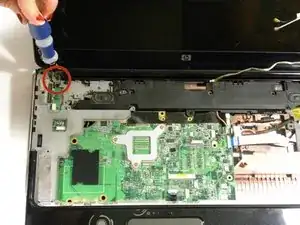

    • Support the display assembly while removing these next screws to avoid damage to the display screen.

    • Remove the 4 screws that fasten the display assembly to the computer. Carefully lift the display assembly off the computer and set aside.

    • The screws are 4 mm long and the heads are 4 mm wide.

  29. LsnBarNfiSDcRfV6

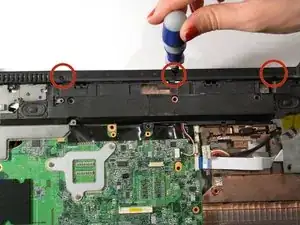

    • On the side of the computer farthest away from you, remove the 3 black screws from the top cover.

    • The screws are 4 mm long and the heads are 4 mm wide.

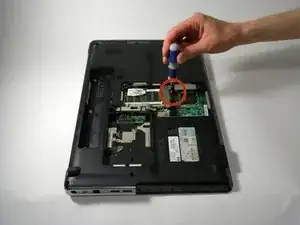

  30. n5DSfuwFYaVelTft
    n5DSfuwFYaVelTft
    UDOfCNZnNeVDNNyf
    • Turn the computer over so the bottom is facing up and the battery bay is facing away from you.

    • Remove the screw directly above the Intel card next to the TV symbol.

    • The screw is 7 mm long and the head is 4 mm wide.

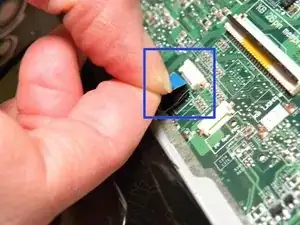

  31. g2NZvS3qFL3bSbiW
    • Disconnect the TouchPad cable from the system board by pulling the blue Mylar tab toward you.

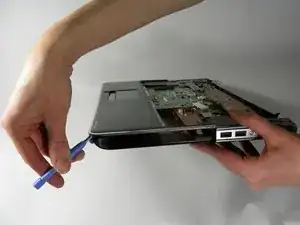

  32. XKSaZWy3iqXck4nY
    XKSaZWy3iqXck4nY
    6onMbiVDK3BJwCDf
    OOCwc2O6urmjLlng

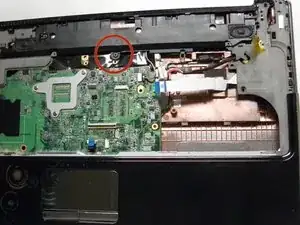

    • Starting in the optical drive area, slide the plastic opening tool under the top cover, prying up each side to loosen it from the computer.

    • Remove the screw attaching the cover to the system board.

    • The screw is 4 mm long and the head is 5 mm wide.

    • If you are having a hard time removing the cover, turn the computer over to ensure you removed all screws as mentioned in previous steps.

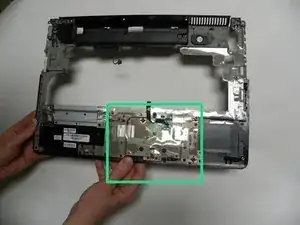

  33. iXnGh36DKZ1iSUVP
    • Now that the top cover is removed, check for debris or food particles that may have become trapped underneath the top cover's TrackPad button area.

    • Optional: Use compressed air to clean out dust and debris.

    • If the TrackPad button is broken, you will need to replace the entire top cover piece purchase and install HP spare part number 518789-001.

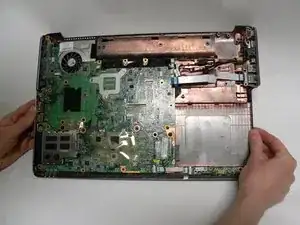

  34. CfiVaa3pRrbXeCap
    CfiVaa3pRrbXeCap
    hBgJkyLSPa6Vl3gt
    • Orient the computer so that the display assembly area is facing away from you.

    • Disconnect the modem cable from the green modem module by using your thumb and forefinger to free the black connector from the modem module.

    • You may need to move the modem cable back and forth several times to release it.

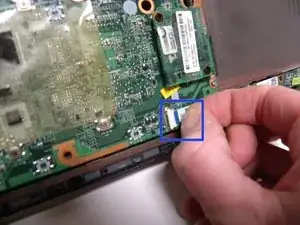

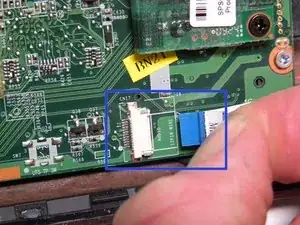

  35. 6Wui6UsMycZXBSCR
    6Wui6UsMycZXBSCR
    XYFMjgHyRfBKyyn2
    • On the side facing closest to you, pull right on the blue tab of the audio/infrared board cable to release from the connector on the system board.

  36. NgIY6jhHtqONj1cS
    • Remove the black screw on the bottom right corner of system board.

    • The screw is 7 mm long and the head is 4 mm wide.

  37. cmhPfqGMCe4HJ3Ce
    cmhPfqGMCe4HJ3Ce
    BcfcosHXuDVfQBOg

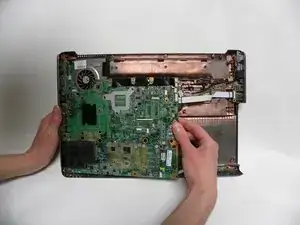

    • Holding the right side of the system board at the optical drive area, lift the right-side edge up at an angle. Continue lifting the board up and slide it out at at angle to remove.

    • Set the outer cover aside.

  38. GKOPQnX46wiyvwFv

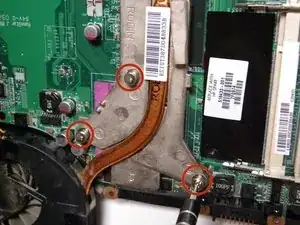

    • Turn the system board over, and unscrew the three silver screws attached to the fan.

    • The screws will not come all the way out.

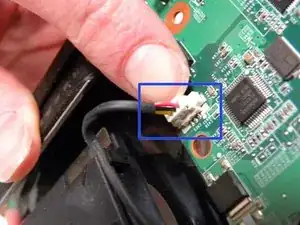

  39. dnnlUEvRBQibOgPA
    dnnlUEvRBQibOgPA
    24dZEhwjG6FsHVBT

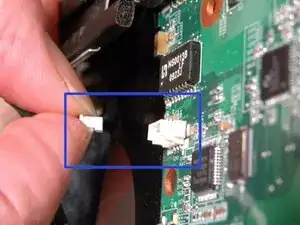

    • Disconnect the connector from the system board by pulling the white tab with your thumb and forefinger.

    • Set the system board aside.

  40. H6LQ1PSXxGZlkZtN
    H6LQ1PSXxGZlkZtN
    blCFsU6SG5kBrNj1

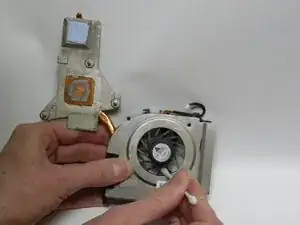

    • Carefully clean the fan using cotton swabs dipped in rubbing alcohol to lightly sweep away dust and debris.

    • If you need to replace a broken fan, purchase and install HP spare part number 512830-001.

Abschluss

To reassemble your device, follow these instructions in reverse order.
