HP Pavilion dv6-1245dx Hard Drive Replacement

Geschrieben von: Ella
  • Kommentare: 0
HP Pavilion dv6-1245dx Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

1 - 2 Minuten

Einleitung

  1. fQCcO6OSwCLSQZgm

    • Unplug the charger and remove the battery.

  2. lcKHmtB6VSPDQDXL

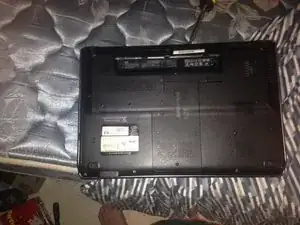

    • Flip over the laptop.

  3. DXtKUyHjQgNY4Zrv

    • Remove the Hard Drive cover screws with a Phillips #1 screwdriver.

    • The screws will not come all the way out

  4. 5He46gPqLfOssmTw

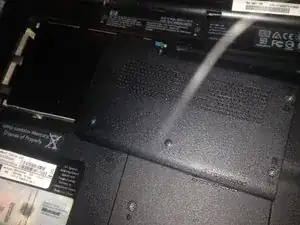

    • Remove the Hard Drive cover.

  5. YXHShgHOgbJqrl5q

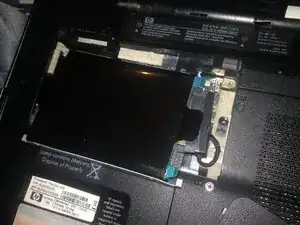

    • Remove the SATA cable from the hard drive, then remove the hard drive.

  6. P6qjYuIStk4gkPLJ
    P6qjYuIStk4gkPLJ
    ZOypV32XKYc3X2c2

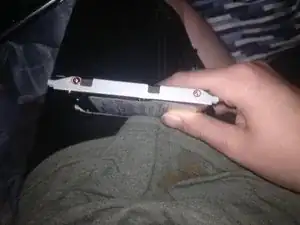

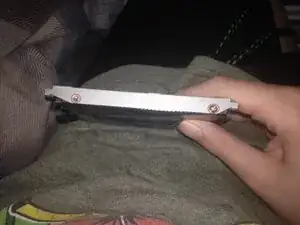

    • Remove the screws from the hard drive enclosure.

  7. byFtuhRopsPjsOTY

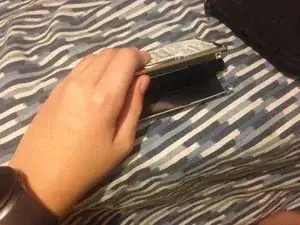

    • Remove the Hard Drive from the enclosure

Abschluss

To reassemble your device, follow these instructions in reverse order.
