HP Pavilion dv6-1245dx RAM Replacement

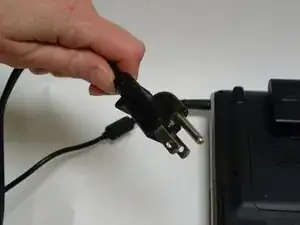

Shut down the computer and unplug it from the outlet.

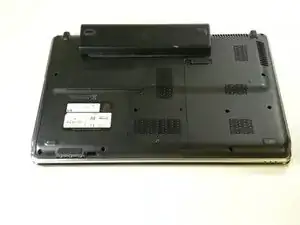

Turn the computer upside down.

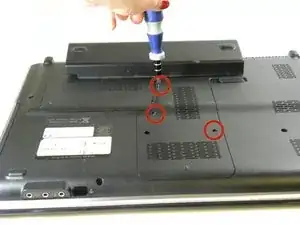

Loosen the three screws from the memory module compartment cover

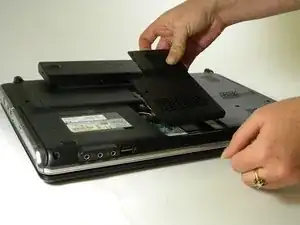

Remove the memory module compartment cover.

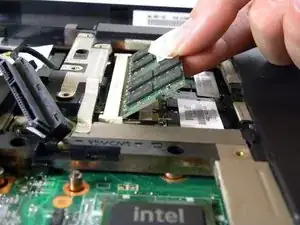

Remove the first memory module by spreading apart the two silver retaining tabs, using your thumb and index finger.

Pull and lift the green memory module upward at a 45-degree angle, and then pull the memory module out of the computer.

To replace the memory card, insert the card at a 45-degree angle, then push into slot.

Push down gently so the silver retaining tabs click back into place.
