HP Pavilion dv6-2158nr RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The random access memory (RAM) stores temporary data for programs to use while they are running. Some programs use a lot of memory so it may be useful to replace RAM with ones with more memory on them.

  1. TpSt1XnCoQUXKOy1
    TpSt1XnCoQUXKOy1
    BQDldbFieUMgOacu
    D5eZcBuQNGCODaQA

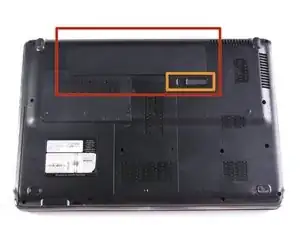

    • Locate the battery on the bottom side of the laptop.

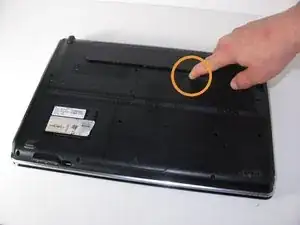

    • Slide the release switch and the battery will pop out.

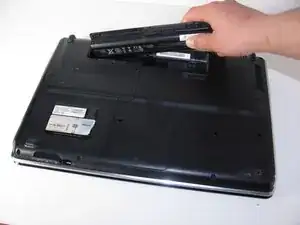

    • Remove the battery

  2. KLhpUQklaHpkdVpQ

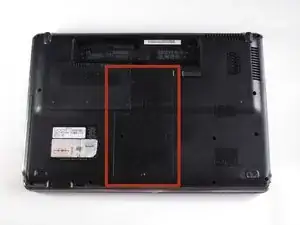

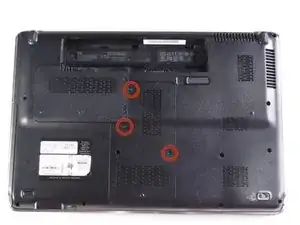

    • Using the Phillips #1, loosen the three 7mm captive screws that secure the memory module cover to the computer.

  3. NAXdNIEIoXnDpnMV
    NAXdNIEIoXnDpnMV
    cuJCof1MLb23pYfq
    24vuyVKHr5aqVoqW

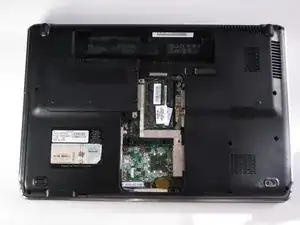

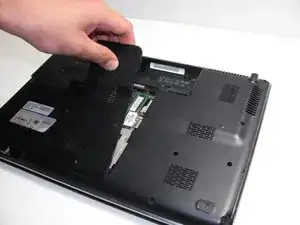

    • Remove cover and expose the memory module by lifting the cover up like its on a hinge.

  4. 5kHAGEbJDYbeHZZV
    5kHAGEbJDYbeHZZV
    Ja4uPFVY4PelcTI5
    4AhhQtbFKPrwDeYI

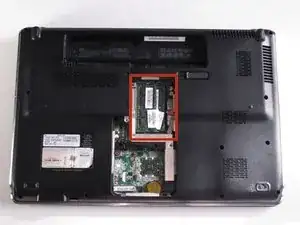

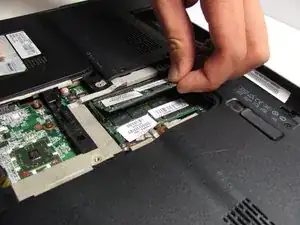

    • Locate the release tabs on both sides of the RAM.

    • Use non-conductive pointing tool or fingers to prevent static build up and damaging components.

    • Pull the metal tabs away from the memory to release it.

    • Pull RAM away from clips to remove from device

    • Repeat for second RAM if necessary

Abschluss

To reassemble your device, follow these instructions in reverse order.
