HP Pavilion dv6-6180us Screen Replacement

Geschrieben von: michelle pulido
  • Kommentare: 0
HP Pavilion dv6-6180us Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

27

Zeitaufwand

Keine Schätzung

Einleitung

If you have broken your screen or your screen has black damage to it, you may want to replace your screen.

  1. OOWvVtNbUPKeNAgy

    • Turn off and unplug the device before starting.

    • Flip your device over so the bottom panel is facing up.

  2. gFusmwaBDLTRvXdi

    • Slide the lock switch to the right.

    • The panel will pop open at the top corner.

  3. NXbSmCKakVitT2pa

    • Use the plastic opening tool to remove the back panel.

    • Some force may be required to remove the panel from the case. Use caution when prying to avoid breaking the panel or the plastic tabs securing it in place.

  4. 3xUbMTNrd65p6Yyn

    • Use the PH 1 screwdriver to remove the four 3.5 mm screws securing the hard drive.

  5. kuknPDGIOuESBOJ6

    • Lift the corner bracket to remove the hard drive.

  6. RJ65iDQU21uwaMCs

    • Unplug the hard drive wire to detach the hard drive.

  7. g34P1AXuchr5eQJX

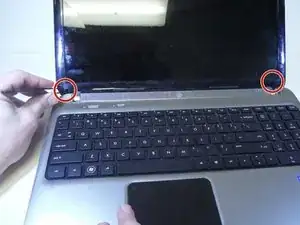

    • Using tweezers, grab the top and bottom while rocking back and forth to pull rubber plug out.

    • Cover is glued into place so gently pick at the edge before removing.

  8. wdA3IjLtZlANMGZx

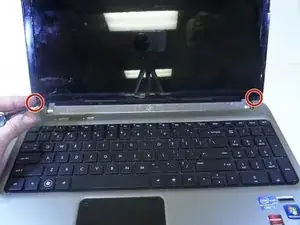

    • Unscrew two 6mm screws using PH1 screwdriver.

  9. UuKvllgAJmNYK1JL

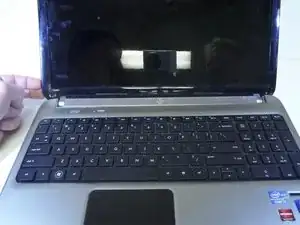

    • Pry the left lower corner with fingers.

  10. R11MfoTTpSdkPLqP

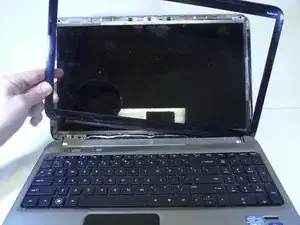

    • Remove screen frame.

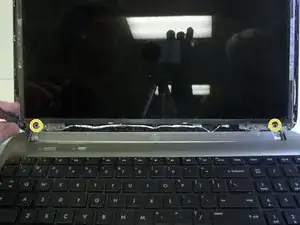

  11. suGA3eEKDHZYGX3r
    suGA3eEKDHZYGX3r
    3mjltChjGgrNnZHB

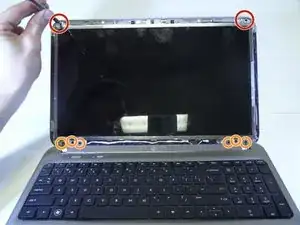

    • Unscrew two 3mm screws using PH 1 screwdriver

    • Eight 6mm screws using PH 1 screwdriver.

    • Use PH 000 screwdriver to remove two 4mm screws.

  12. pL1V3c463hRsWPVn

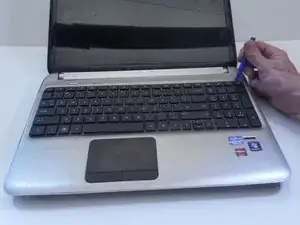

    • Pry open the keyboard using plastic opening tool starting from the top.

    • Lift up keyboard gently because a silver ribbon is still attaching it to the laptop.

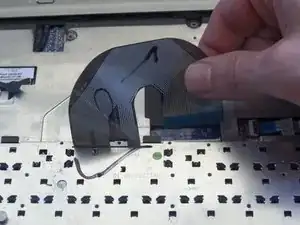

  13. wYKOeTfV233xCTUB
    wYKOeTfV233xCTUB
    thLEPkhvDVfPFb1K
    aSXbGxHAEWGHtuVJ

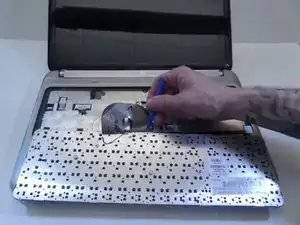

    • Place keyboard upside down.

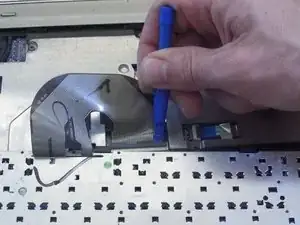

    • Lift up plastic cover over keyboard connector cable.

    • Pull ribbon cable up away from keyboard to completely remove.

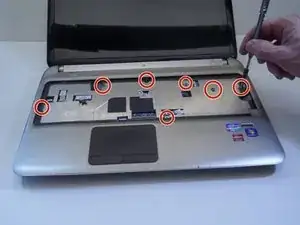

  14. x54k2bIgiODITJtf

    • Remove seven 4mm pannel screws with PH 1 screwdriver.

  15. T6IpuLJdKV6Smven

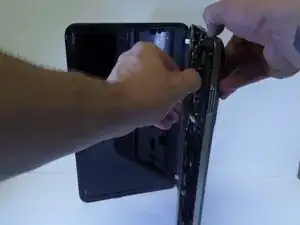

    • Place the computer on its side.

    • Separate top panel from bottom frame.

  16. YKrOW2ixklEaBrJZ
    YKrOW2ixklEaBrJZ
    EcyBqtLDCkZL1Rlv

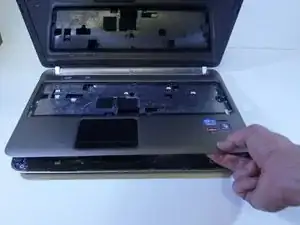

    • Pop open rest palm assembly.

  17. iES6WcAgZfHQC2DH

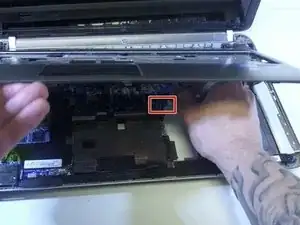

    • Pull ribbon to detach from bottom panel.

  18. n6EJRoDMIZAXOGTG

    • Remove two 5mm screws securing fan, using HP 1 screwdriver.

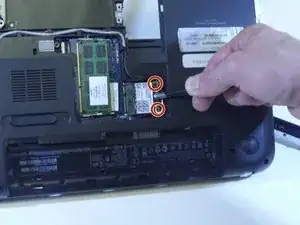

  19. WdrrSeGFFK5ZW4o1

    • Flip laptop over.

    • Remove two 4mm screws securing antenna using PH 1 screwdriver.

    • Pull antenna to the right to remove.

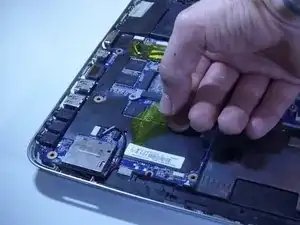

  20. EGJbU3vSKiv41wML

    • Flip laptop side up.

    • Pull off yellow insulating tape.

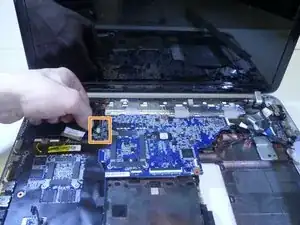

  21. p3sYLlV4aIQEtZrp
    p3sYLlV4aIQEtZrp
    usUAIbZfMyIpcUsj

    • Grab tab on left top corner and remove black wire.

    • Remove white input attachment.

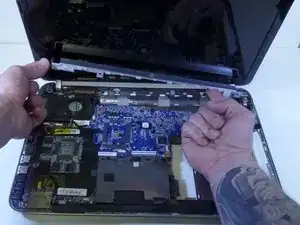

  22. N5uYATO6ekACcNSA

    • Lift up speaker.

  23. Usjd22ZRwIffKekf

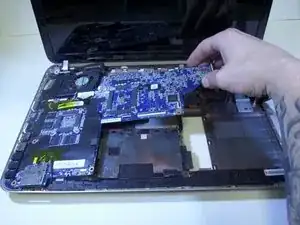

    • Hold the motherboard and pull to the right.

    • The plugs on the left may be difficult to snap out.

  24. tV4RdhLCyEDZDucM

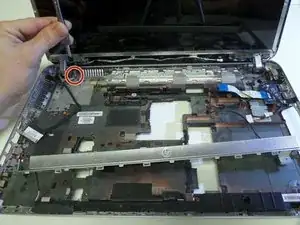

    • Remove a 4mm screw securing wire attachment using PH 1 screwdriver.

  25. oLMCG3sNu1DL1mTj

    • Remove two hinge covers.

  26. oTRhmcIJi1YN2MUk

    • Unhook the antenna wire from behind hinge.

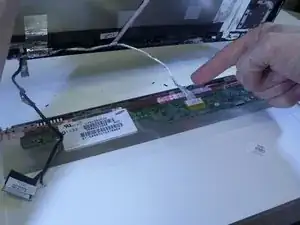

  27. C4RUtiIhZpBF23Ff

    • Lay screen face down.

    • Detach silver wire from screen

Abschluss

To reassemble your device, follow these instructions in reverse order.
