HP Pavilion dv7-1285dx RAM Replacement

Geschrieben von: Jesse Quisido
  • Kommentare: 0
HP Pavilion dv7-1285dx RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will explain how to properly remove and replace the RAM of a HP Pavilion dv7-1285dx.

  1. xTSL3AG4tbeYa4ZX

    • Ensure the device is powered down and unplugged.

    • Turn the device upside down with the battery compartment facing you.

    • Slide the black slider to the right and lift the battery out of its compartment.

  2. 6V4wPY6NB2IMPUNw

    • Locate and remove the six Phillips PM2.5×7.0 screws around the perimeter of the back plate.

    • These screws do not completely detach from the device when unscrewed.

  3. Fiw1i52SXki4B2yF
    Fiw1i52SXki4B2yF
    bYZsCQFNVosCVlVh

    • Use the plastic opening tool to lift up the back plate and set it aside.

  4. yn2MmKH6NOfKNYP2

    • Rotate the device 90 degrees to the left.

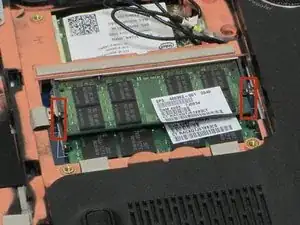

  5. mpUQov5wvABE1YPC
    mpUQov5wvABE1YPC

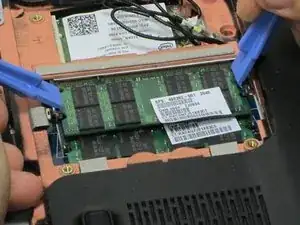

    uaIFYVGkrh1rKM65
    u3wlXMx3pJTFH4qP

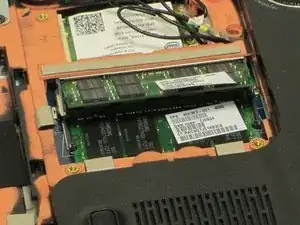

    • Locate the grey clips on the side of the RAM and pull the grey clips away from the RAM using the plastic opening tool.

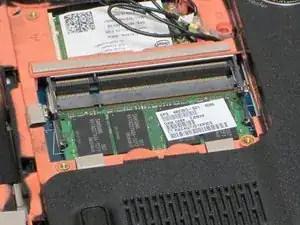

  6. umeiJE1Tk13b2WiX
    umeiJE1Tk13b2WiX

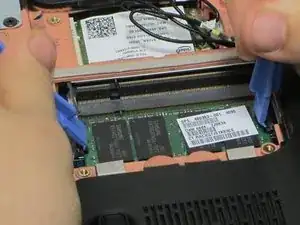

    j1UyPY5IjePHGPsH
    kOLnbLNZ6RVAZrX2

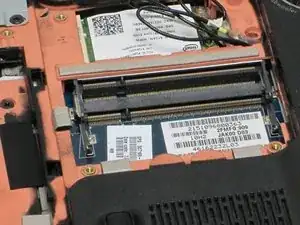

    • Unplug the RAM.

    • Repeat step 6 to remove the second piece of RAM.

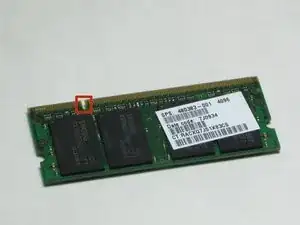

  7. KZaVjgEVHeVBYBGj
    KZaVjgEVHeVBYBGj

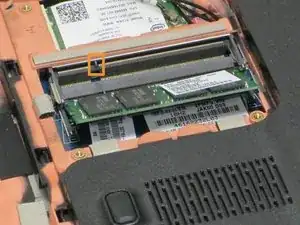

    Vor3Nlgt3h6eWoTm

    • These steps are important in the replacement of the RAM, they will assist in ensuring the device is not damaged.

    • Align the notch in the new RAM with the peg on the plug

    • Ensure the RAM is fully inserted into the plug at a 45 degree angle such that the notch of the RAM lines up with the peg on the plug

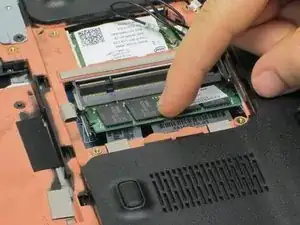

  8. dOOSD6V5kkdoUtMY
    dOOSD6V5kkdoUtMY

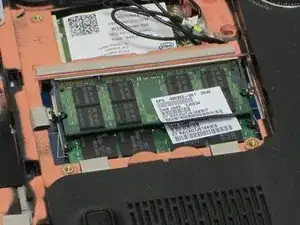

    Yeo5Cq5W2mrVgguM

    • Push down gently on the RAM until the grey clips click.

    • Repeat steps 7 and 8 to replace the second piece of RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
