HP Pavilion dv7-1285dx Wifi Card Replacement

Geschrieben von: Anmol Mathur
  • Kommentare: 0
HP Pavilion dv7-1285dx Wifi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 Minuten

Einleitung

  1. xTSL3AG4tbeYa4ZX

    • Ensure the device is powered down and unplugged.

    • Turn the device upside down with the battery compartment facing you.

    • Slide the black slider to the right and lift the battery out of its compartment.

  2. 6V4wPY6NB2IMPUNw

    • Locate and remove the six Phillips PM2.5×7.0 screws around the perimeter of the back plate.

    • These screws do not completely detach from the device when unscrewed.

  3. Fiw1i52SXki4B2yF
    Fiw1i52SXki4B2yF
    bYZsCQFNVosCVlVh

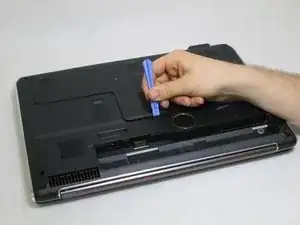

    • Use the plastic opening tool to lift up the back plate and set it aside.

  4. oaOkGY4BRlTEaKn2

    • Locate the wifi card to the right of the RAM.

  5. EEsxKMgYVhqSnZKm

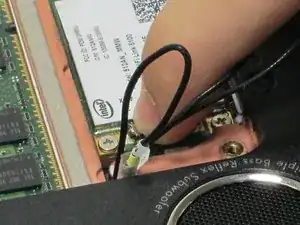

    • Unplug antenna cables 1 and 2 from their leads.

    • Antenna cable 3 is not used.

  6. lJSkcnOk35M2IQEi

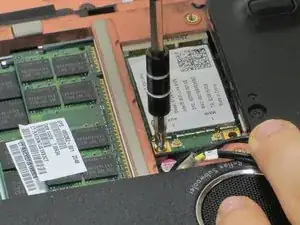

    • Remove the two Phillips head screws located on the battery compartment side of the wifi card.

  7. WTDF1afY6H4JugpH

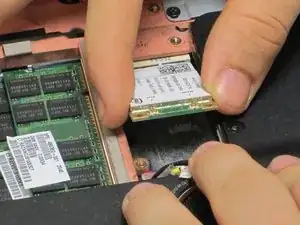

    • Gently lift the wifi card up to a 45 degree angle from the side with screws.

  8. PaMEaanKBPjPjpaY
    PaMEaanKBPjPjpaY
    SGNcHOIn45gSvP1X

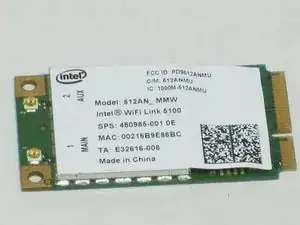

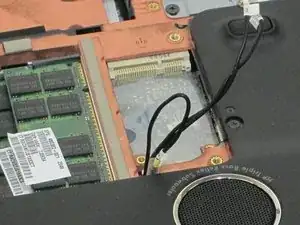

    • Unplug the wifi card.

  9. XNgG23BcHjbYOIuZ

    • These next steps are for installing your replacement wifi card. These steps are very important to ensure that you do not damage your device.

    • Fully insert the replacement wifi card at a 45 degree angle, ensuring that the notch on the card lines up with the peg on the plug.

  10. MuBxEXHAQEdTjt3J

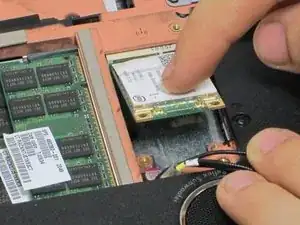

    • Gently push the wifi card down until the screws can be replaced.

  11. f6ftVlLJ2IGcyEGl

    • Connect the antenna cable 1 with lead 1 and connect antenna cable 2 with lead 2.

    • Wire 1 needs to be connected to lead 1 and wire 2 needs to be connected to lead 2.

    • Wire 3 and lead 3 are not used.

Abschluss

To reassemble your device, follow these instructions in reverse order.
