HP Pavilion dv7-1448dx RAM Replacement

Geschrieben von: Kirsten Gilliland
  • Kommentare: 0
HP Pavilion dv7-1448dx RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide provides instructions for replacing the RAM. This may be helpful if your laptop is experiencing sluggish system performance.

  1. RbhJNLLNhKe2sRAk

    • Make sure the computer is unplugged and turned off.

    • Place the computer front side down with the battery compartment farthest away.

  2. MKbvNLuMRJFloQj2
    MKbvNLuMRJFloQj2
    Gn4BPLqXdgjBjY1i

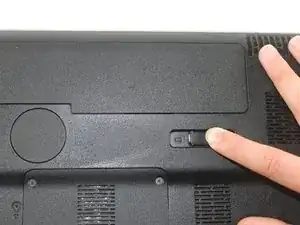

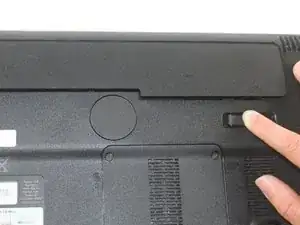

    • Slide the switch under the battery compartment to the left until the compartment opens. This may require some force.

  3. 4KRe1nwZ4XtoRXiI
    4KRe1nwZ4XtoRXiI
    RROYVHZYPZmJQY14

    • Lightly pry the battery upward to remove.

    • When reinserting the battery, match the latches along the backside of the battery with the corresponding slots in the computer in order to press it into place.

  4. xFUfqZZUypFXWwnN
    xFUfqZZUypFXWwnN
    GqCAtZbTXfIXFmDs
    kWRUCKXhOO5ZEtPv

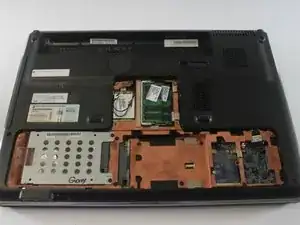

    • Remove the six Phillips PM2.5X6.0 screws with a Phillips #00 screwdriver.

    • Pry the back casing up and away from the rest of the laptop with the plastic opening tool.

  5. JMNvmBqtenGhvbP4
    JMNvmBqtenGhvbP4
    lvqSZMBVIQ3tAw1d
    HOFJOkTmaft6QTxw

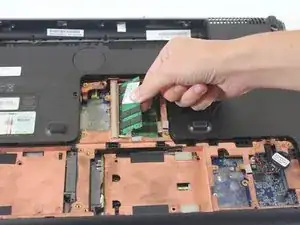

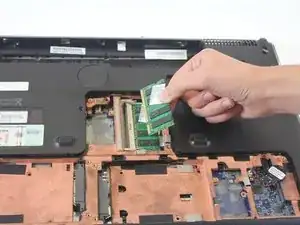

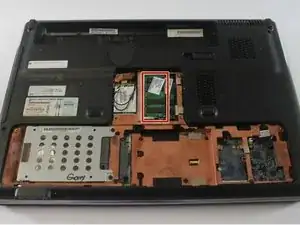

    • Remove the green RAM by prying it upward and pulling it away from its slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
