HP Pavilion dv7-4285dx Keyboard Replacement

Geschrieben von: Austin Sandel
  • Kommentare: 0
HP Pavilion dv7-4285dx Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

2 Minuten

Einleitung

This guide will describe the replacement of the keyboard of the HP Pavilion dv7-4285dx

  1. qF1KDZeDvXCqVaDT
    qF1KDZeDvXCqVaDT
    vpjVfyxWLnZax4lT

    • Slide the battery release switch to the left. The battery pack will then subsequently release.

  2. weAGCPtdn3gdHIJE

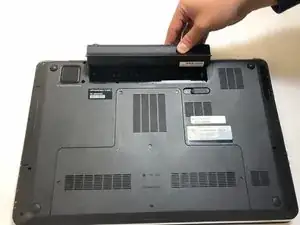

    • Remove the battery pack from the socket.

  3. JXtII5YktD65yKrH
    JXtII5YktD65yKrH
    yXiHUEU2pMNiBSH1
    Ea1AQHJXbaAwLGx2

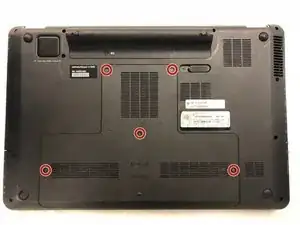

    • Unscrew the 5 black plate screws using a Ph#0 screwdriver.

    • During the removal process, the back plate will retain the 5 back plate screws.

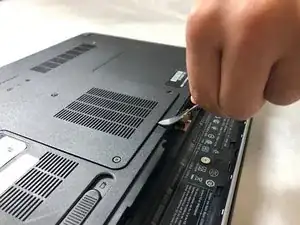

    • Use a metal spudger to carefully remove back plate.

  4. RvOLUtP3HlICEjGC

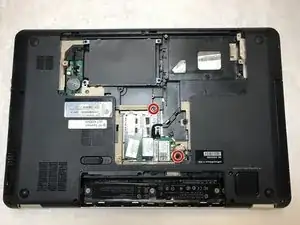

    • Unscrew the 7.2mm screws using a Ph#0 screwdriver.

  5. FbvVbMChlRMtvHYN
    FbvVbMChlRMtvHYN
    squN3s6gxfLHAtar

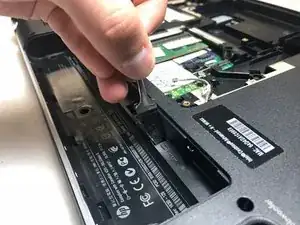

    • Push the keyboard release switch using the metal spudger.

  6. ZHTcKsUeArWGhTKT
    ZHTcKsUeArWGhTKT
    6bWF4rK2yqrPYbZo

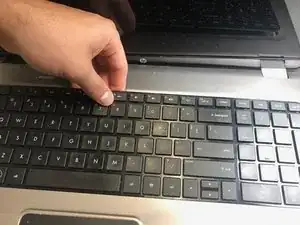

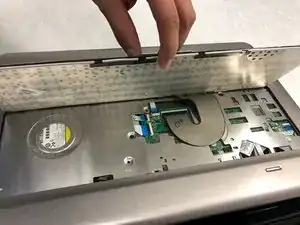

    • Lift up keyboard from its resting position.

  7. RmHugKf1U3qZpPEO
    RmHugKf1U3qZpPEO
    1Acrb4qKvCbDZhSW
    PBJKTeR3cSUYGDZT

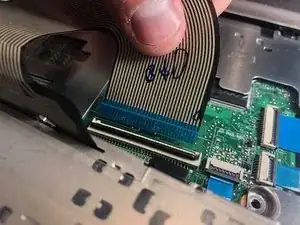

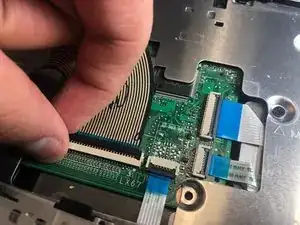

    • Lift up black tab holding ribbon cable.

    • Remove ribbon cable from motherboard.

  8. BVtUaWuJPrK2EfrW

    • Remove keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
